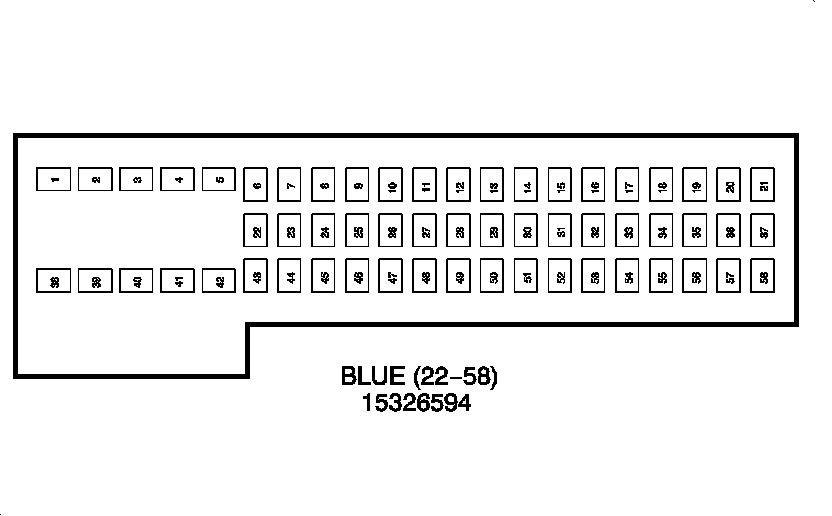

Transmission Control Module (TCM) C2



Automatic Transmission Internal Connector End Views

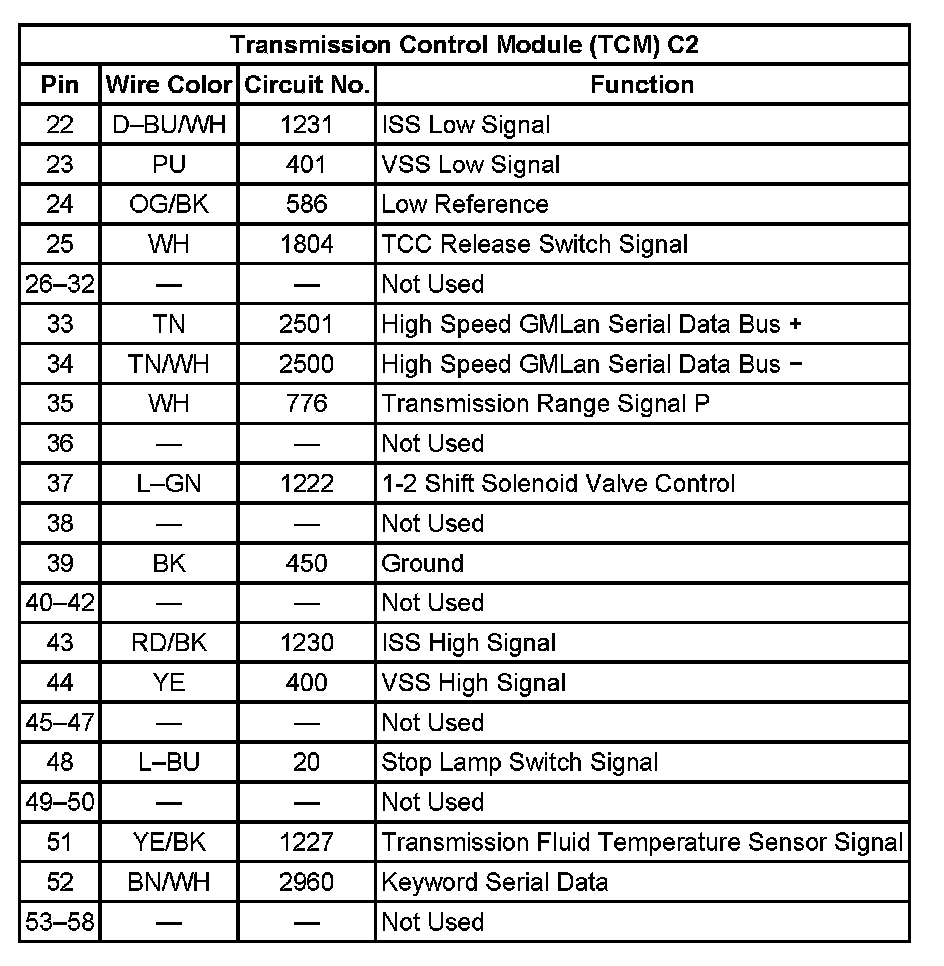

Transmission Control Module (TCM) C2

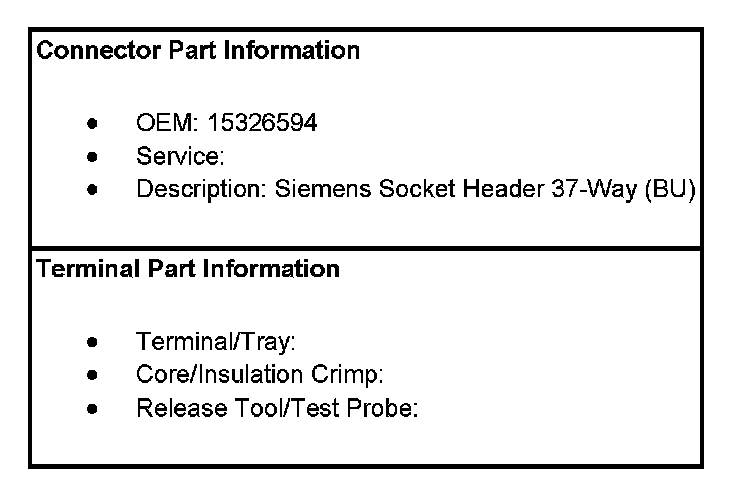

Transmission Control Module (TCM) C2:
