Heated Seat Control Module - C1

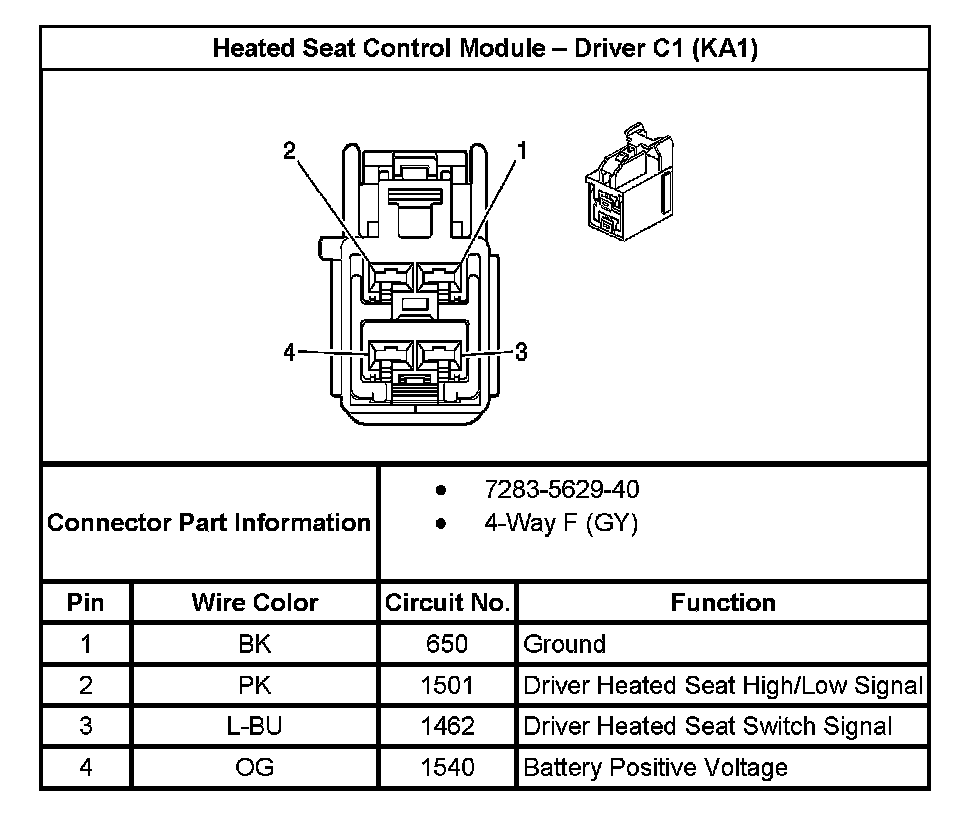

Heated Seat Control Module - Driver C1 (With RPO Code KA1):

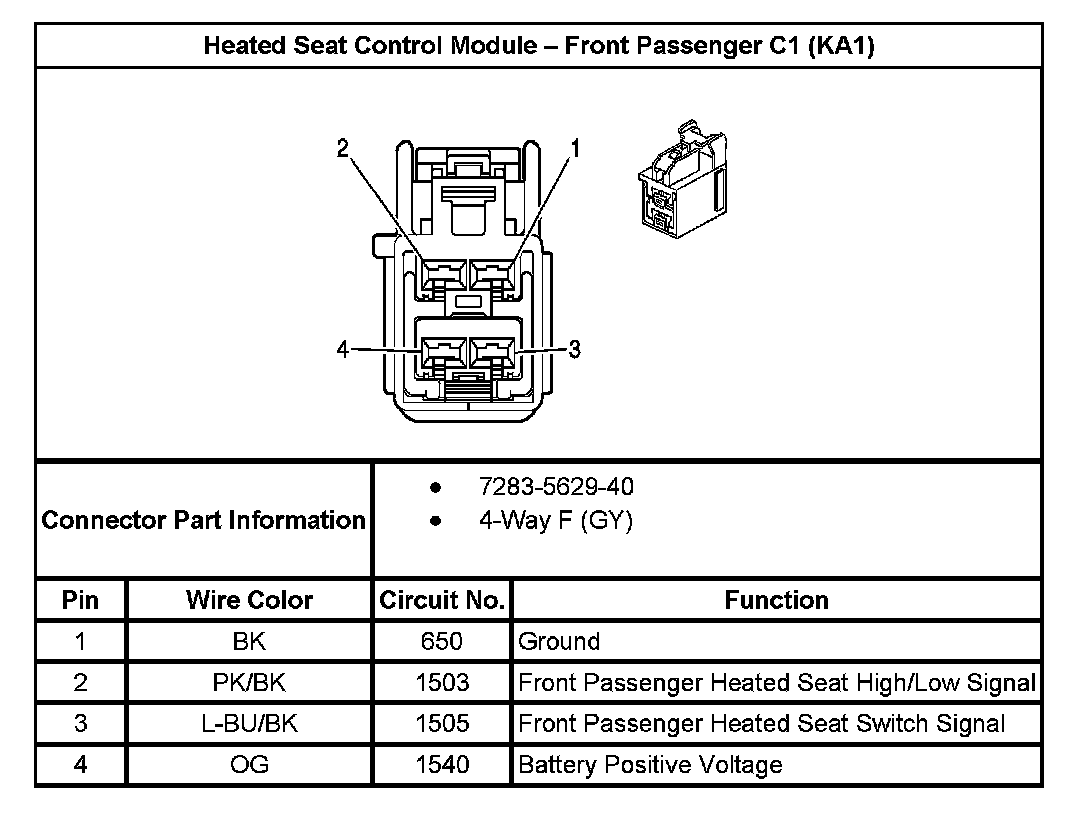

Heated Seat Control Module - Front Passenger C1 (With RPO Code KA1):
