Heated Seat Control Module - C2

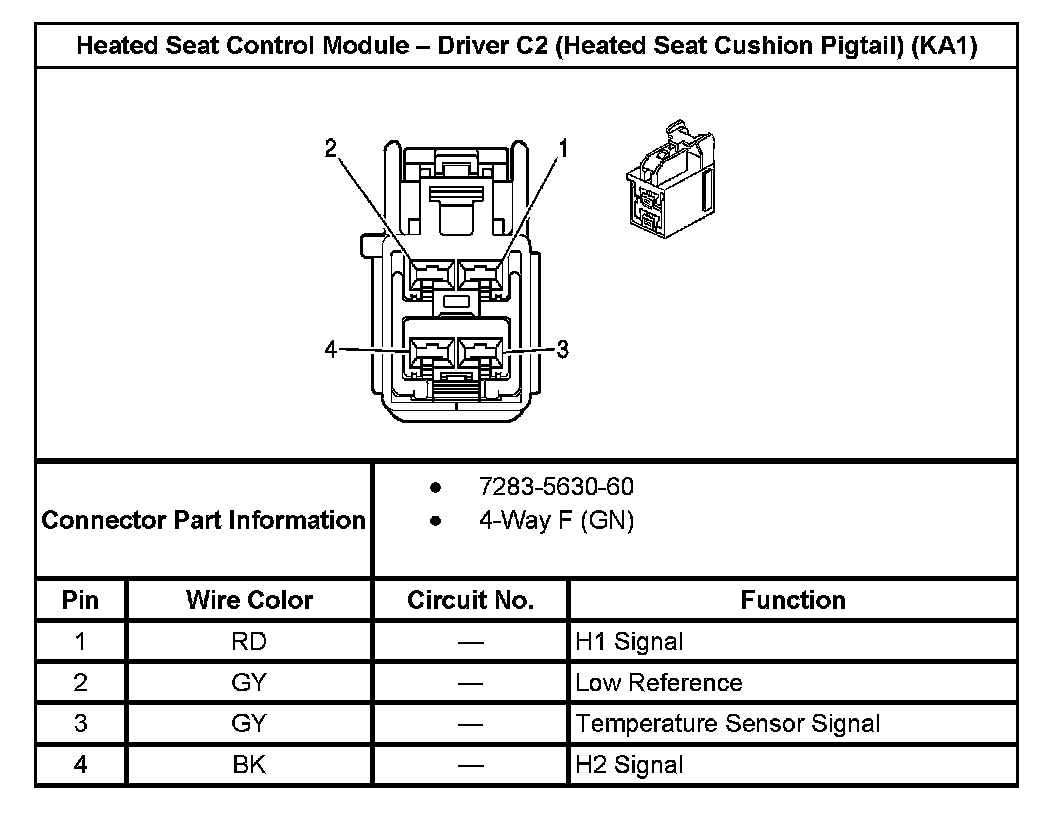

Heated Seat Control Module - Driver C2 (Heated Seat Cushion Pigtail) (With RPO Code KA1):

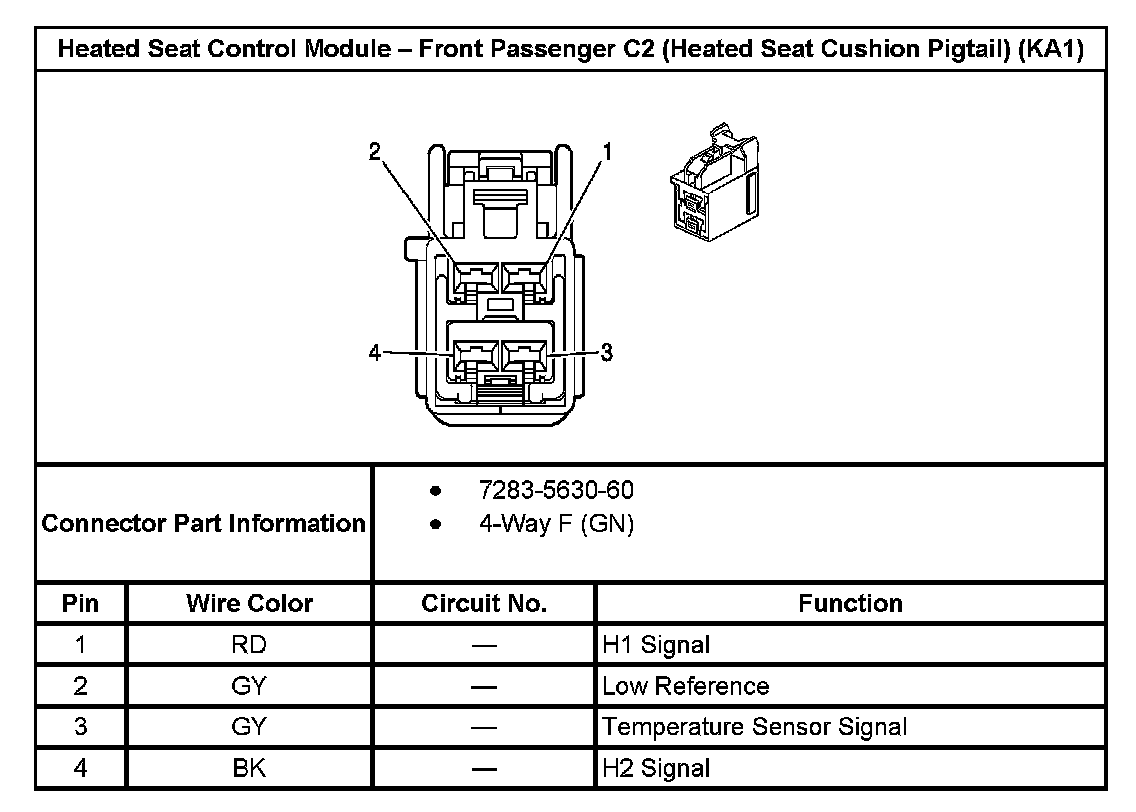

Heated Seat Control Module - Front Passenger C2 (Heated Seat Cushion Pigtail) (With RPO Code KA1):
