Heated Seat Control Module - C3

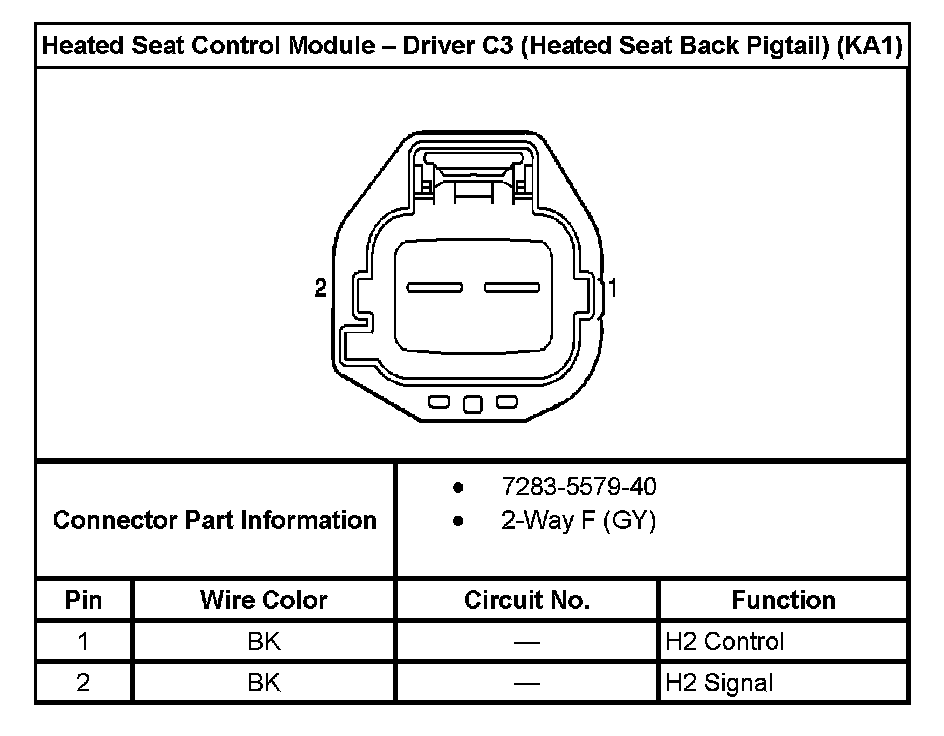

Heated Seat Control Module - Driver C3 (Heated Seat Back Pigtail) (With RPO Code KA1):

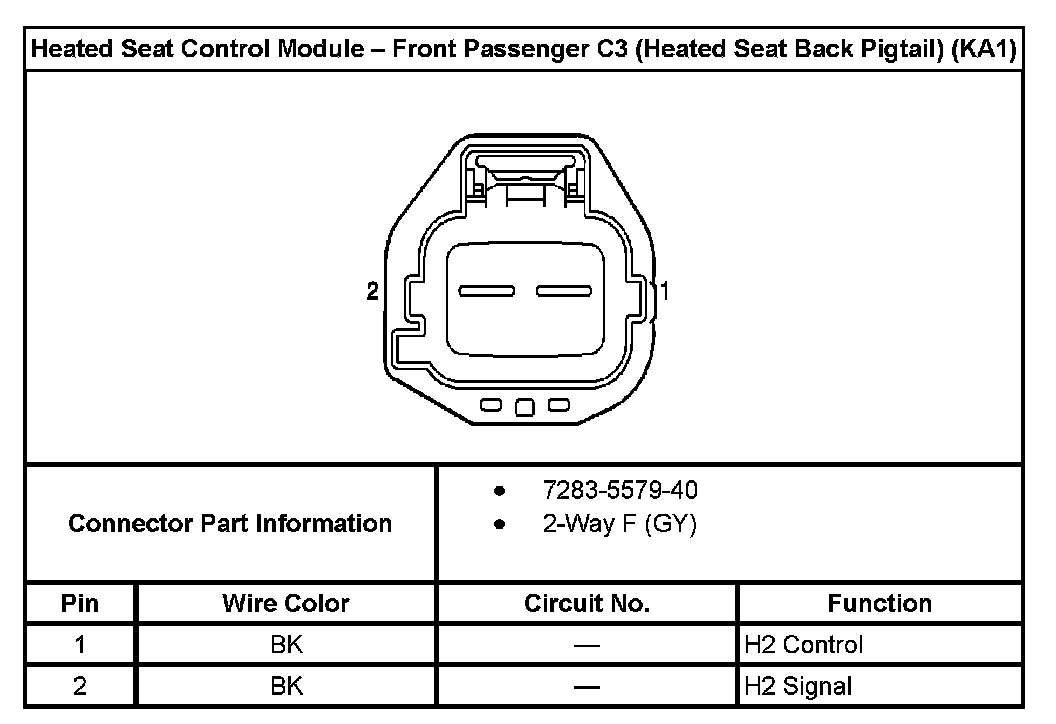

Heated Seat Control Module - Front Passenger C3 (Heated Seat Back Pigtail) (With RPO Code KA1):
