Air Bag Control Module

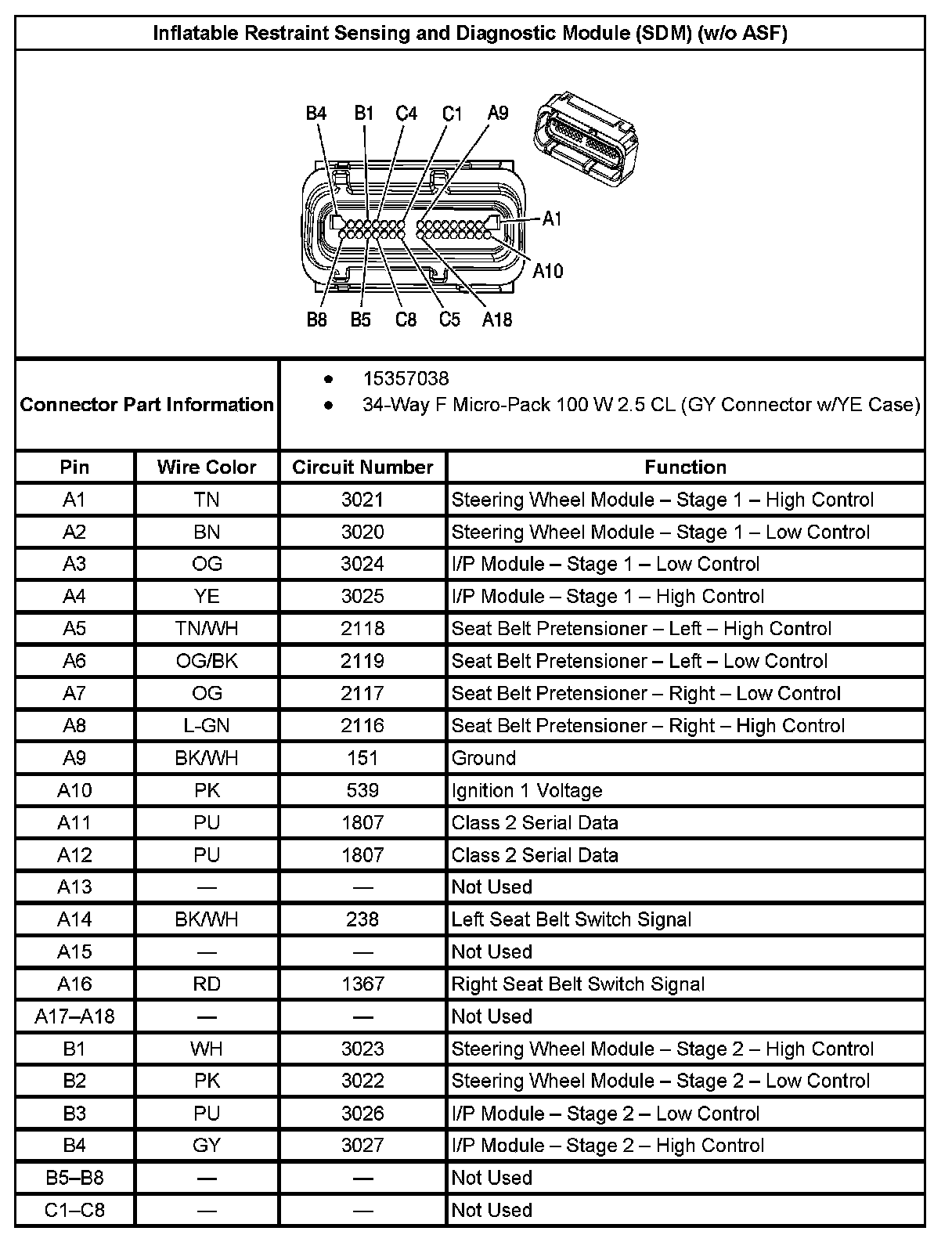

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Without RPO Code ASF):

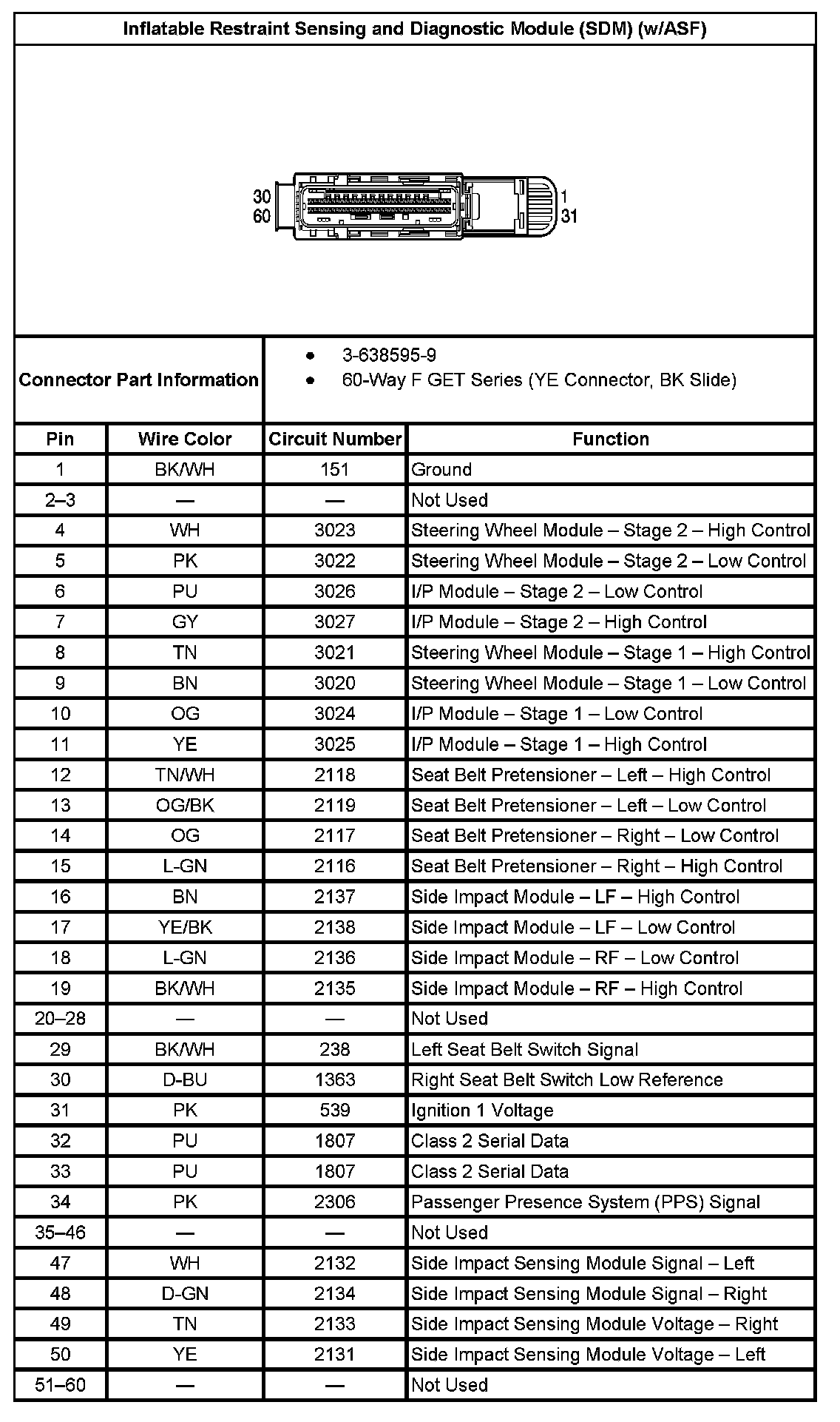

Inflatable Restraint Sensing And Diagnostic Module (SDM) (With RPO Code ASF):
