Inflatable Restraint Passenger Presence System (PPS) Module C2 (Inflatable Restraint Passenger Presence System (PPS) Sensor

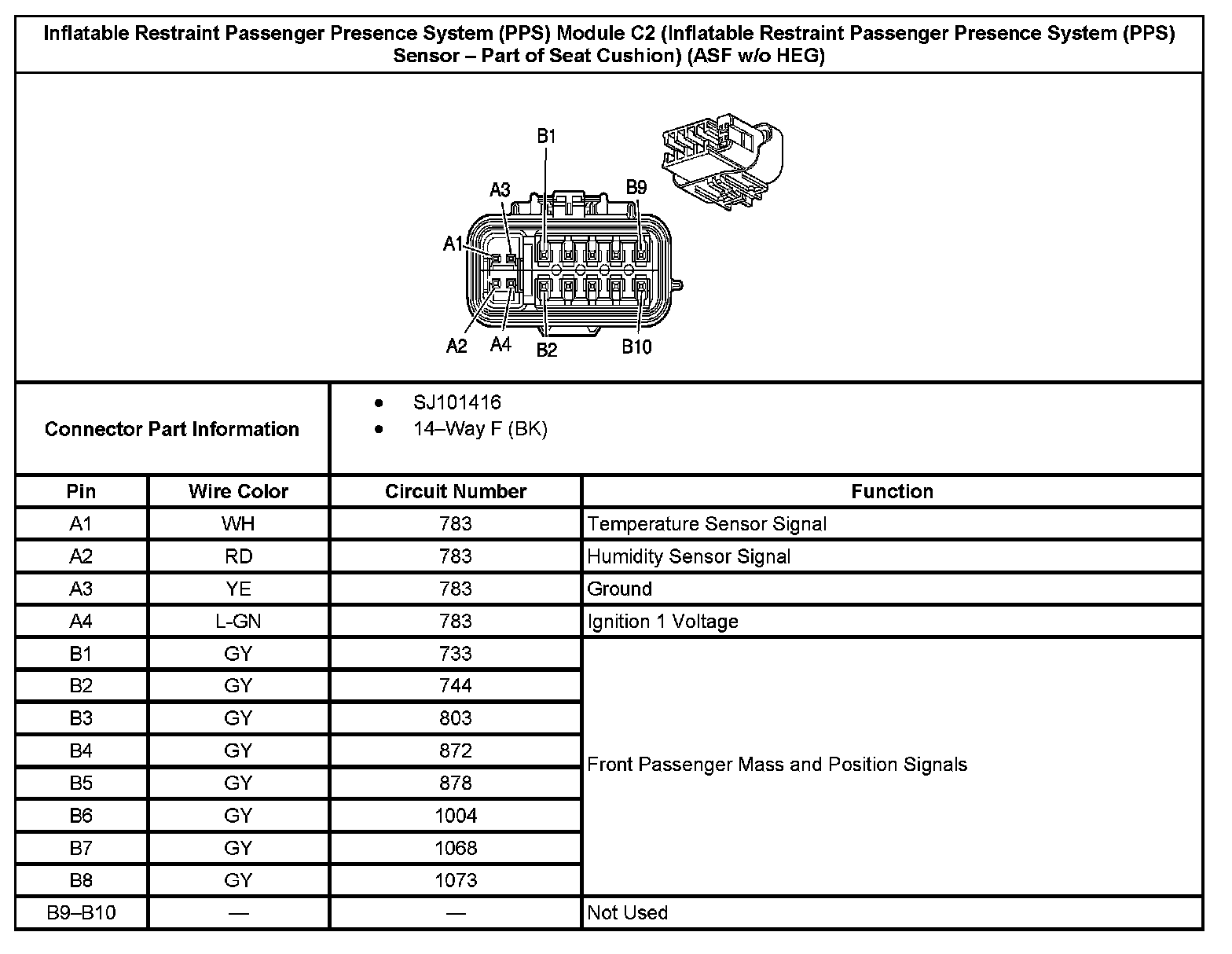

Inflatable Restraint Passenger Presence System (PPS) Module C2 (Inflatable Restraint Passenger Presence System (PPS) Sensor - Part Of Seat Cushion) (With RPO Code ASF Without HEG):
