Engine Control Module

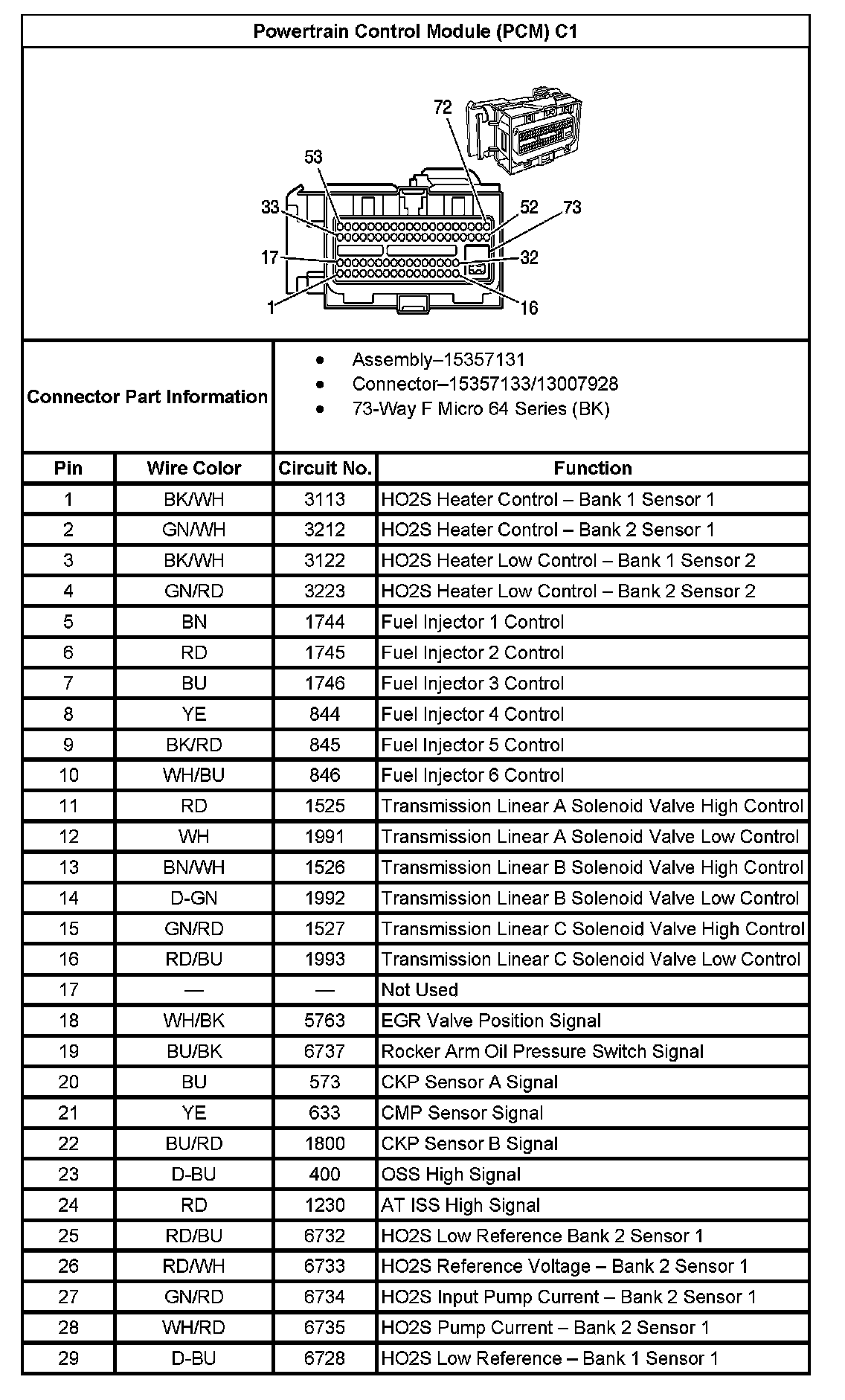

Powertrain Control Module (PCM) C1 (Part 1):

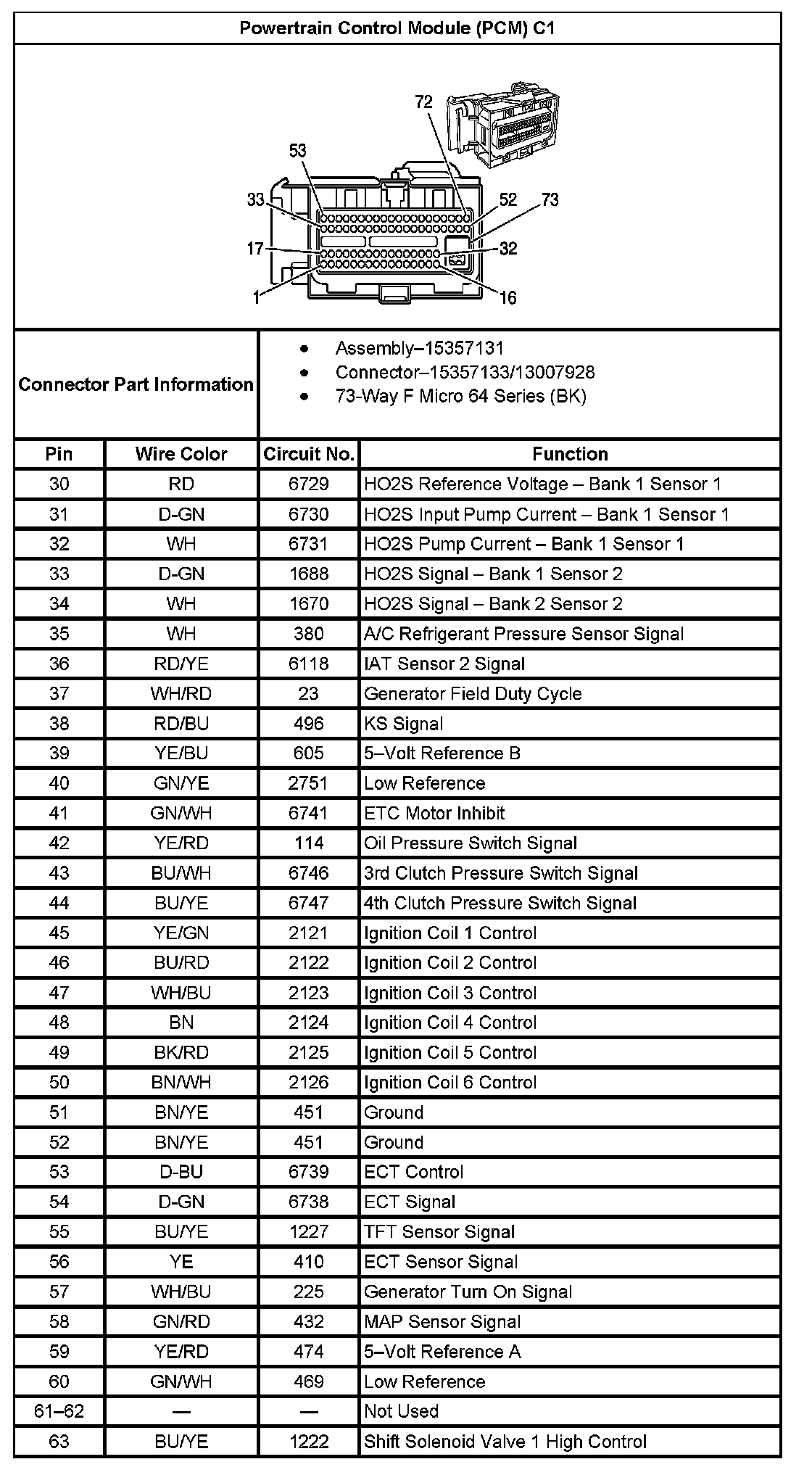

Powertrain Control Module (PCM) C1 (Part 2):

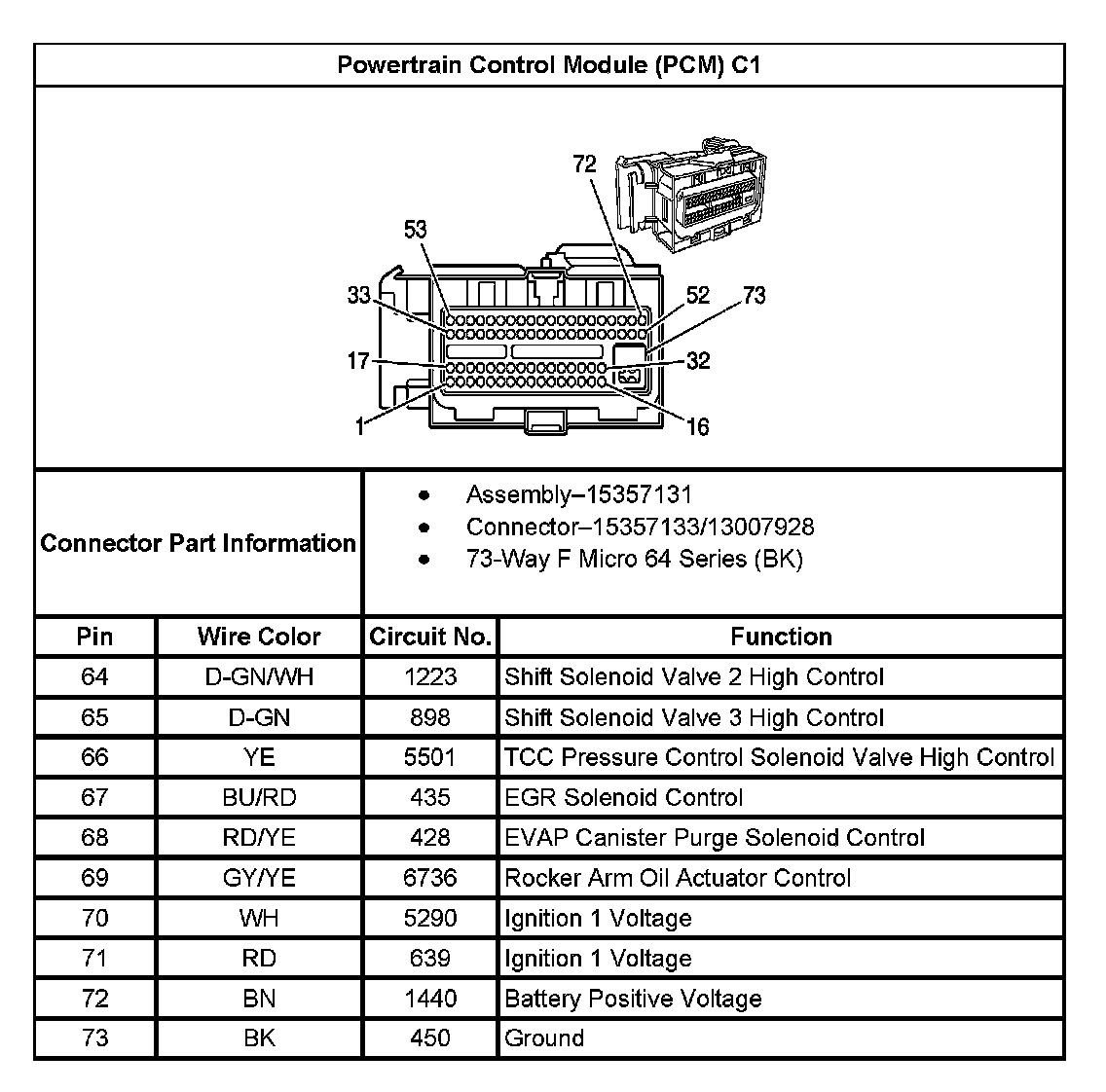

Powertrain Control Module (PCM) C1 (Part 3):

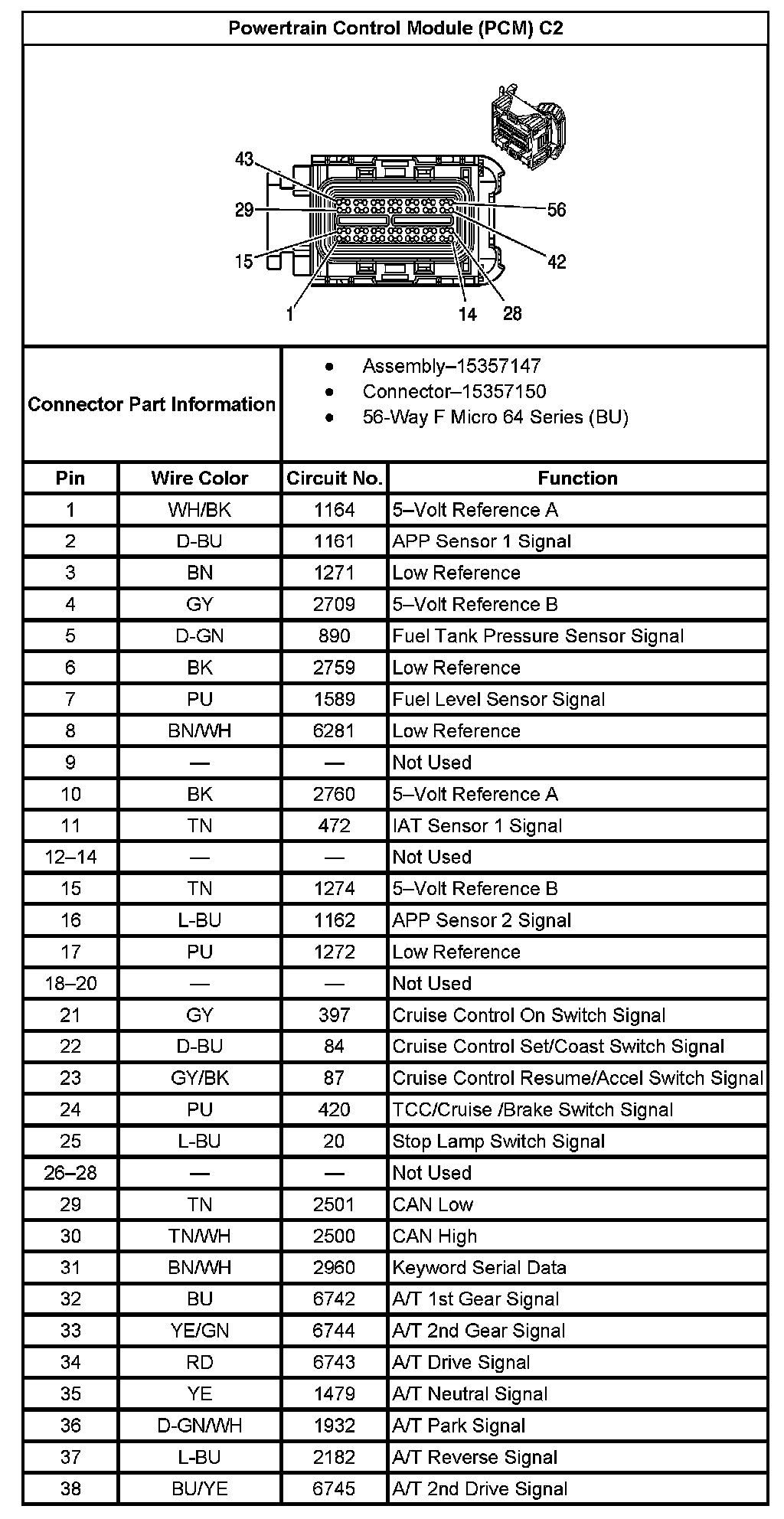

Powertrain Control Module (PCM) C2 (Part 1):

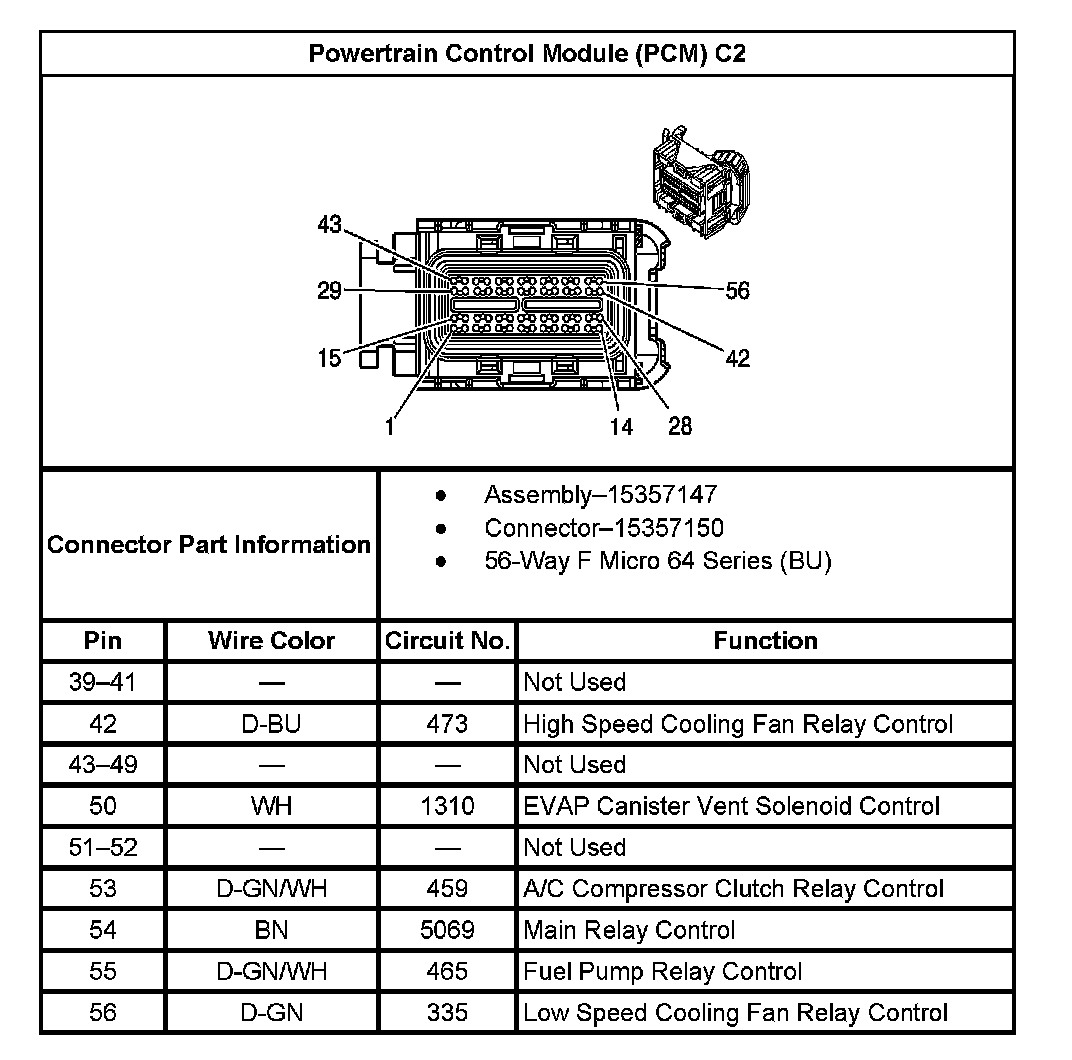

Powertrain Control Module (PCM) C2 (Part 2):
