Digital Radio Receiver (U2K) Wiring Schematics

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

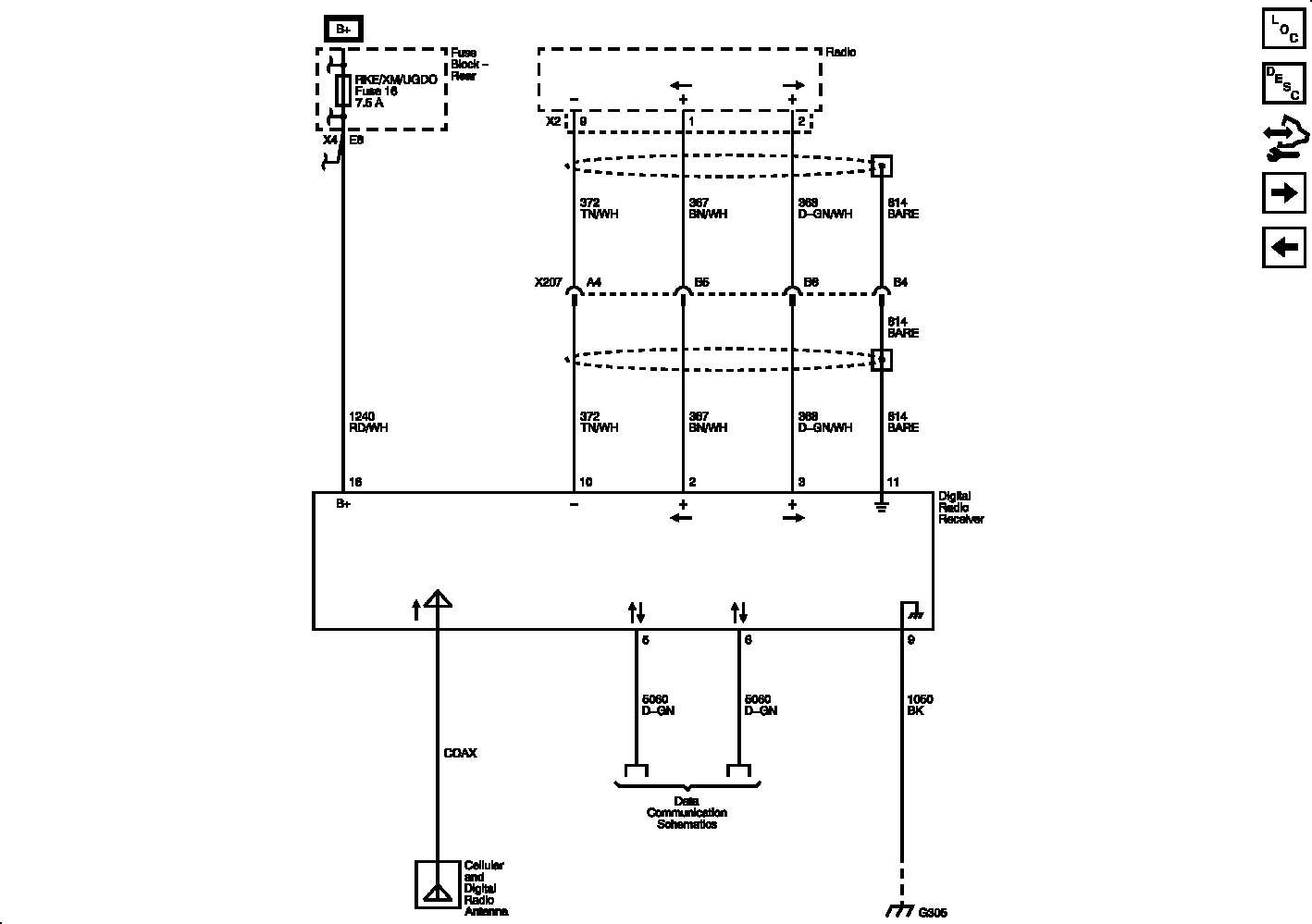

Fig 1: Digital Radio Receiver (U2K) Wiring Schematics
GM2582024Courtesy of GENERAL MOTORS COMPANY
