Radio/Navigation System Schematics

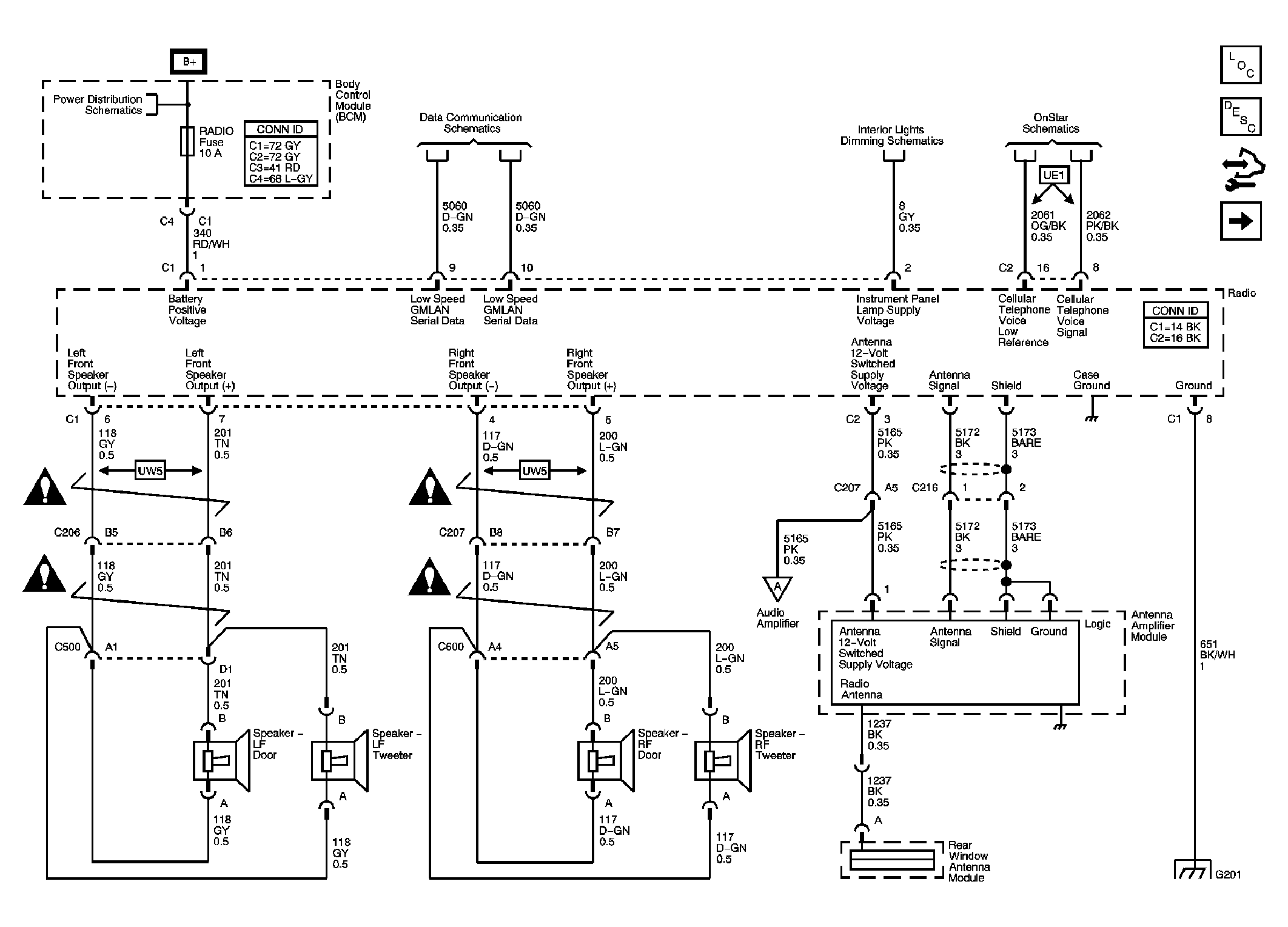

Fig 1: Power, Ground, Front Speaker, Antenna & References Schematic

Courtesy of GENERAL MOTORS CORP.

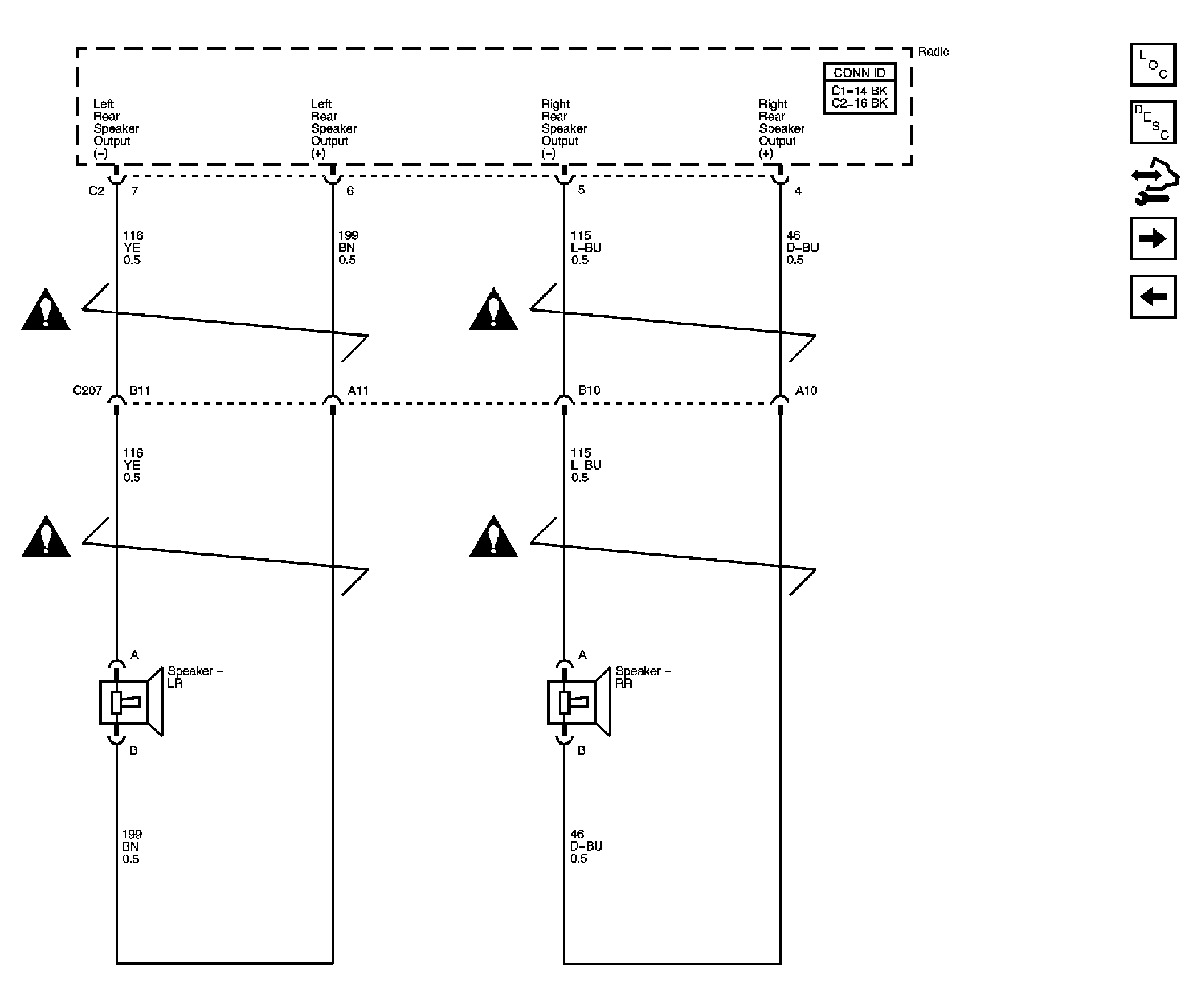

Fig 2: Rear Speakers (UW5) Schematic

Courtesy of GENERAL MOTORS CORP.

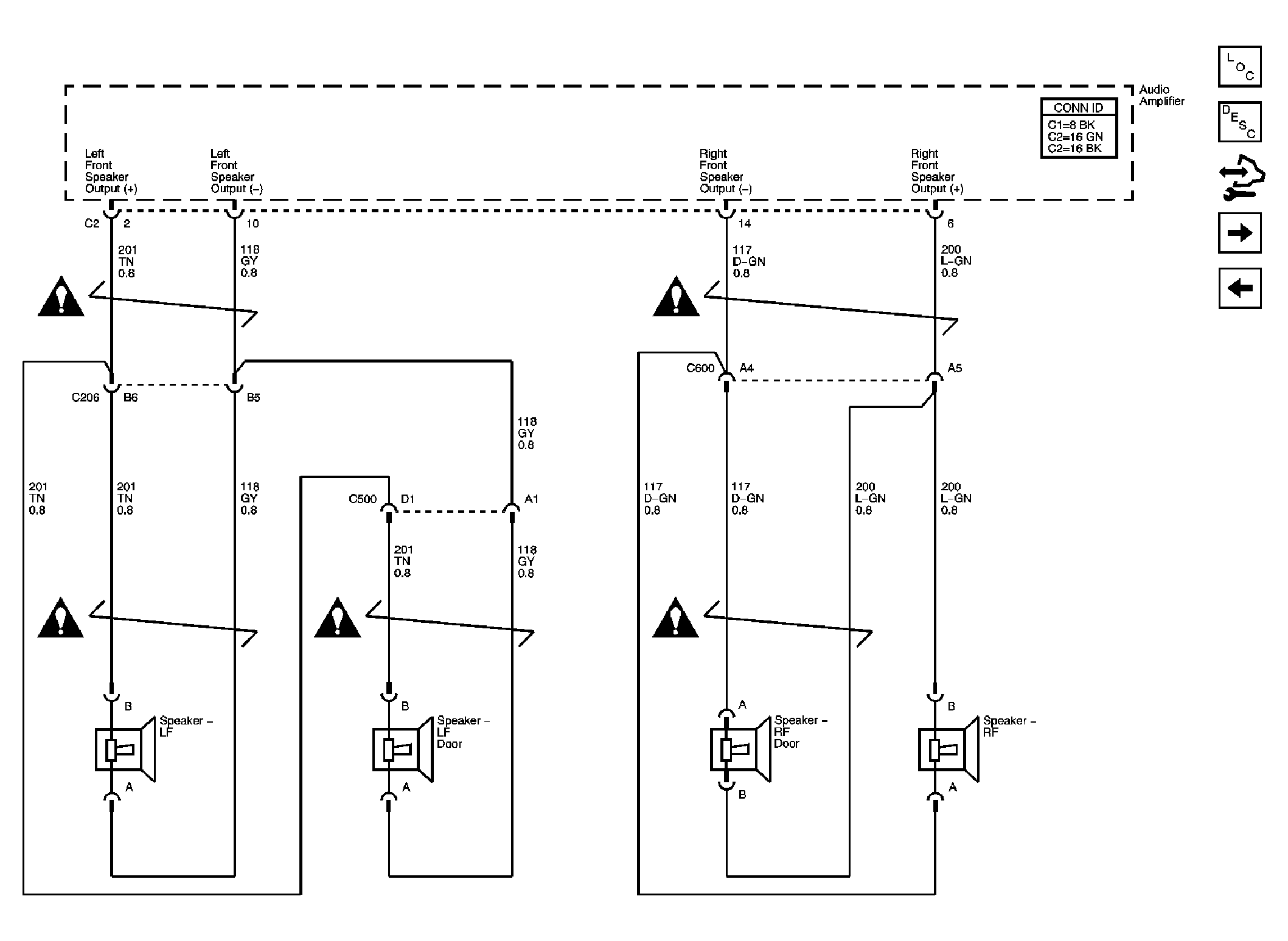

Fig 3: Amplifier (UQ3) Schematic

Courtesy of GENERAL MOTORS CORP.

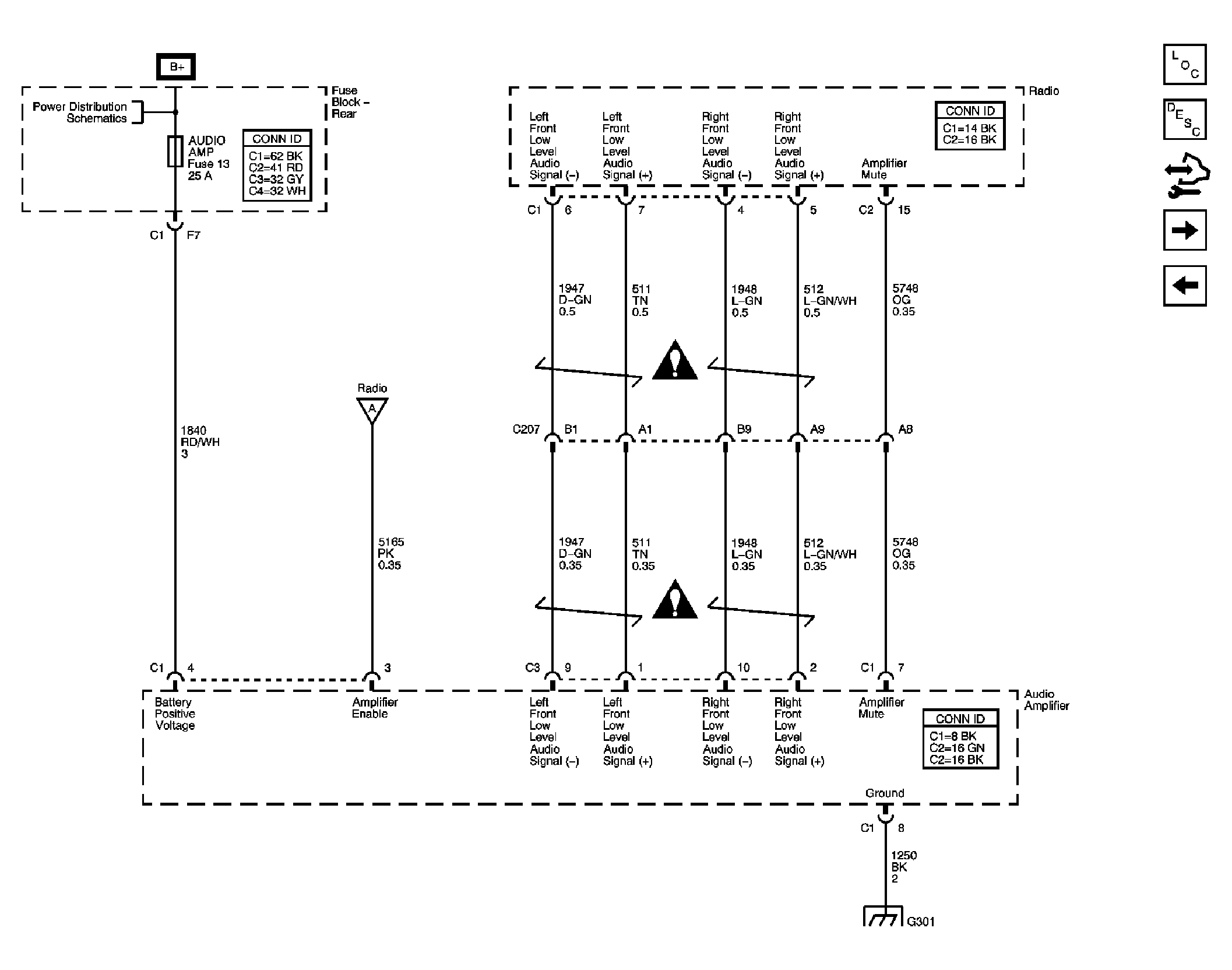

Fig 4: Front Speakers (UQ3) Schematic

Courtesy of GENERAL MOTORS CORP.

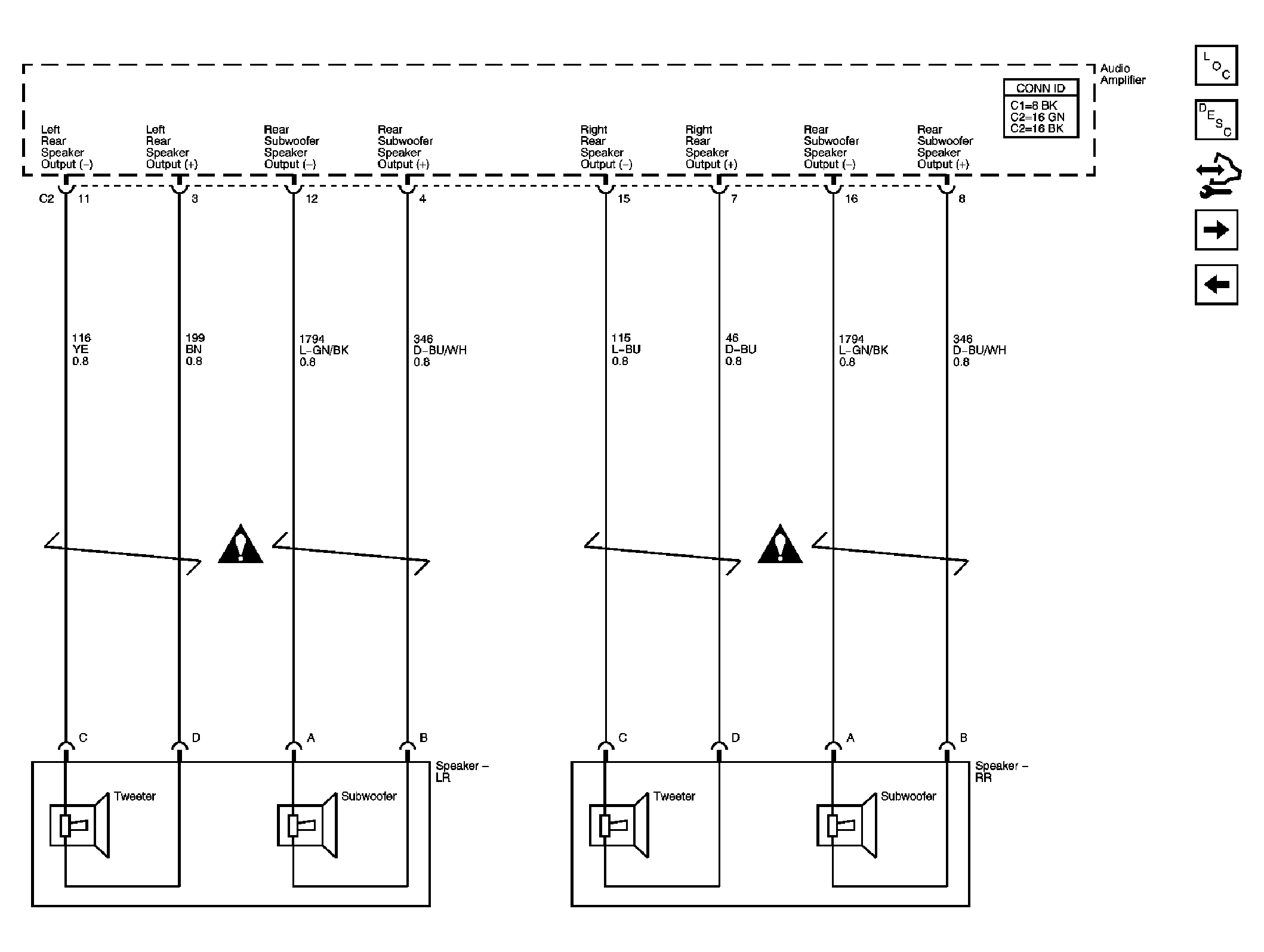

Fig 5: Rear Speakers (UQ3) Schematic

Courtesy of GENERAL MOTORS CORP.

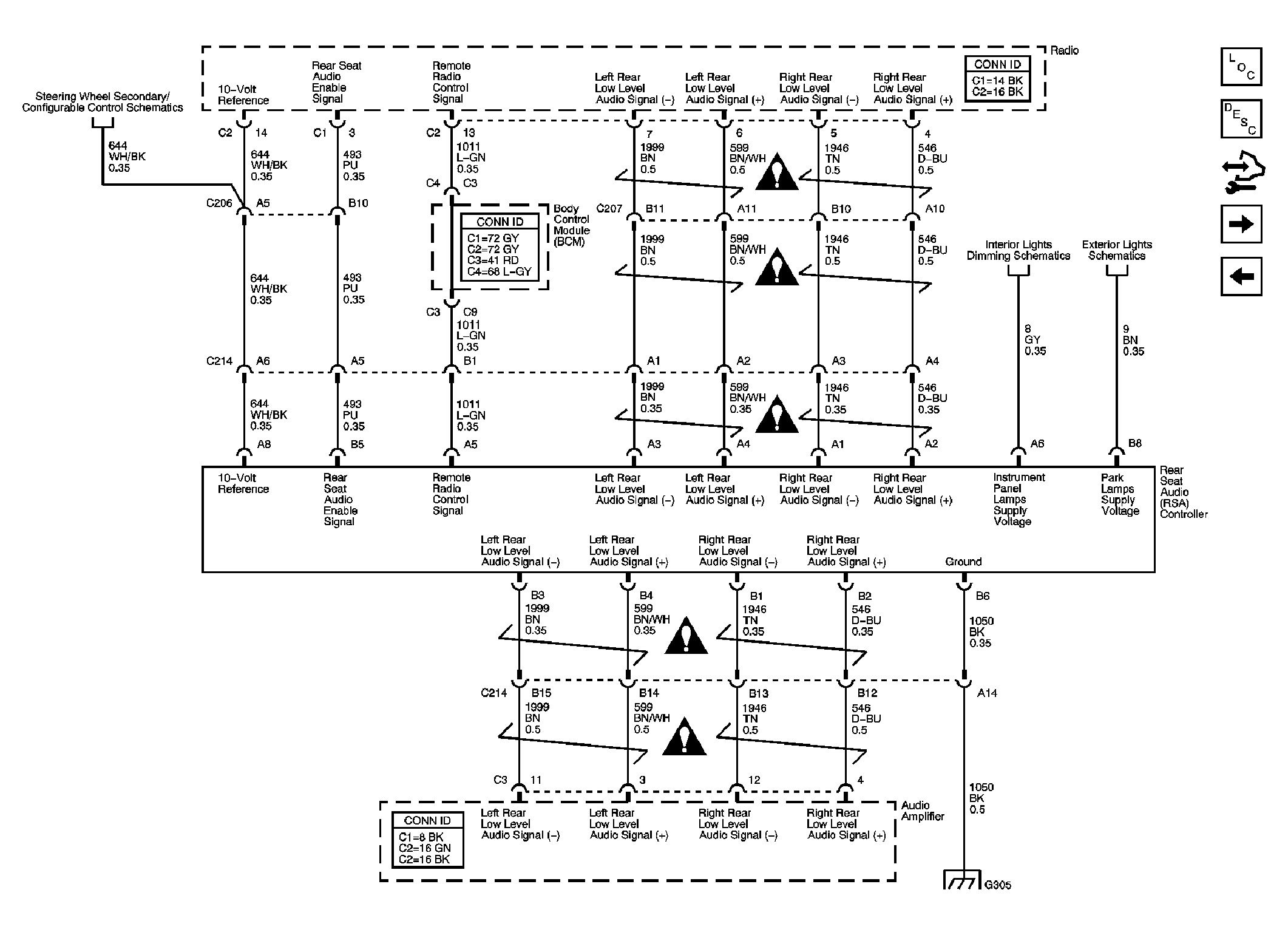

Fig 6: Rear Seat Audio (RSA) Controller Schematic

Courtesy of GENERAL MOTORS CORP.

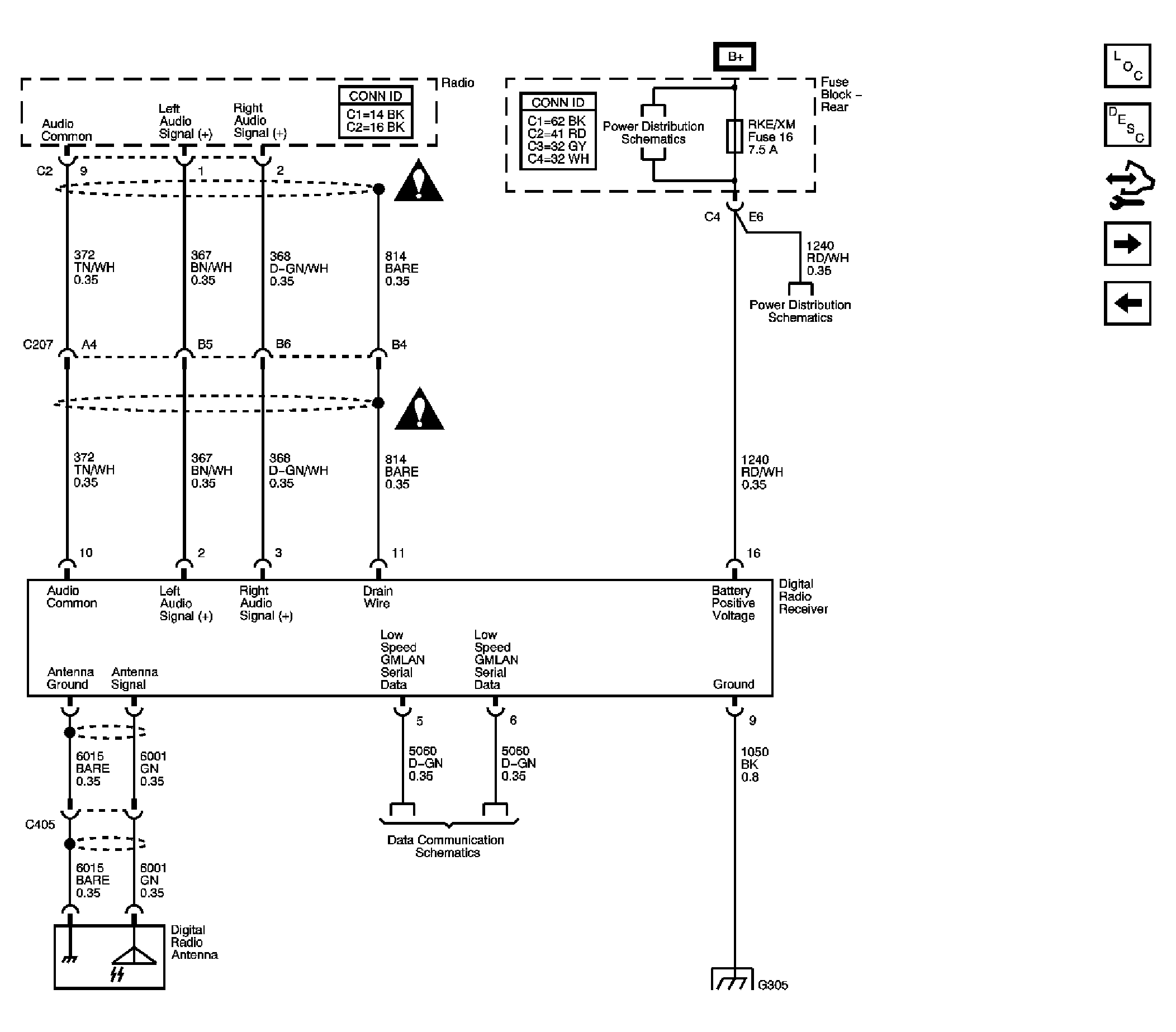

Fig 7: Digital Radio Receiver Schematic

Courtesy of GENERAL MOTORS CORP.

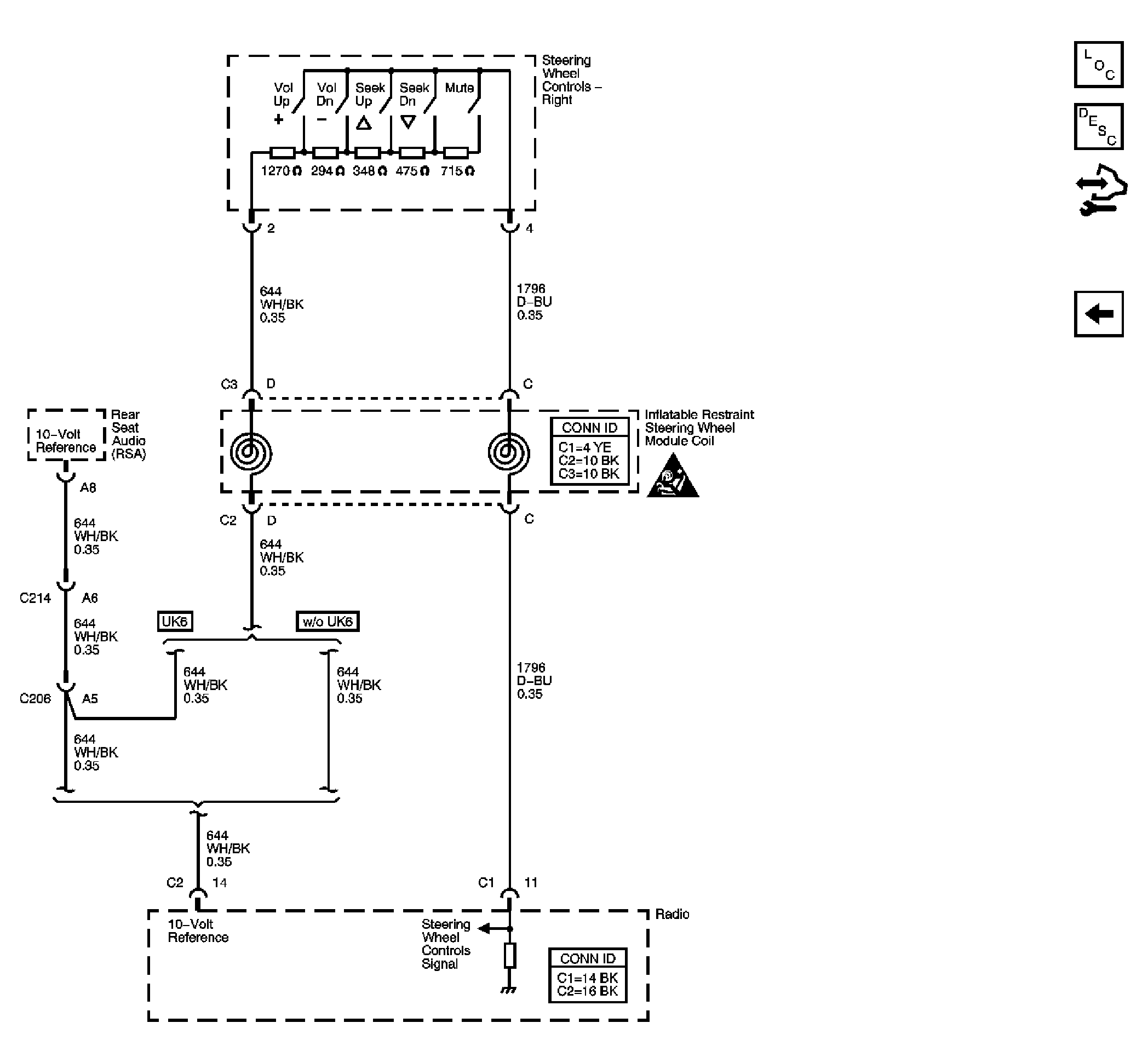

Fig 8: Redundant Radio Controls Schematic

Courtesy of GENERAL MOTORS CORP.
