Drive Motor Control Module
Hybrid Controls Connector End Views

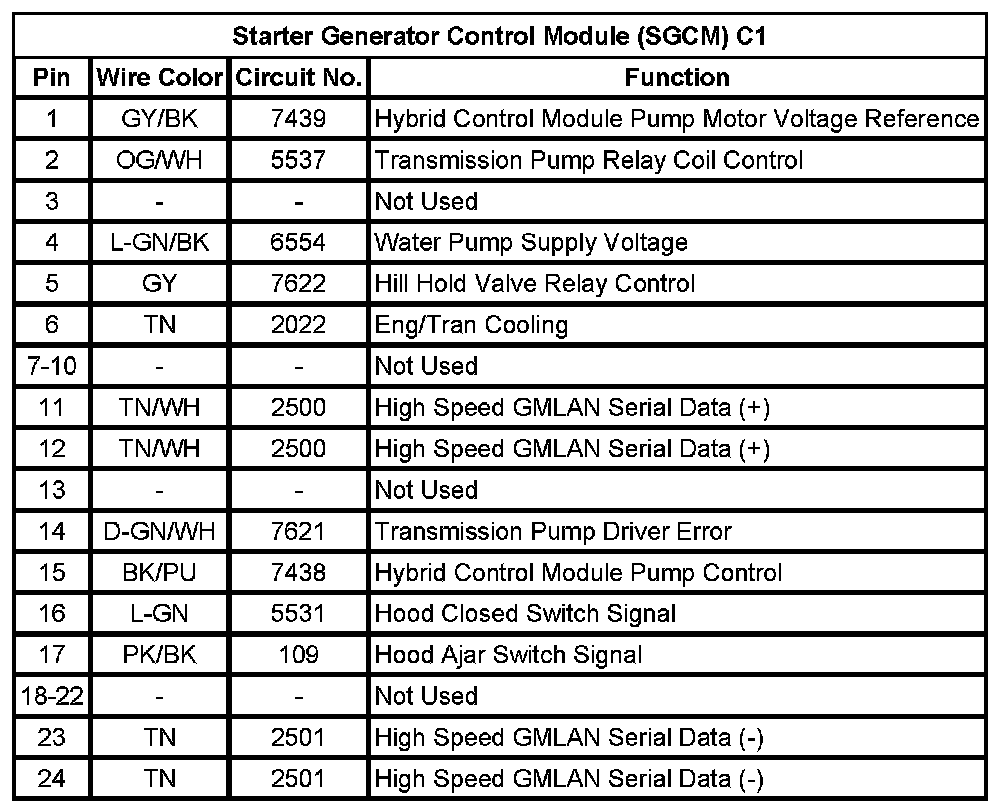

Starter Generator Control Module (SGCM) C1

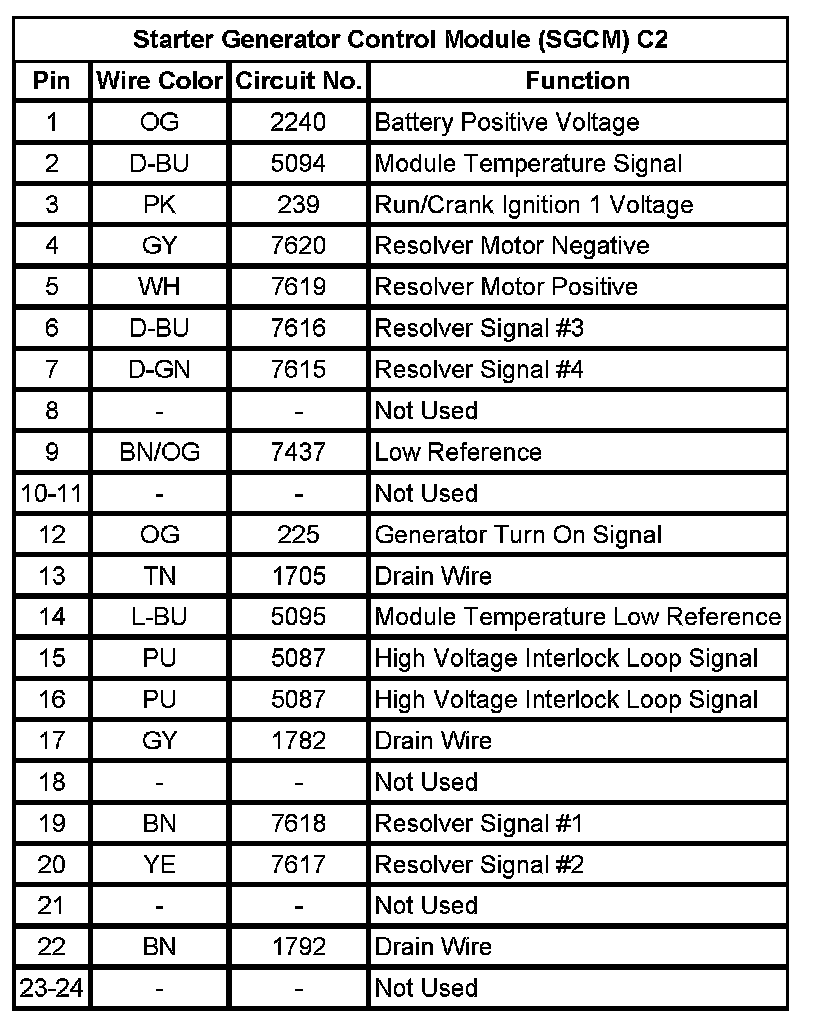

Starter Generator Control Module (SGCM) C2
Hybrid Controls Connector End Views
Starter Generator Control Module (SGCM) C1
Starter Generator Control Module (SGCM) C2
