Seat Temperature Control Module



Heated/Cooled Seat Connector End Views

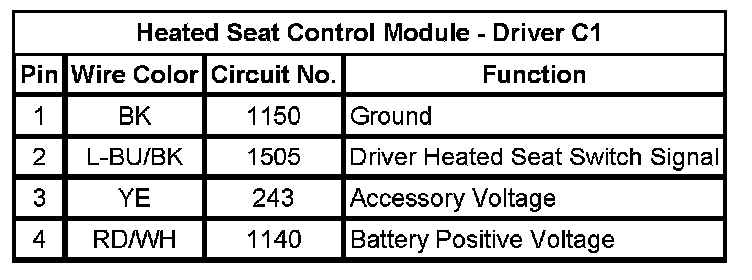

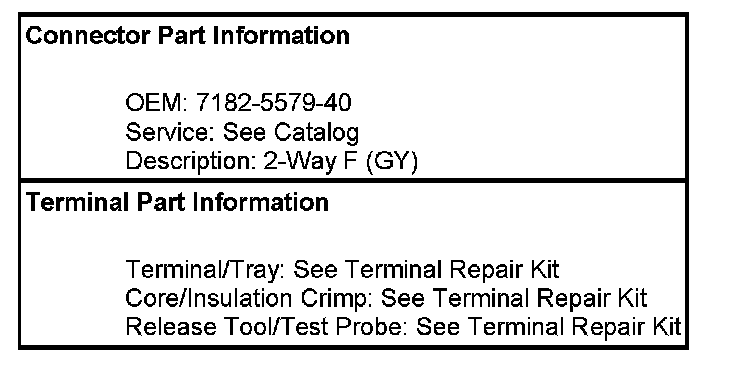

Heated Seat Control Module - Driver C1

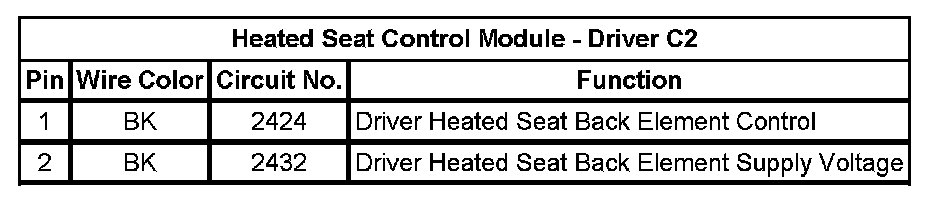

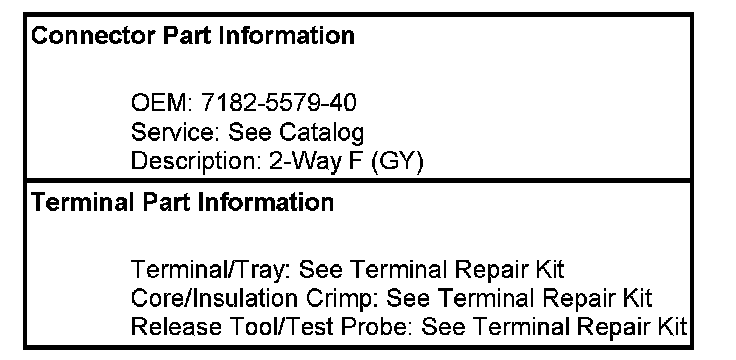

Heated Seat Control Module - Driver C2

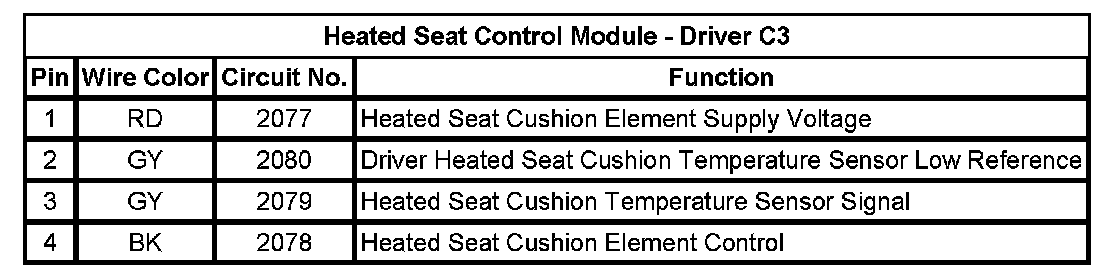

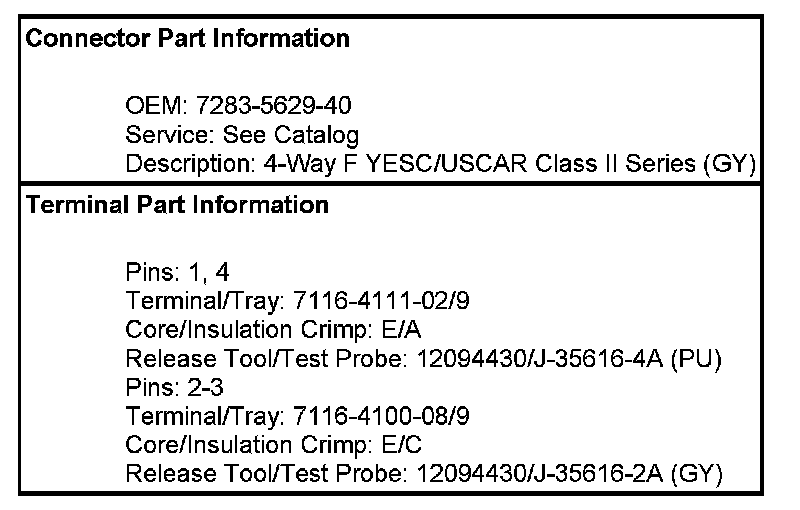

Heated Seat Control Module - Driver C3

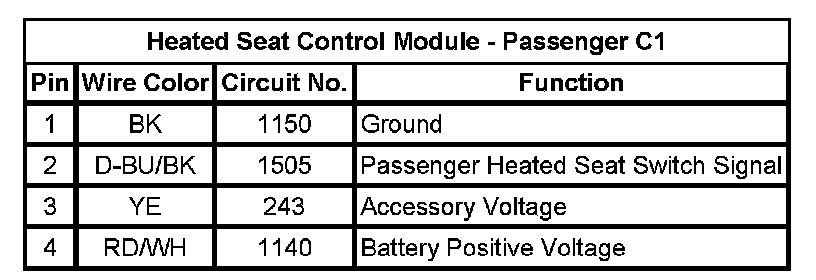

Heated Seat Control Module - Passenger C1

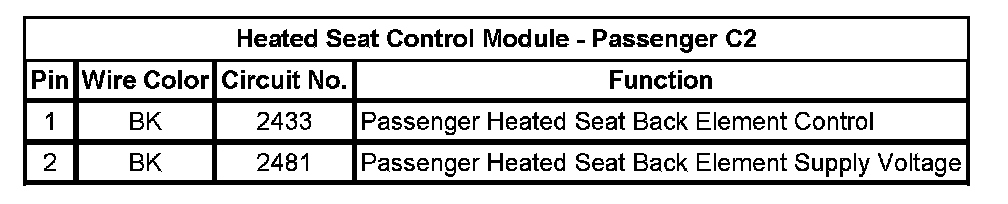

Heated Seat Control Module - Passenger C2

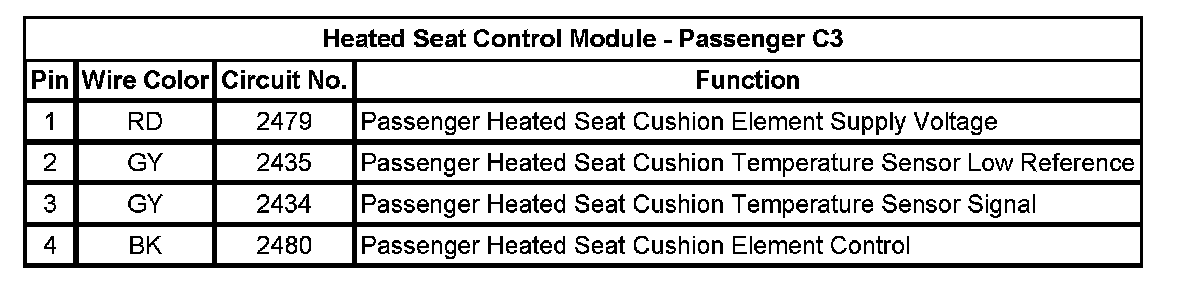

Heated Seat Control Module - Passenger C3
