Body Control Module (BCM) Fuse Block
Electrical Center Identification Views
Body Control Module (BCM) Top View
Body Control Module (BCM) Bottom View

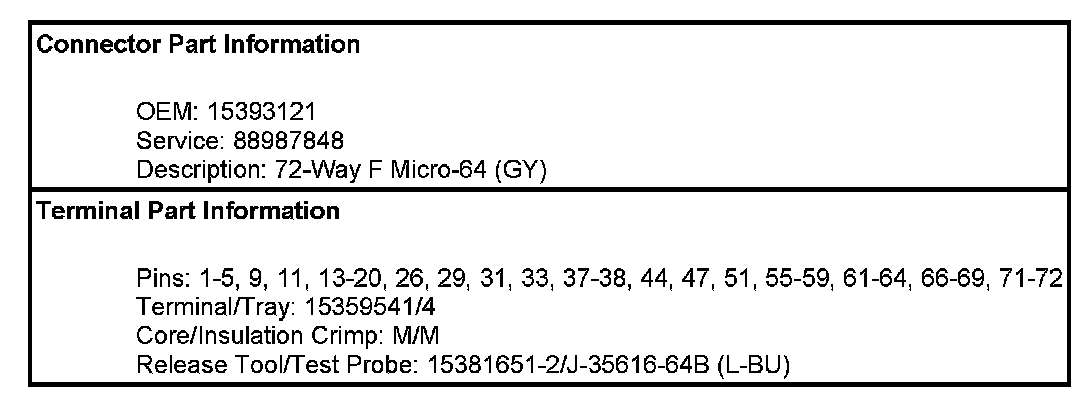

Body Control Module (BCM) C1

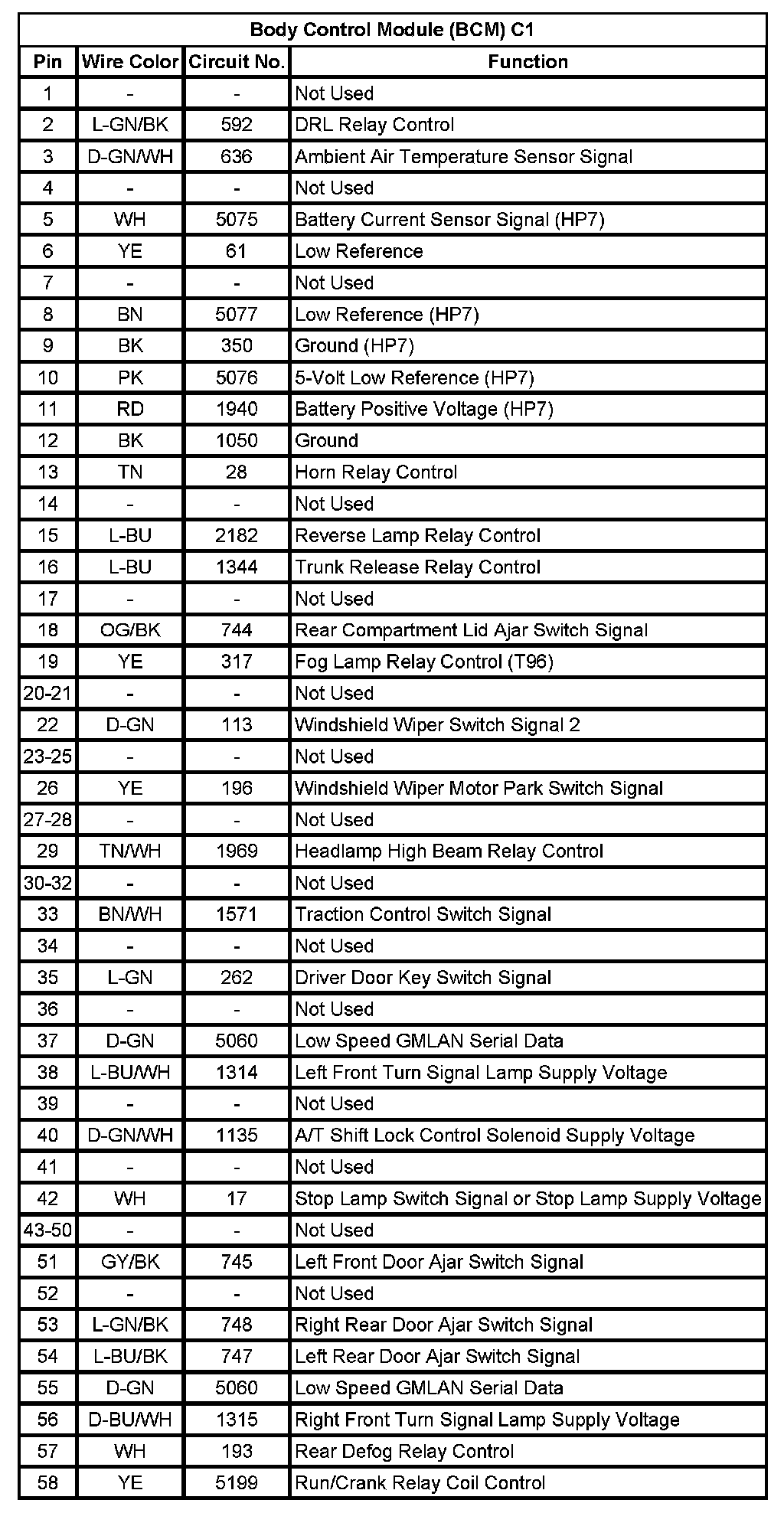

Body Control Module (BCM) C1 (Pin 1 To 58):

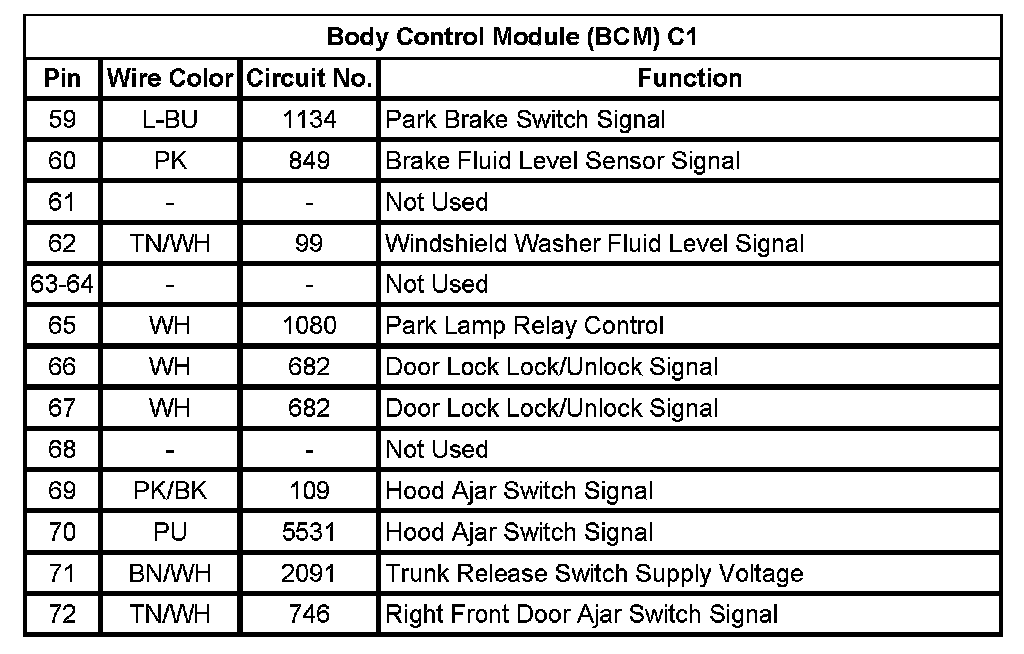

Body Control Module (BCM) C1 (Pin 59 To 72):

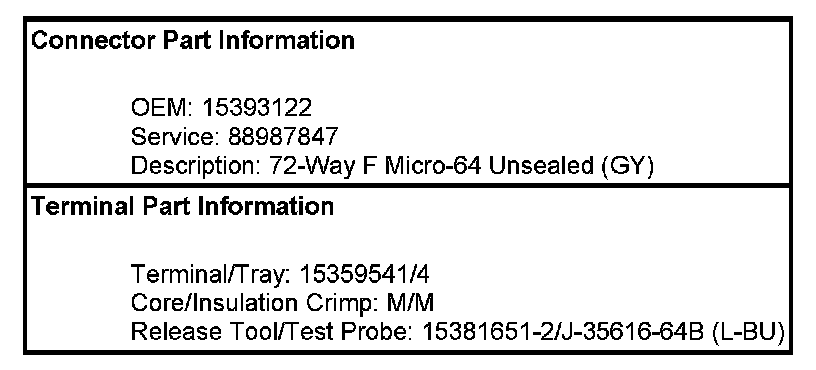

Body Control Module (BCM) C2

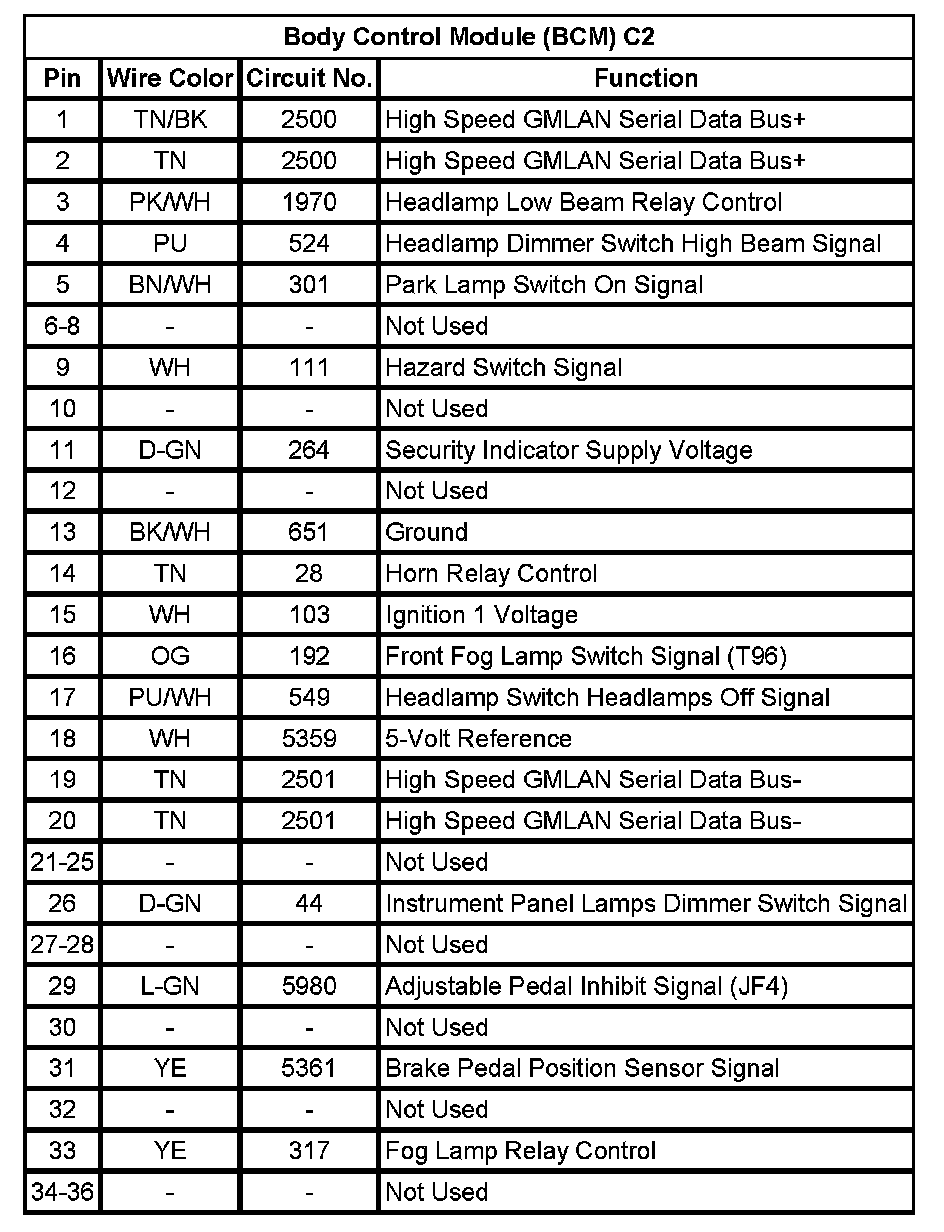

Body Control Module (BCM) C2 (Pin 1 To 36):

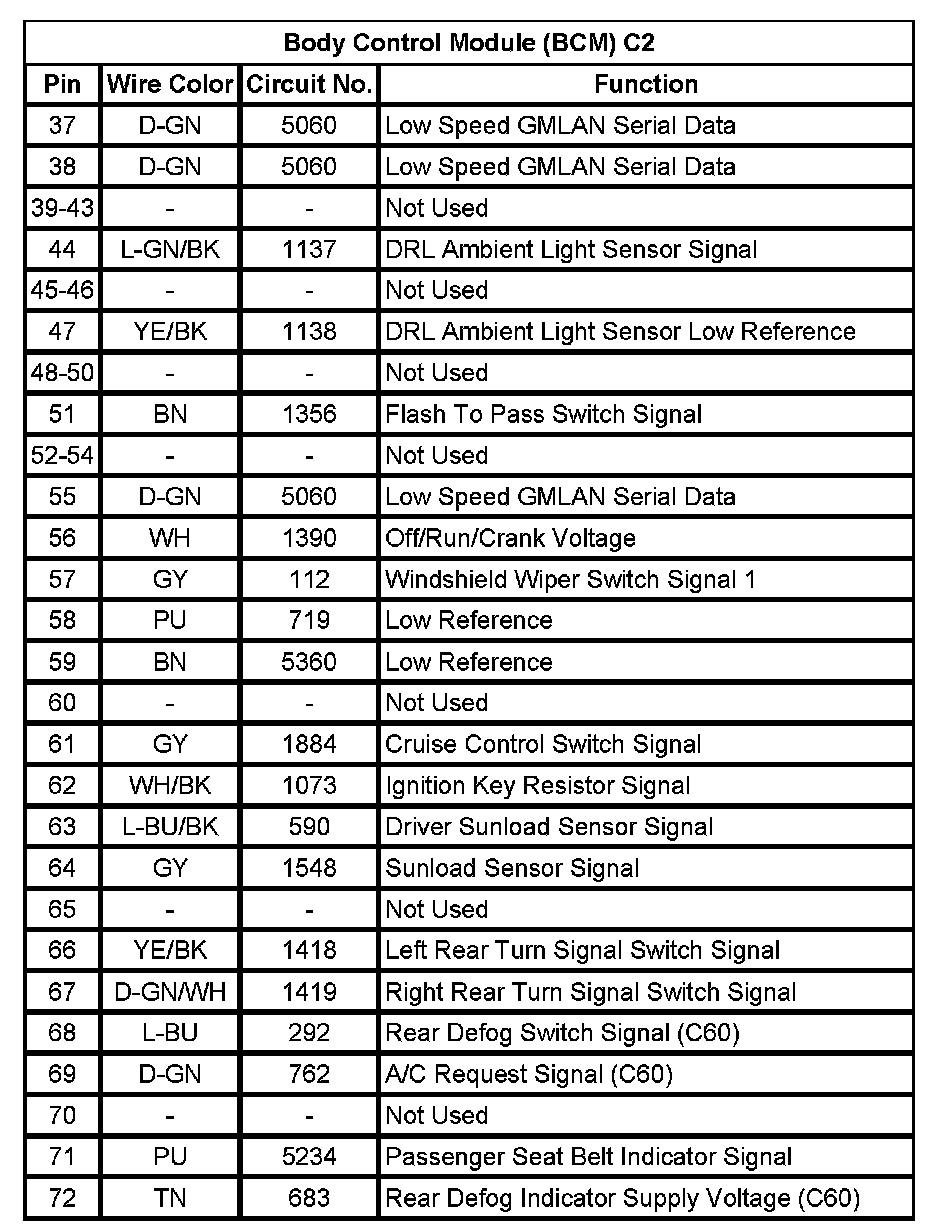

Body Control Module (BCM) C2 (Pin 37 To 72):

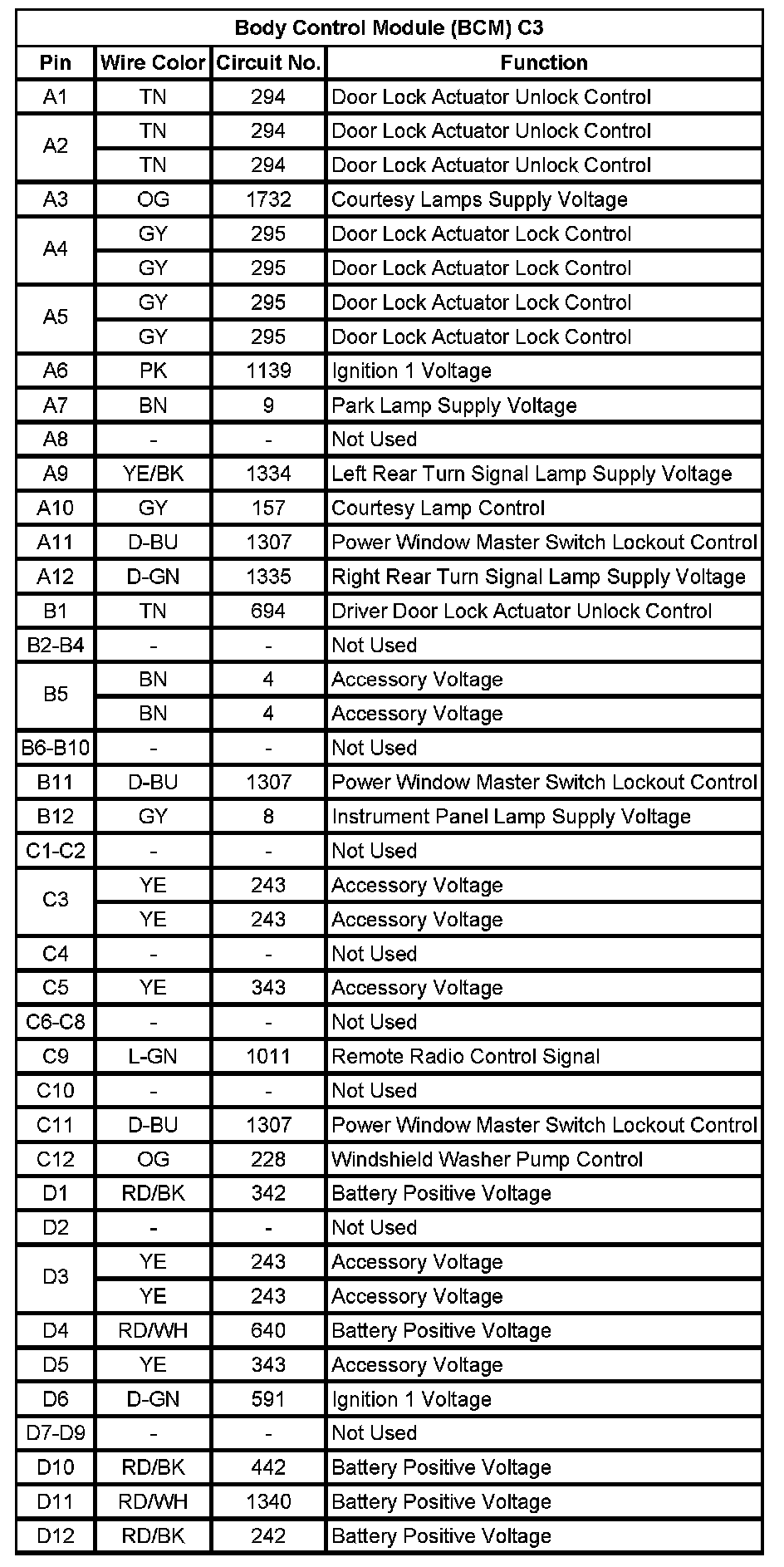

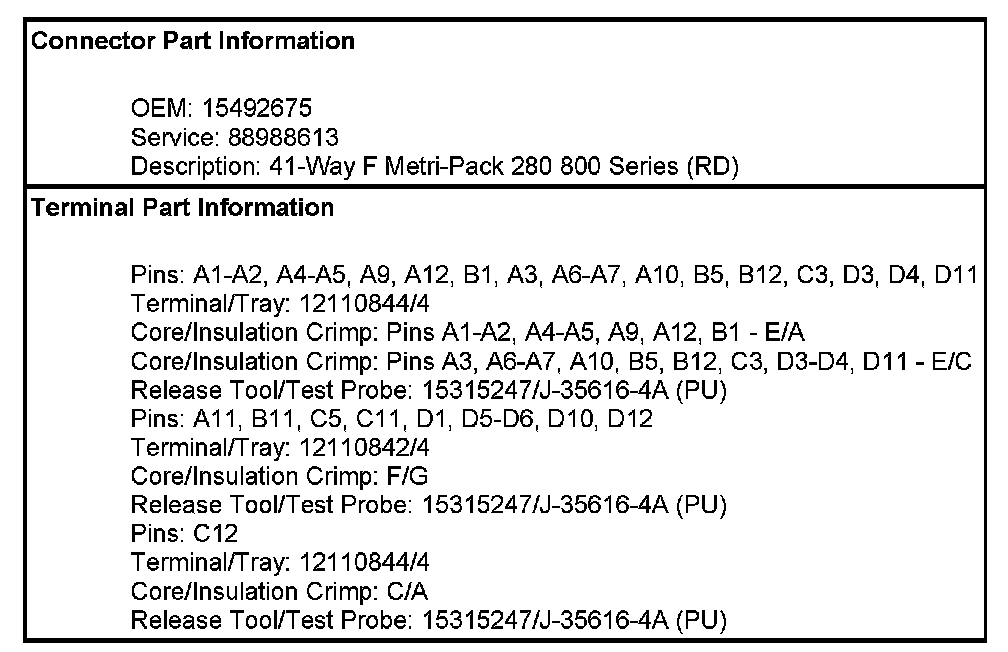

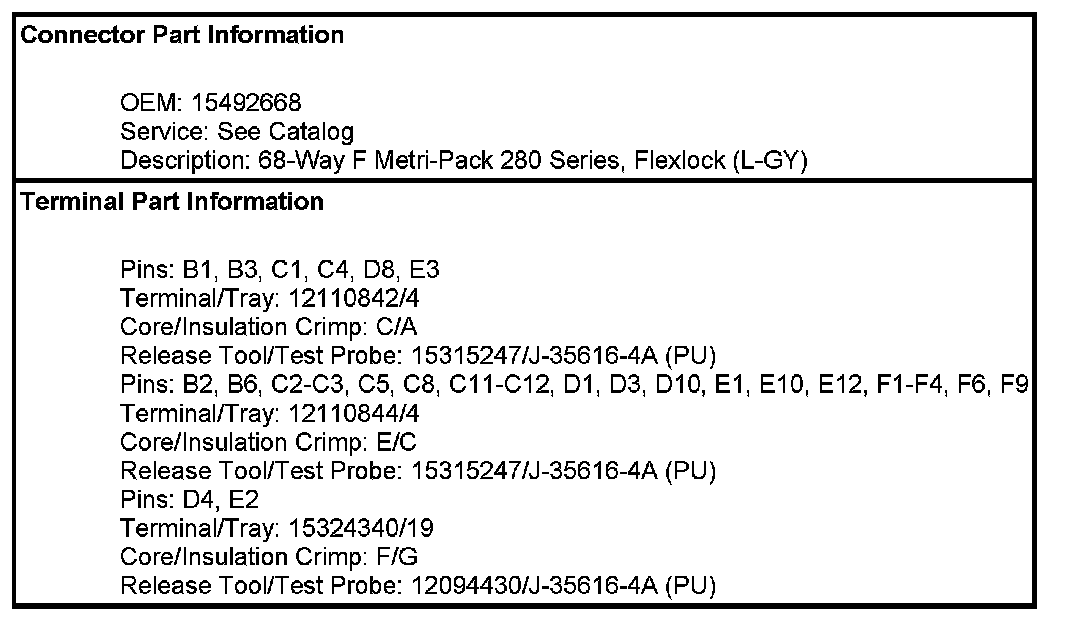

Body Control Module (BCM) C3
Body Control Module (BCM) C4

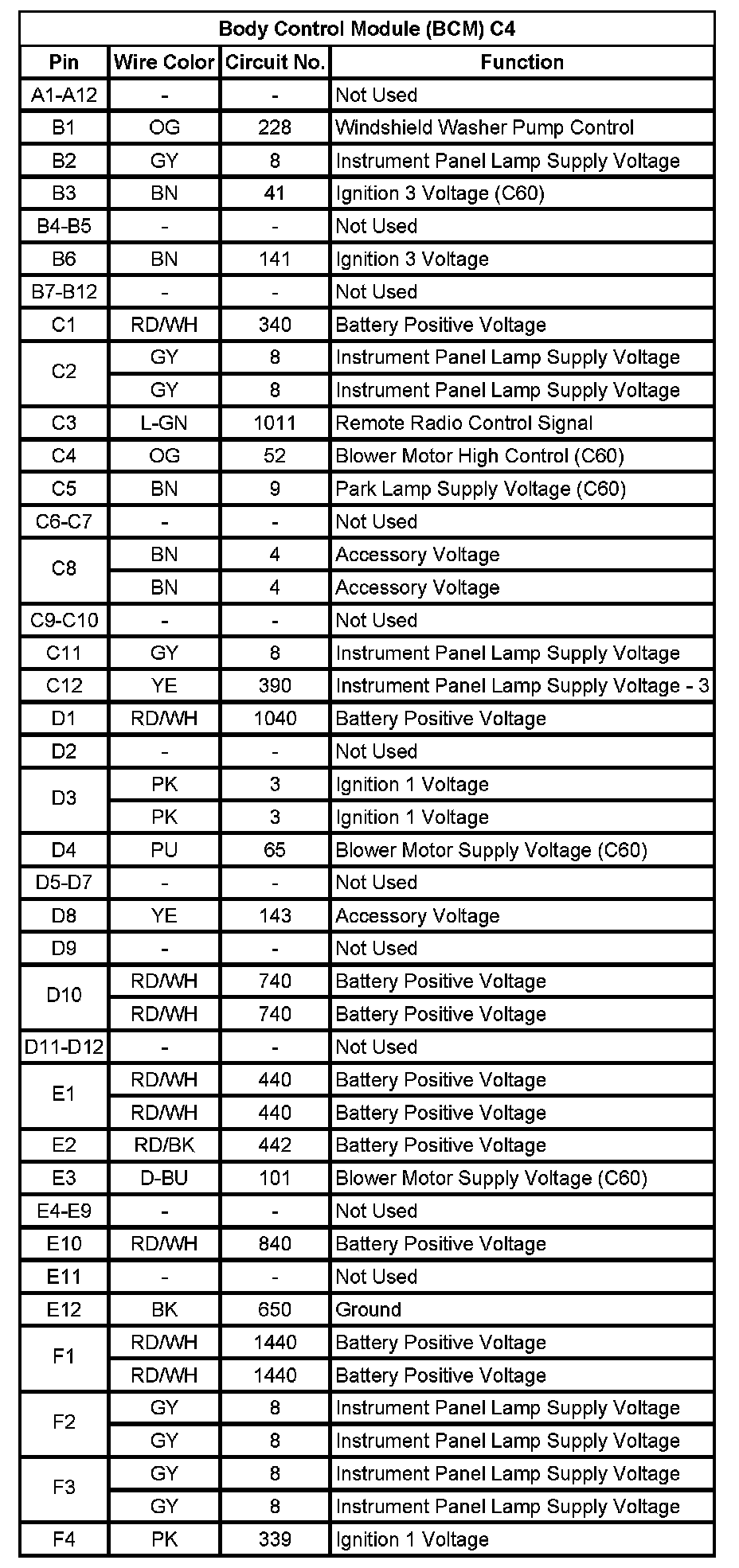

Body Control Module (BCM) C4 (Pin A1 To F4):

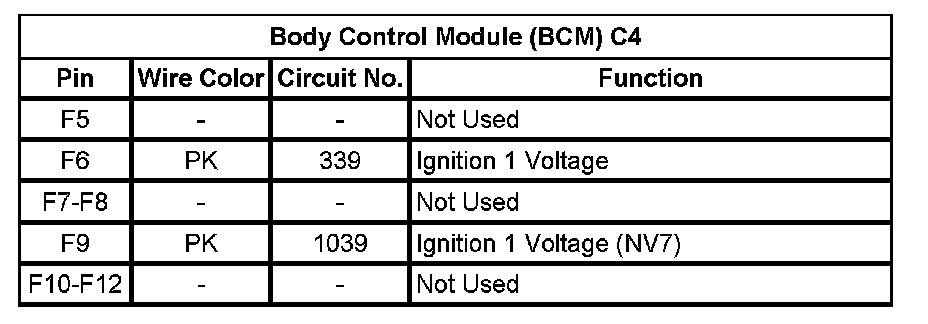

Body Control Module (BCM) C4 (Pin F5 To F12):
