Steering Control Module

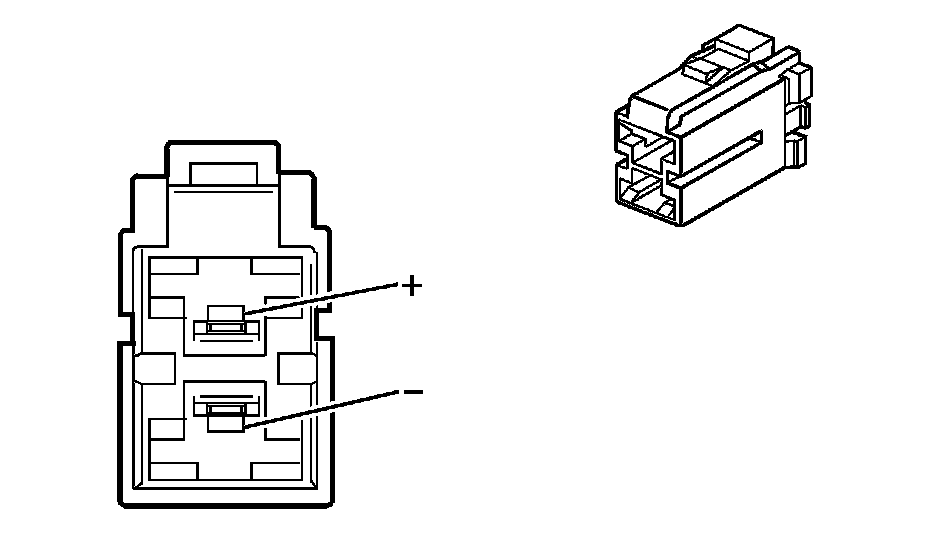

Power Steering Connector End Views

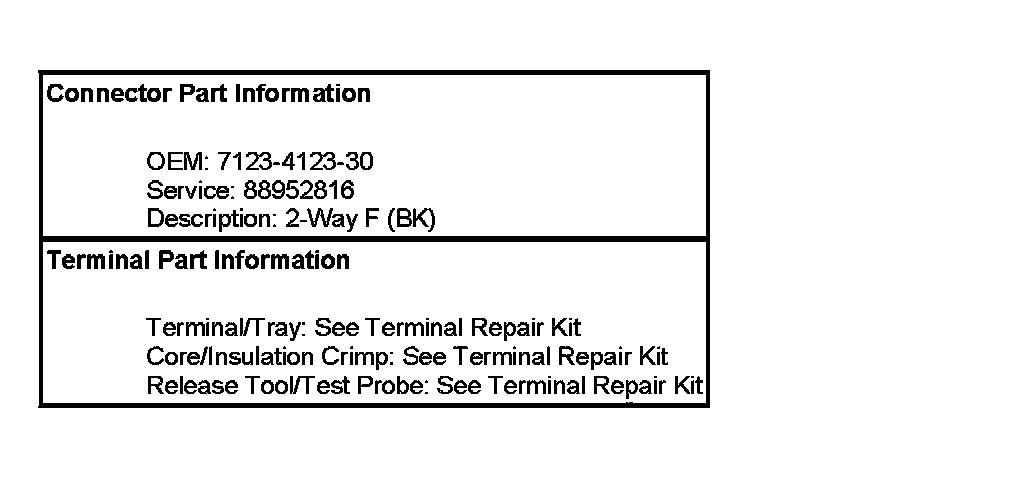

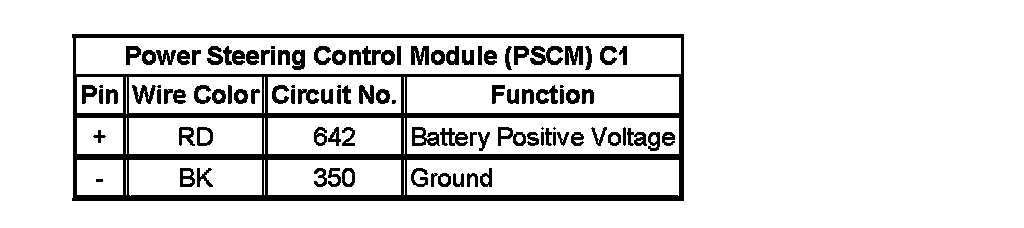

Power Steering Control Module (PSCM) C1:

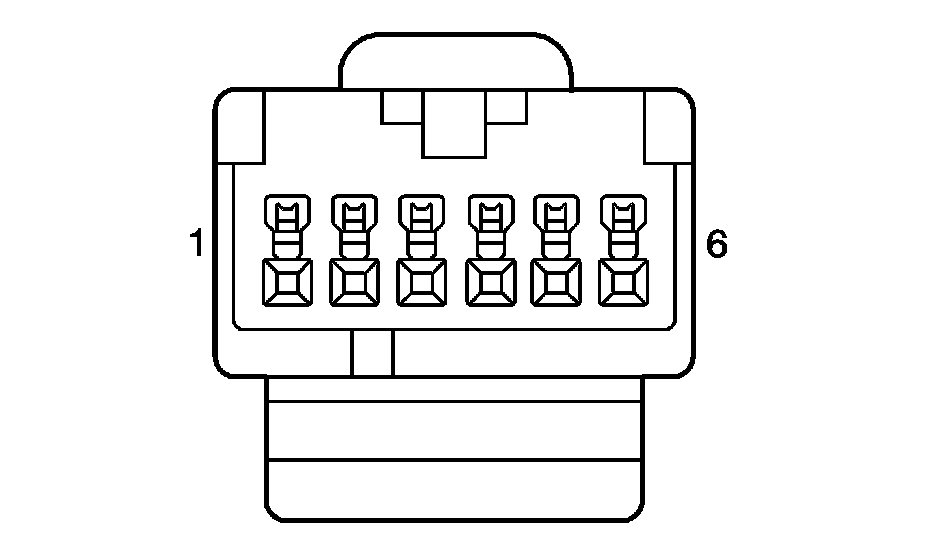

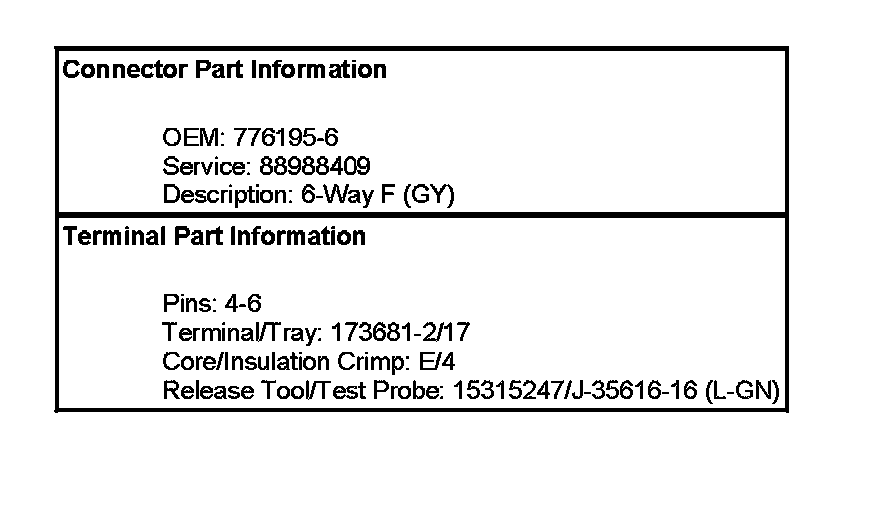

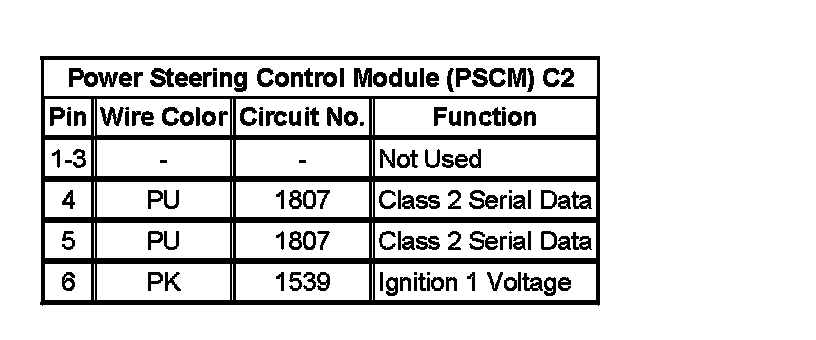

Power Steering Control Module (PSCM) C2:

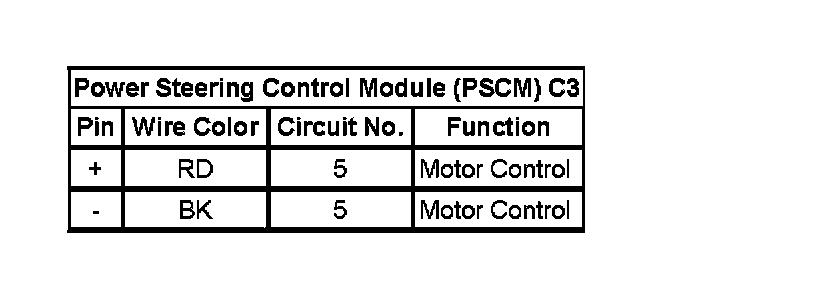

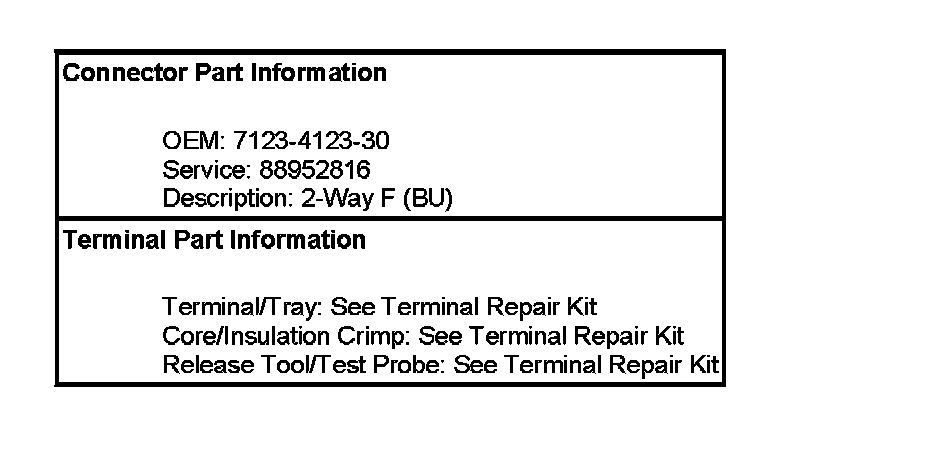

Power Steering Control Module (PSCM) C3:
