Horn: Locations

Horn Component Views

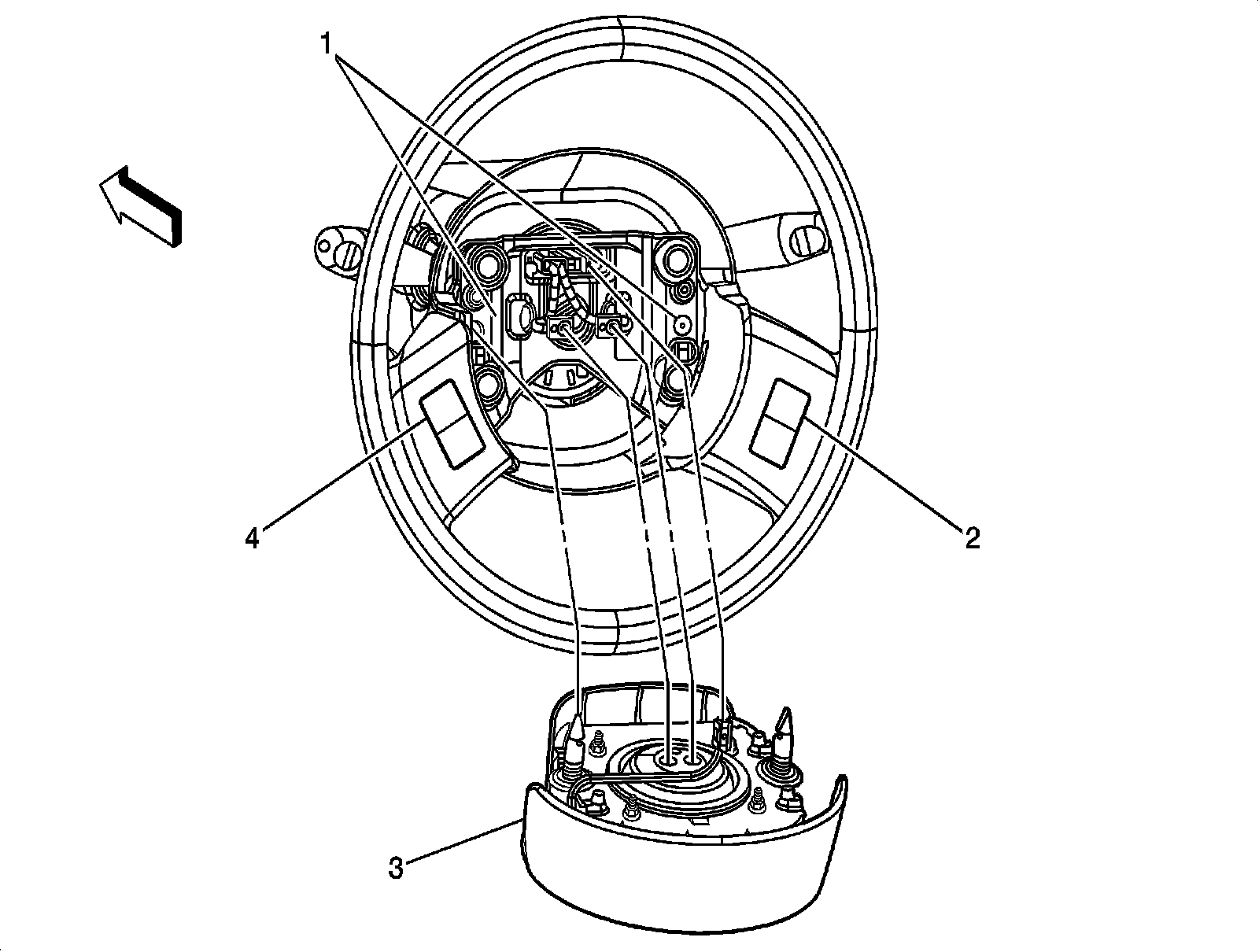

Steering Wheel Assembly




1 - Horn Switch
2 - Steering Wheel Controls - Right (K34)
3 - Inflatable Restraint Steering Wheel Module
4 - Steering Wheel Controls - Left (K34)

Left Front Side of the Vehicle




1 - Windshield Washer Fluid Pump
2 - Horn
3 - Fog Lamp - LF
