Brake Switch (Cruise Control): Service and Repair

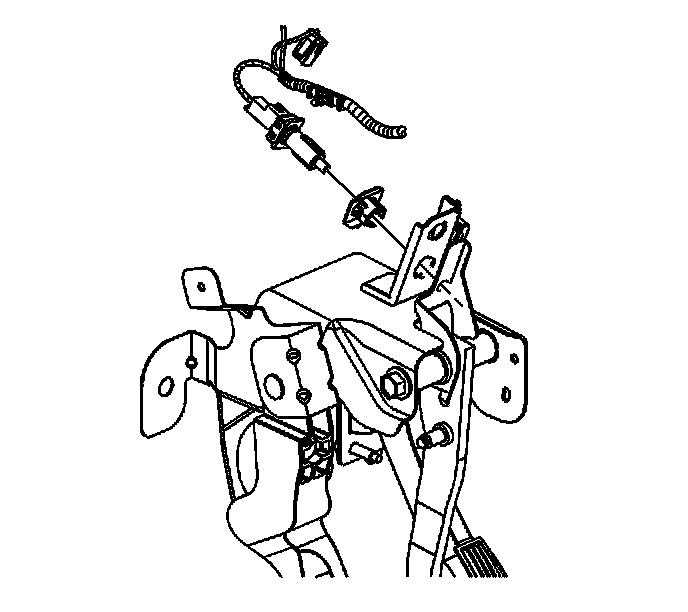

Cruise Release Switch Replacement

Removal Procedure




1. Disconnect the electrical connector from the cruise control release switch.
2. Remove the cruise control release switch from the bracket.

Installation Procedure




1. Depress the brake pedal and insert the cruise control release switch into the bracket until the retainer is fully seated.
2. Connect the electrical connector to the cruise control release switch.
3. Adjust the cruise control release switch as needed. Refer to Cruise Release Switch Adjustment.
