Brake Light Switch

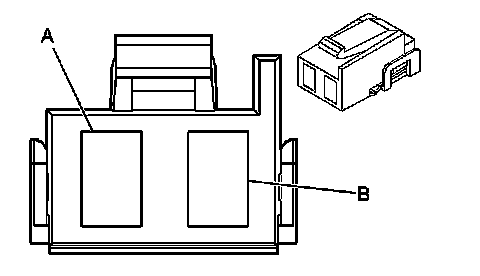

Lighting Systems Connector End Views

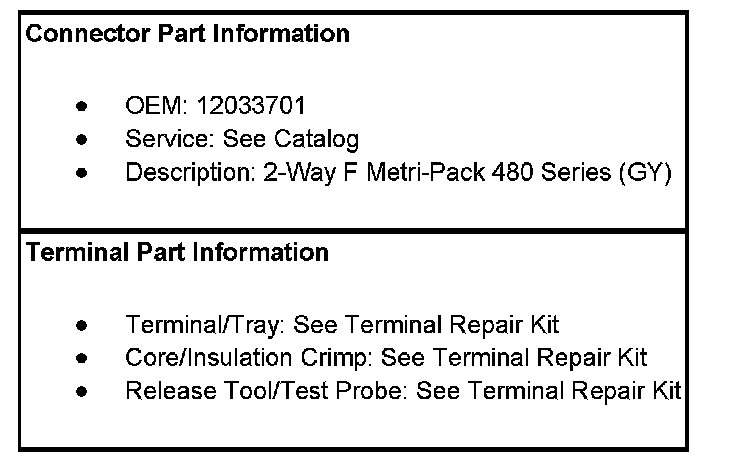

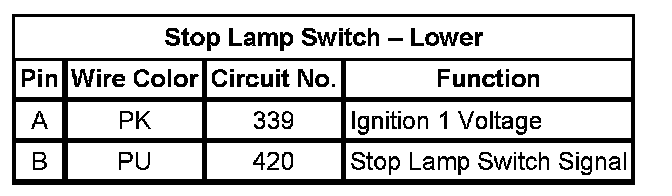

Stop Lamp Switch - Lower

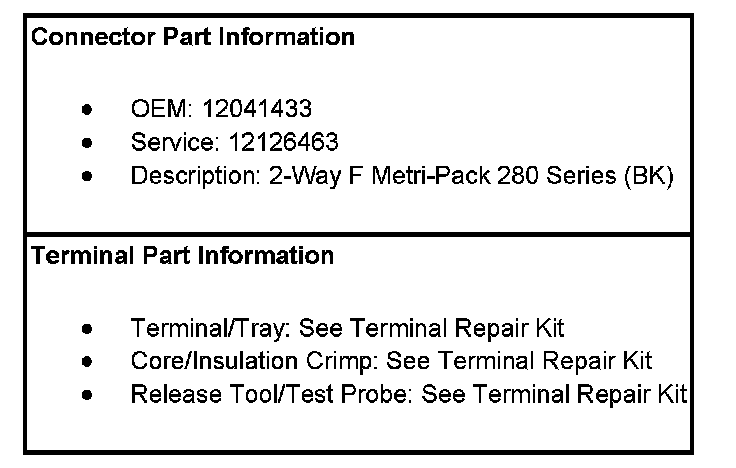

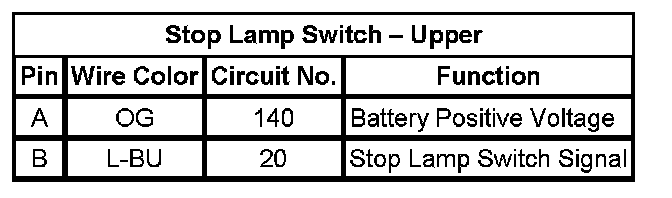

Stop Lamp Switch - Upper
