Getrag 5 Speed - Manual Transmission

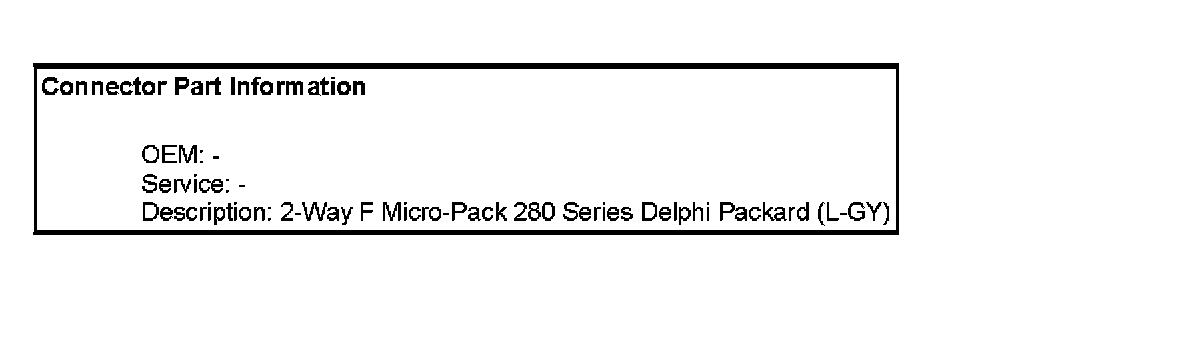

Manual Transmission Connector End Views

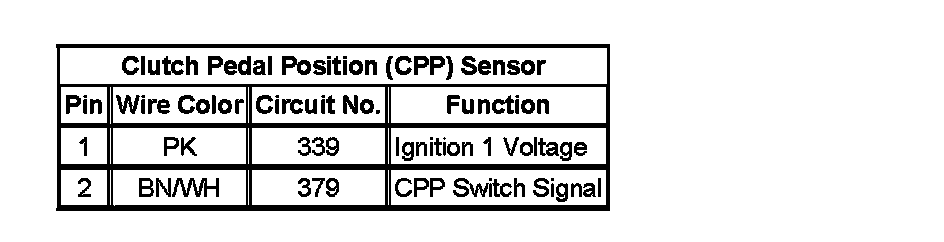

Clutch Pedal Position (CPP) Sensor:
