Cruise Control Connector End Views

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

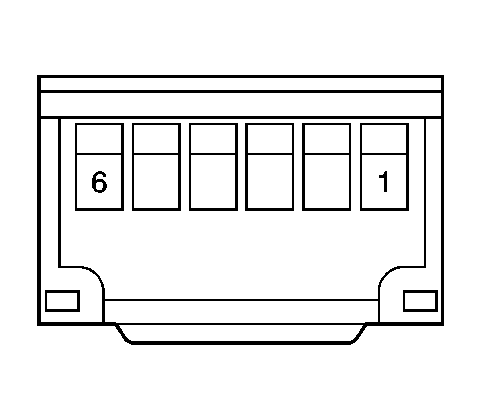

Cruise Control Module (CCM) (2.2L w/K34) Terminal Identification

GM894388Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 174930-6
  • 6-Way F (GY) (AMP)
Pin Wire Color Circuit No. Function
1 PK 339 Ignition 1 Voltage
2 L-BU 1888 Cruise Control Servo Clutch Control
3 VT 420 Stop Lamp Switch Signal
4 PK 1886 Cruise Control Servo Move Signal
5 BK 550 Ground
6 L-GN 1887 Cruise Control Servo Move Direction Signal
Steering Wheel Controls Terminal Identification - Left (Early Production w/K34)

GM812599Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 50-57-9403
  • 3-Way F (BK) (Molex)
Pin Wire Color Circuit Number Function
1 BK 550 Ground
2 D-BU 397 Cruise Control On Switch Signal
3 PK 1539 Ignition 1 Voltage
Steering Wheel Controls Terminal Identification - Left (Late Production w/K34)

GM605502Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 50-57-9404
  • 4-Way F (BK) (Molex)
Pin Wire Color Circuit Number Function
1 BK 550 Ground
2 - - Not Used
3 PK 1539 Ignition 1 Voltage
4 D-BU 397 Cruise Control On Switch Signal
Steering Wheel Controls Terminal Identification - Right (Early Production w/K34)

GM605502Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 50-57-9404
  • 4-Way F (BK) (Molex)
Pin Wire Color Circuit Number Function
1 D-BU 397 Cruise Control On Switch Signal
2 GY 1884 Cruise Control Set/Coast and Resume/Accelerate Signal
3-4 - - Not Used
Steering Wheel Controls Terminal Identification - Right (Late Production w/K34)

GM605511Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 50-57-9405
  • 5-Way F (BK) (Molex)
Pin Wire Color Circuit Number Function
1 BK - Not Used
2 - - Not Used
3 D-BU 397 Cruise Control On Switch Signal
4 GY 1884 Cruise Control Set/Coast and Resume/Accelerate Signal
5 - - Not Used
Stop Lamp Switch Terminal Identification - Lower (K34)

GM287957Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12041433
  • 2-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A PK 339 Ignition 1 Voltage
B PU 420 Stop Lamp Switch Signal
