Cruise Control Component Views

WARNING: This page is about a different car, the 2005 Saturn Ion Red Line, 2005 Saturn Ion 3, 2005 Saturn Ion 2, and 2005 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Instrument Panel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Windshield Wiper/Washer Switch
3	Hazard Switch
4	Instrument Panel Cluster (IPC)
5	Traction Control Switch (NW7)
6	Radio
7	A/T Shifter (MN5)
8	HVAC Control Assembly
9	Steering Wheel Controls - Right (K34)
10	Steering Wheel Controls - Left (K34)
11	Rear Compartment Lid Release Switch

Fig 2: Lower Left Front Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch - Upper
2	Stop Lamp Switch - Lower

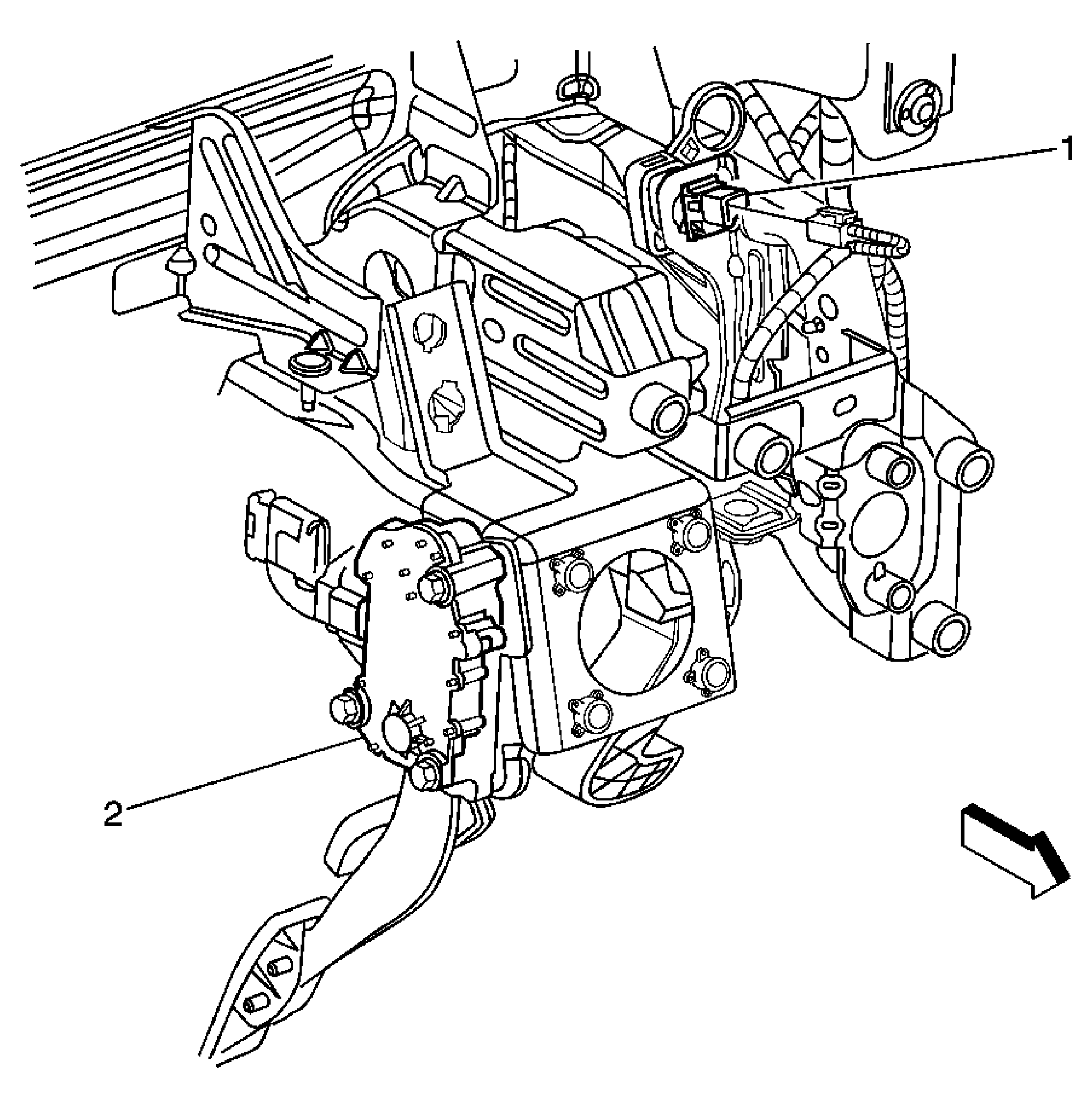

Fig 3: Behind Right Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clutch Pedal Position (CPP) Switch (K34)
2	Accelerator Pedal Position (APP) Switch
