Body Control Module (BCM) X1

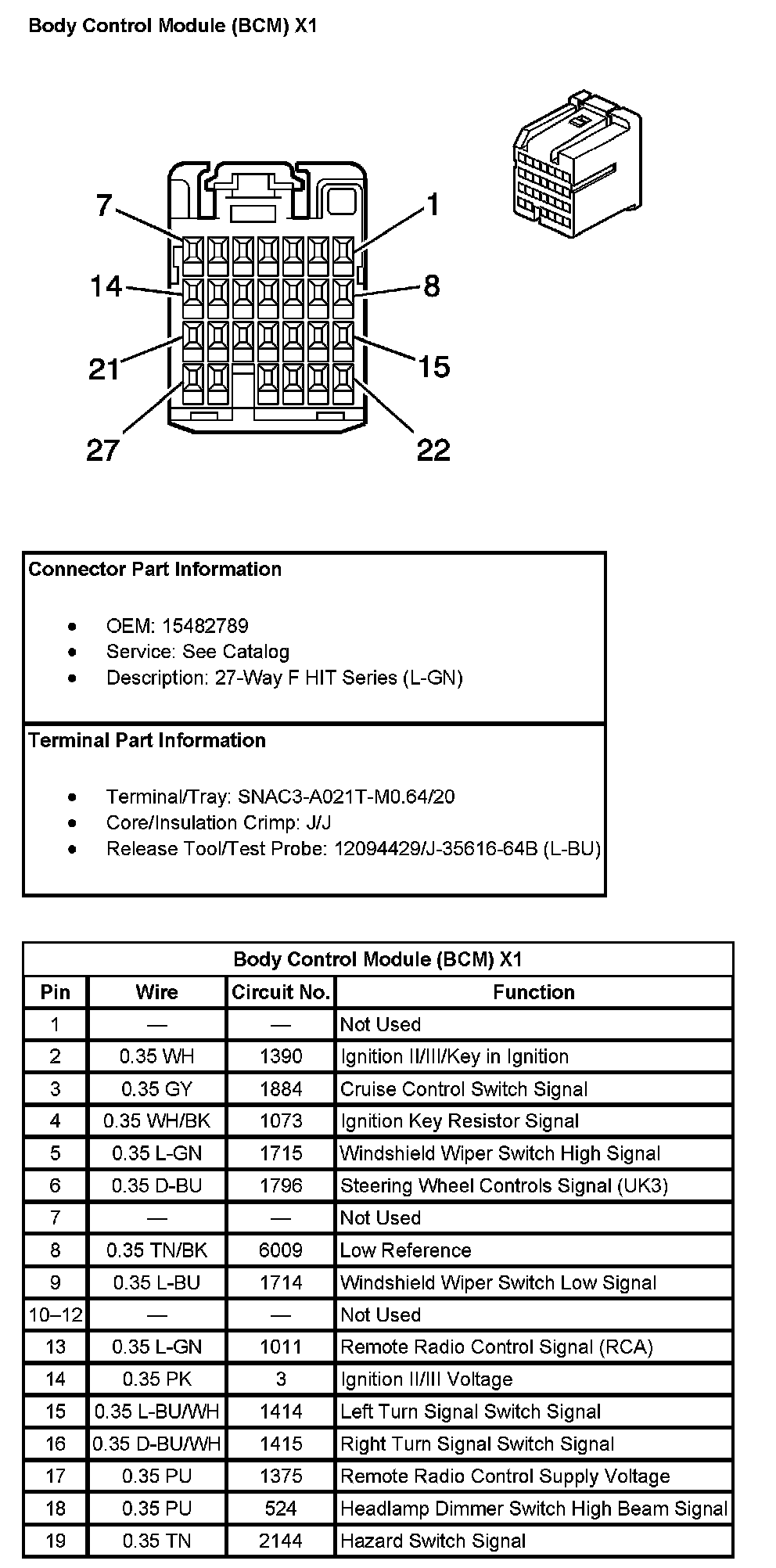

Body Control Module (BCM) X1 (Pin 1 To 19):

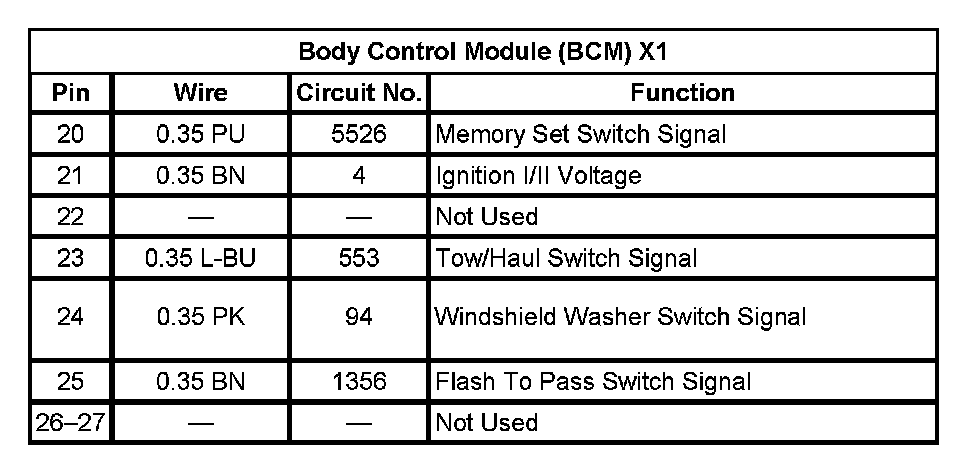

Body Control Module (BCM) X1 (Pin 20 To 27):
