Driver Door Module (DDM) X2

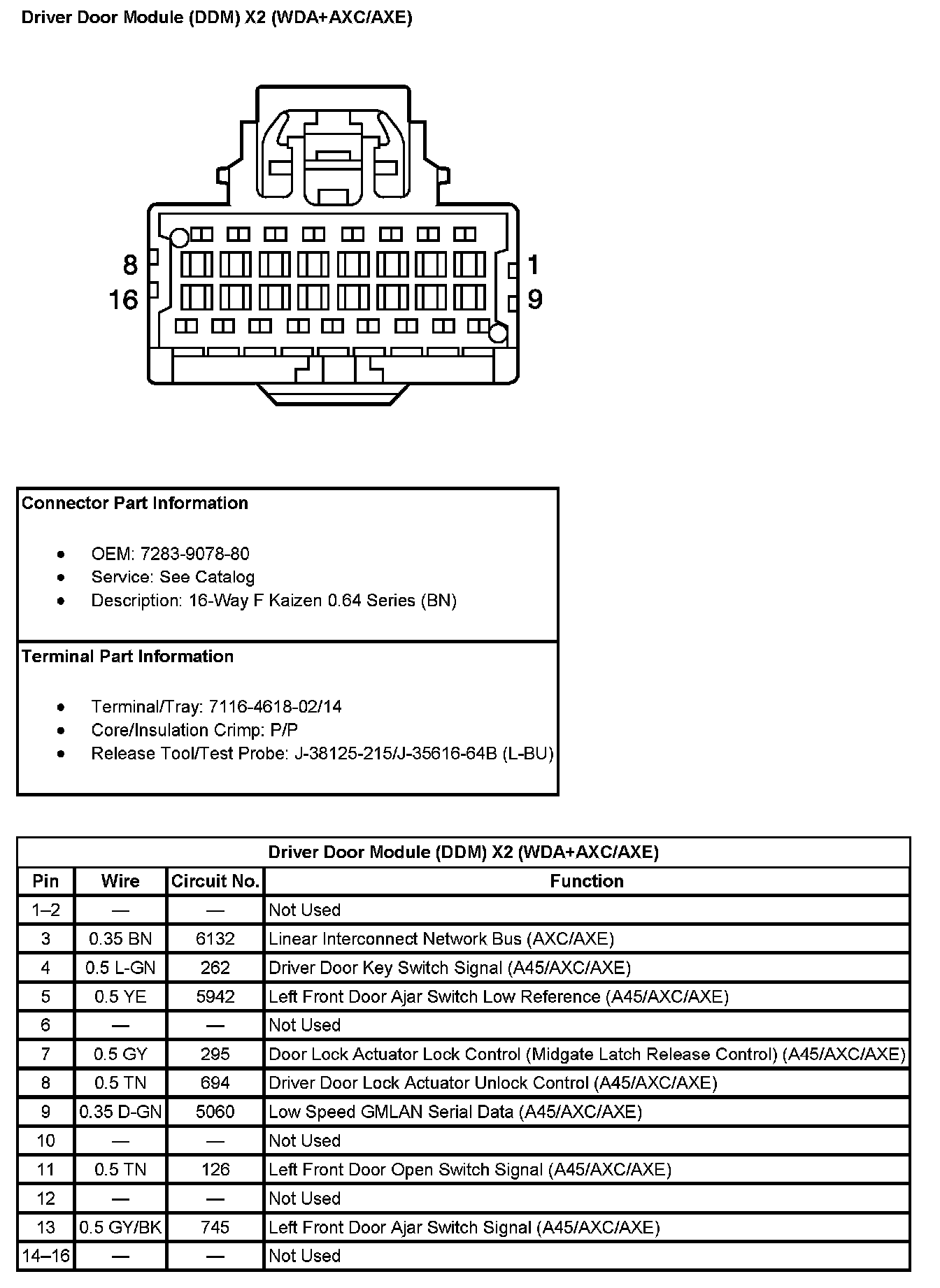

Driver Door Module (DDM) X2 (With RPO Code WDA+AXC & AXE):

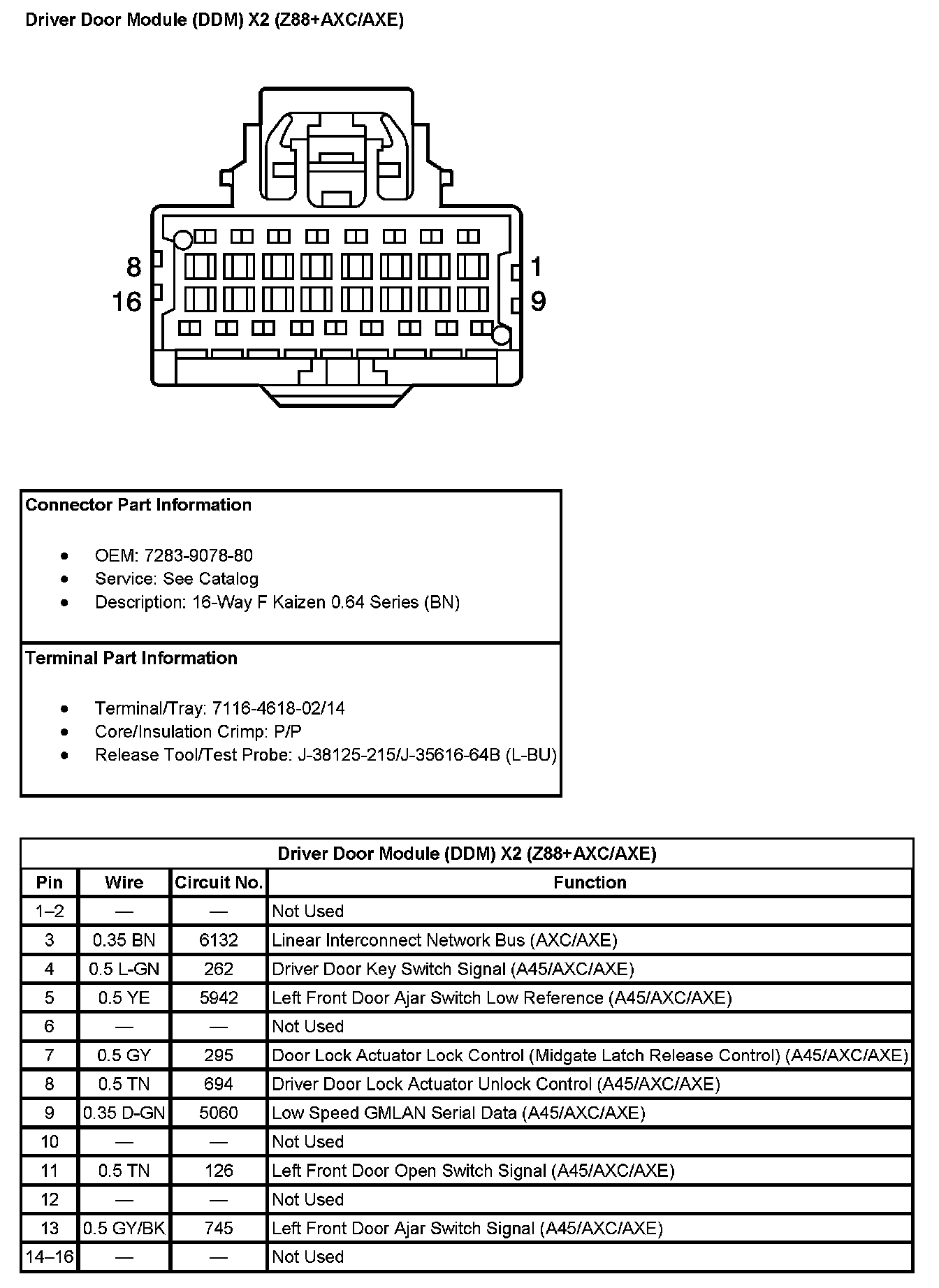

Driver Door Module (DDM) X2 (With RPO Code Z88+AXC & AXE):
