Passenger Door Module (PDM) X1

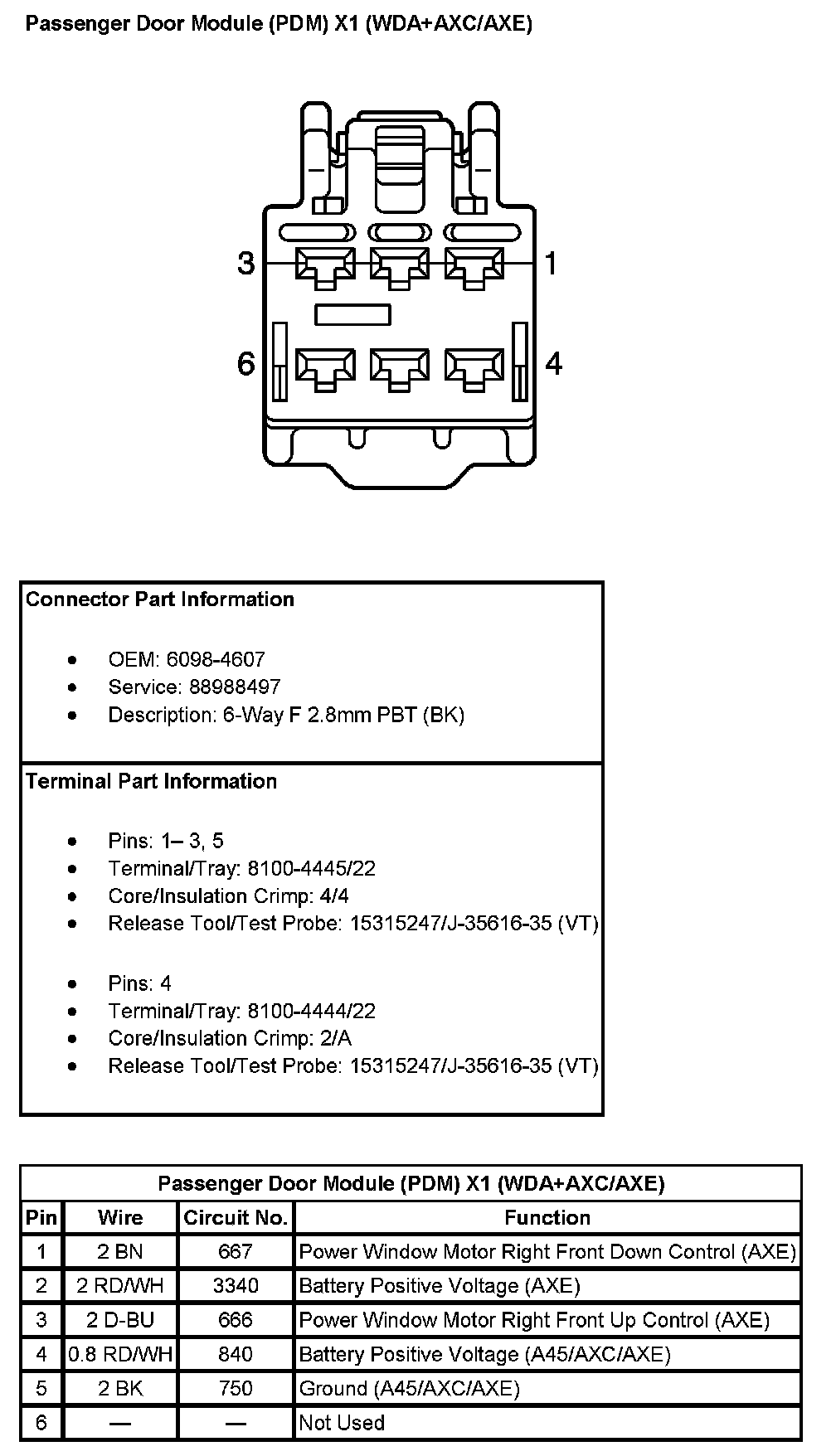

Passenger Door Module (PDM) X1 (With RPO Code WDA+AXC & AXE):

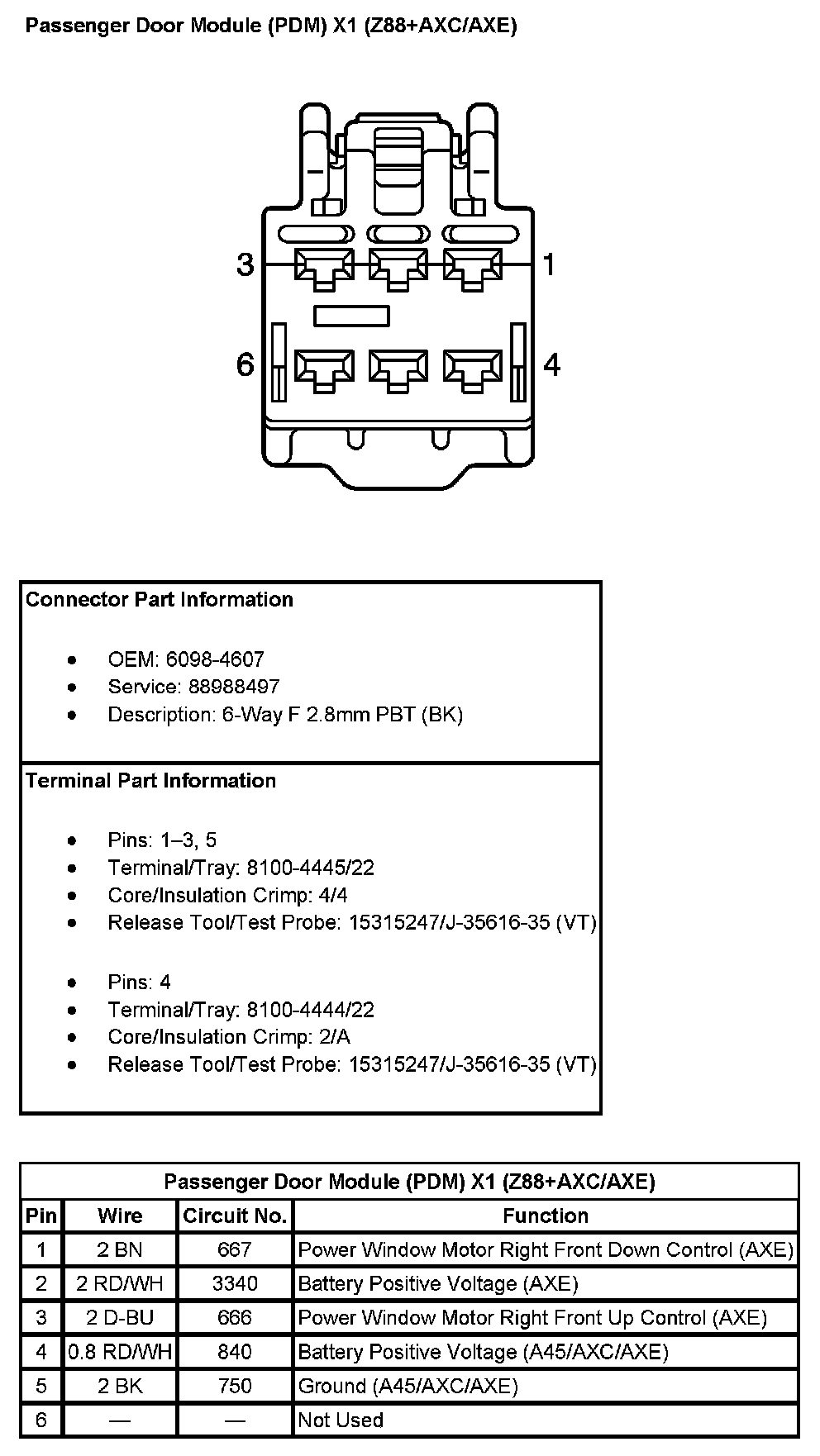

Passenger Door Module (PDM) X1 (With RPO Code Z88+AXC / AXE):
