HVAC - Automatic



HVAC Connector End Views

Blower Motor Control Module - Auxiliary X1














Blower Motor Control Module - Auxiliary X2














HVAC Control Module X1














HVAC Control Module X2 (WDA)














HVAC Control Module X2 (Z88)

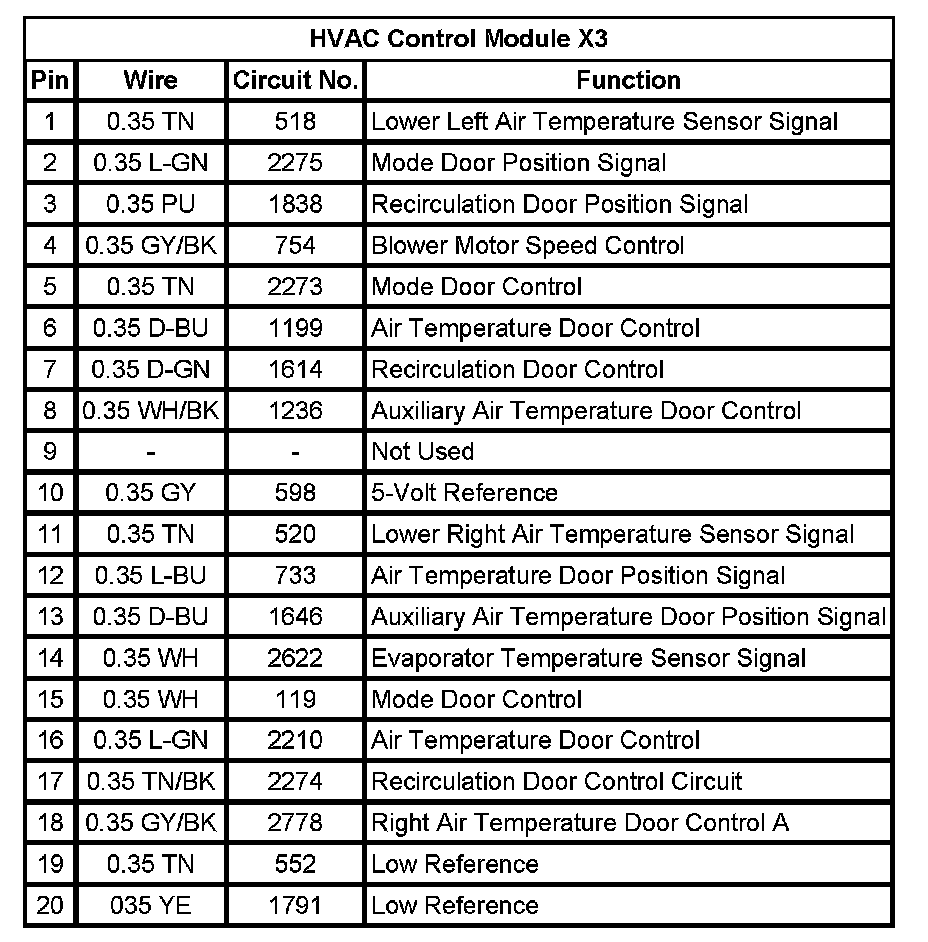

HVAC Control Module X3














HVAC Control Module X4 (WDA)














HVAC Control Module X4 (Z88)
