HVAC - Manual
HVAC Connector End Views
Blower Motor Control Module - Auxiliary X1
Blower Motor Control Module - Auxiliary X2
Blower Motor Control Module X1
Blower Motor Control Module X2
HVAC Control Module X1 (WDA)
HVAC Control Module X1 (Z88)
HVAC Control Module X2 (WDA)
HVAC Control Module X2 (Z88)

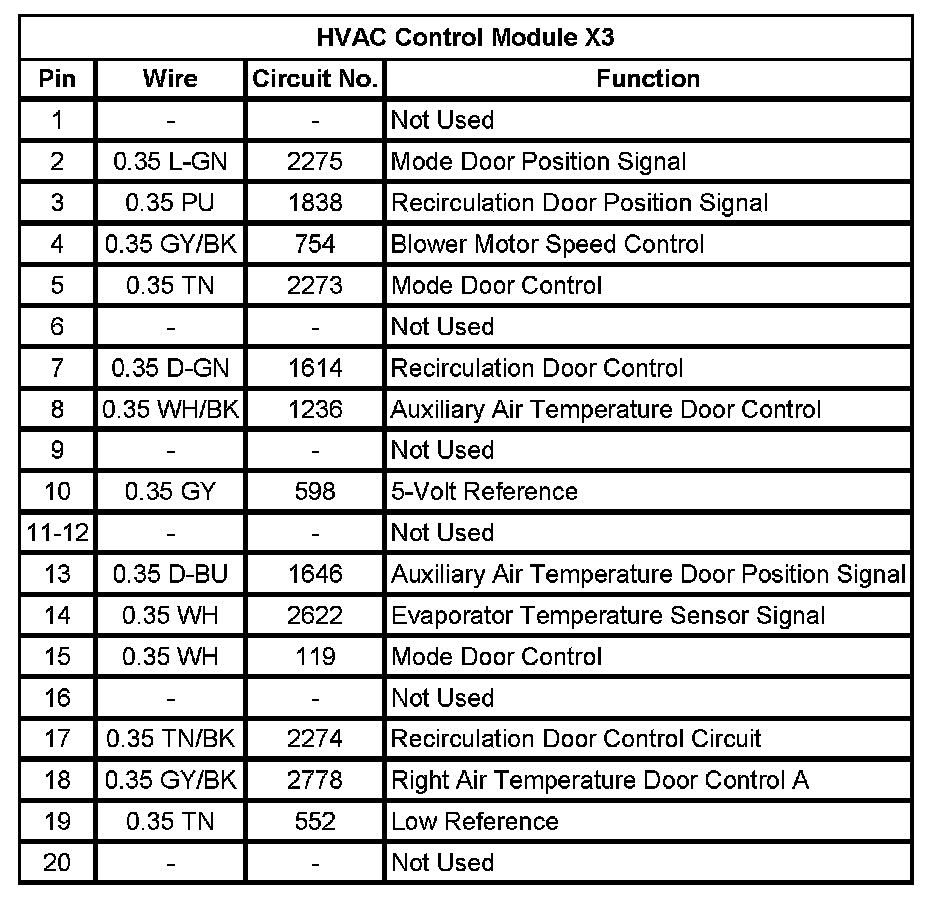

HVAC Control Module X3
HVAC Control Module X4
