Impact Sensor

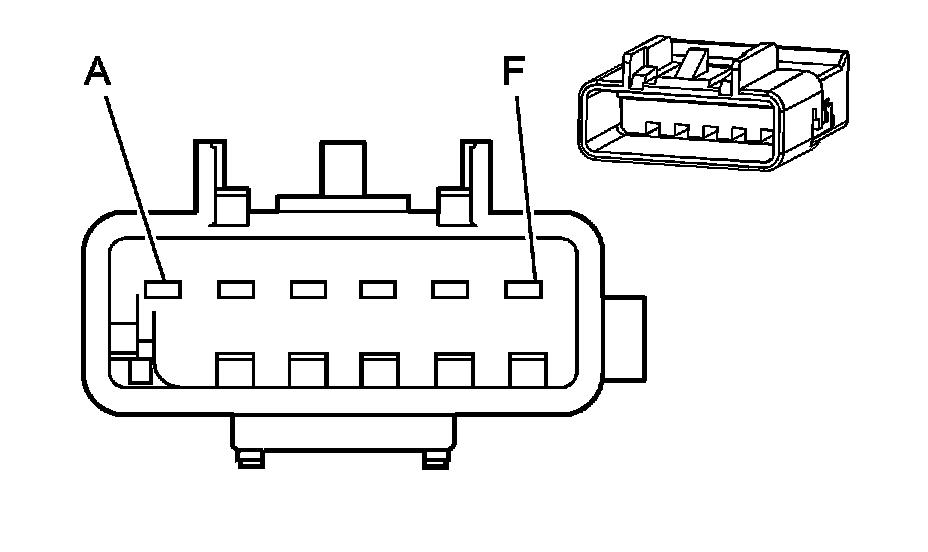

SIR Connector End Views

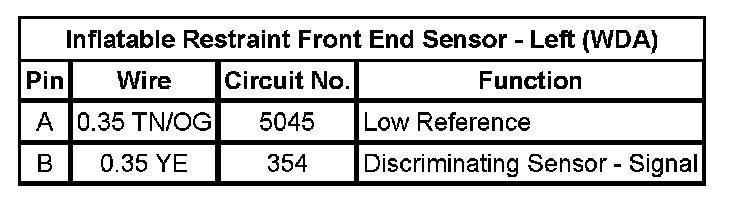

Inflatable Restraint Front End Sensor - Left (WDA)














Inflatable Restraint Front End Sensor - Left (Z88)

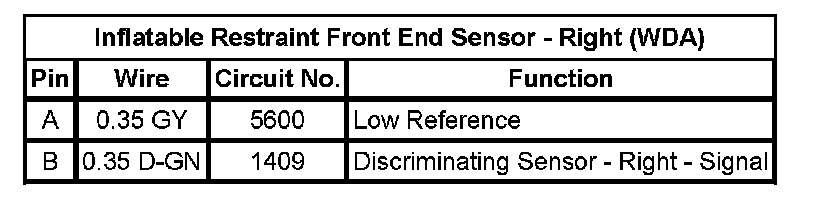

Inflatable Restraint Front End Sensor - Right (WDA)

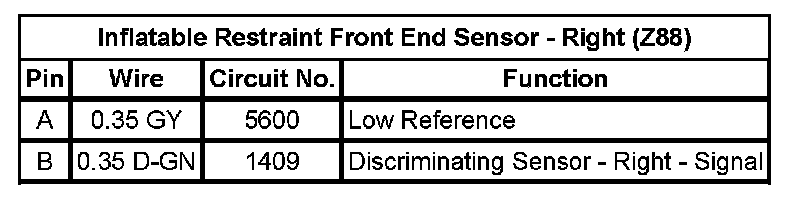

Inflatable Restraint Front End Sensor - Right (Z88)














Inflatable Restraint Front Passenger Presence System (PPS) Sensor (AAQ/AG2)

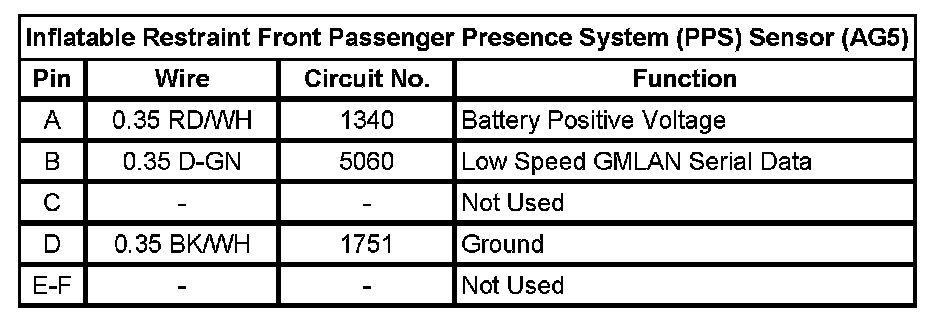

Inflatable Restraint Front Passenger Presence System (PPS) Sensor (AG5)

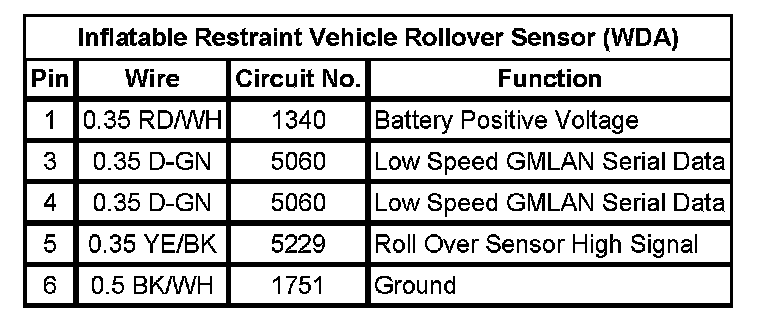

Inflatable Restraint Vehicle Rollover Sensor (WDA)

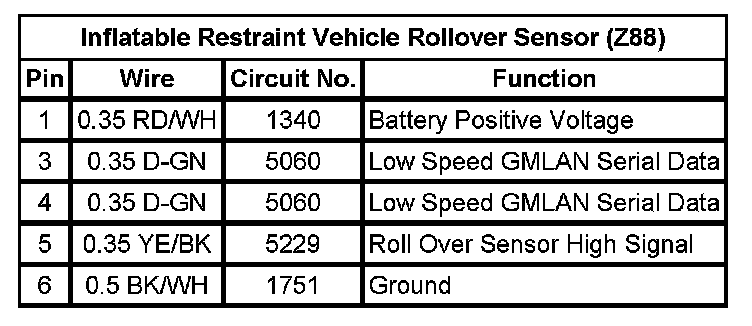

Inflatable Restraint Vehicle Rollover Sensor (Z88)
