Seat Temperature Control Module

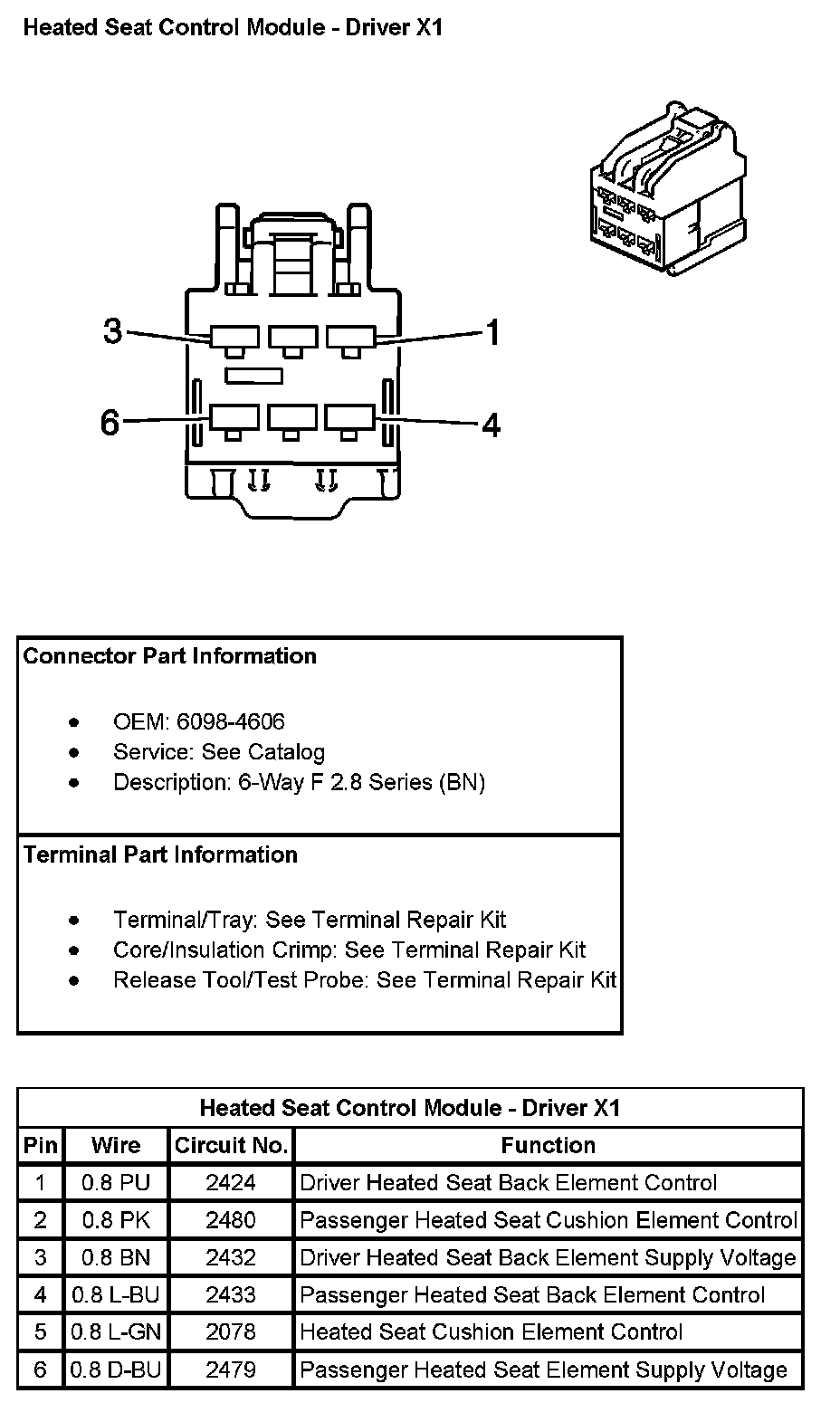

Heated Seat Control Module - Driver X1:

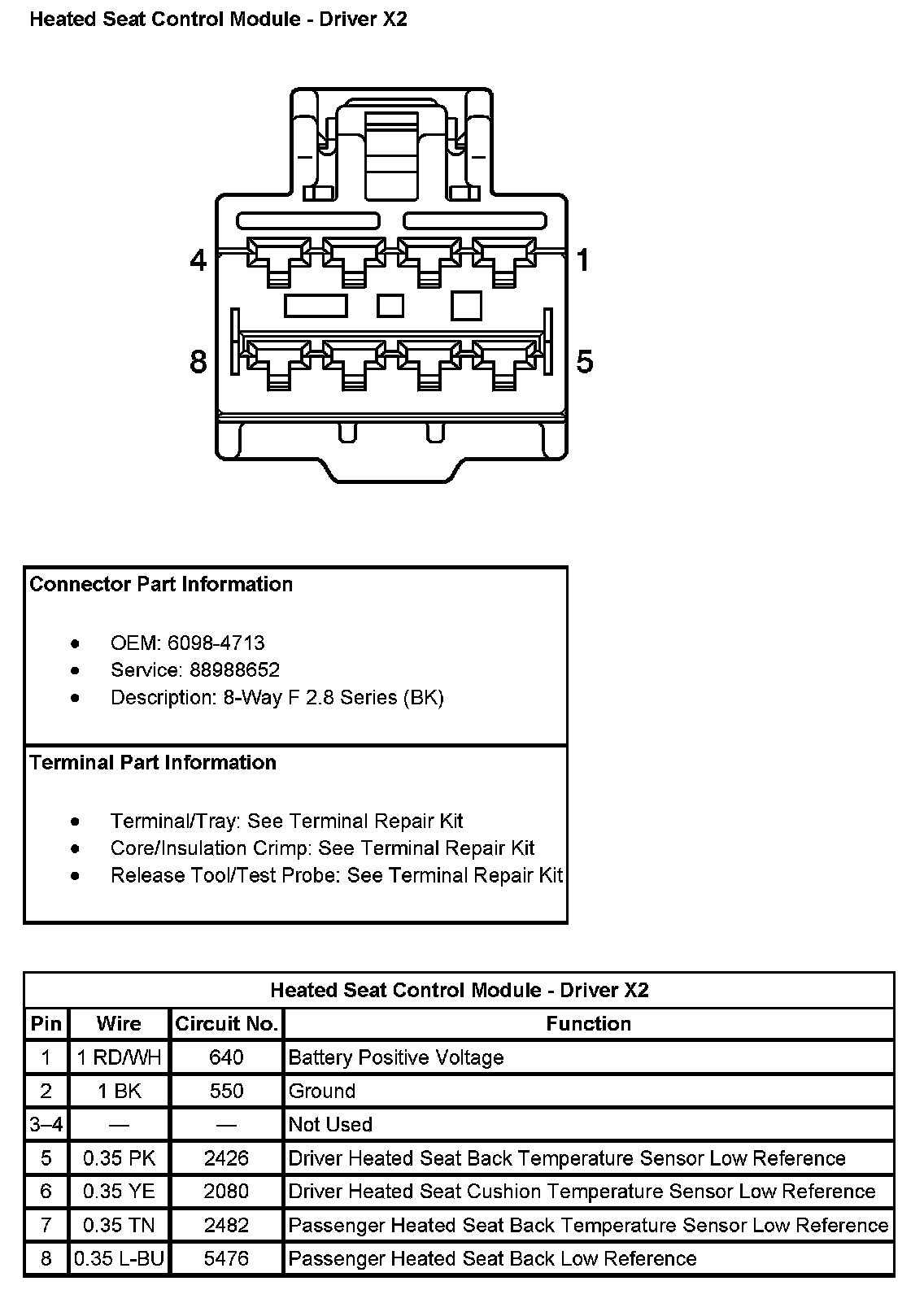

Heated Seat Control Module - Driver X2:

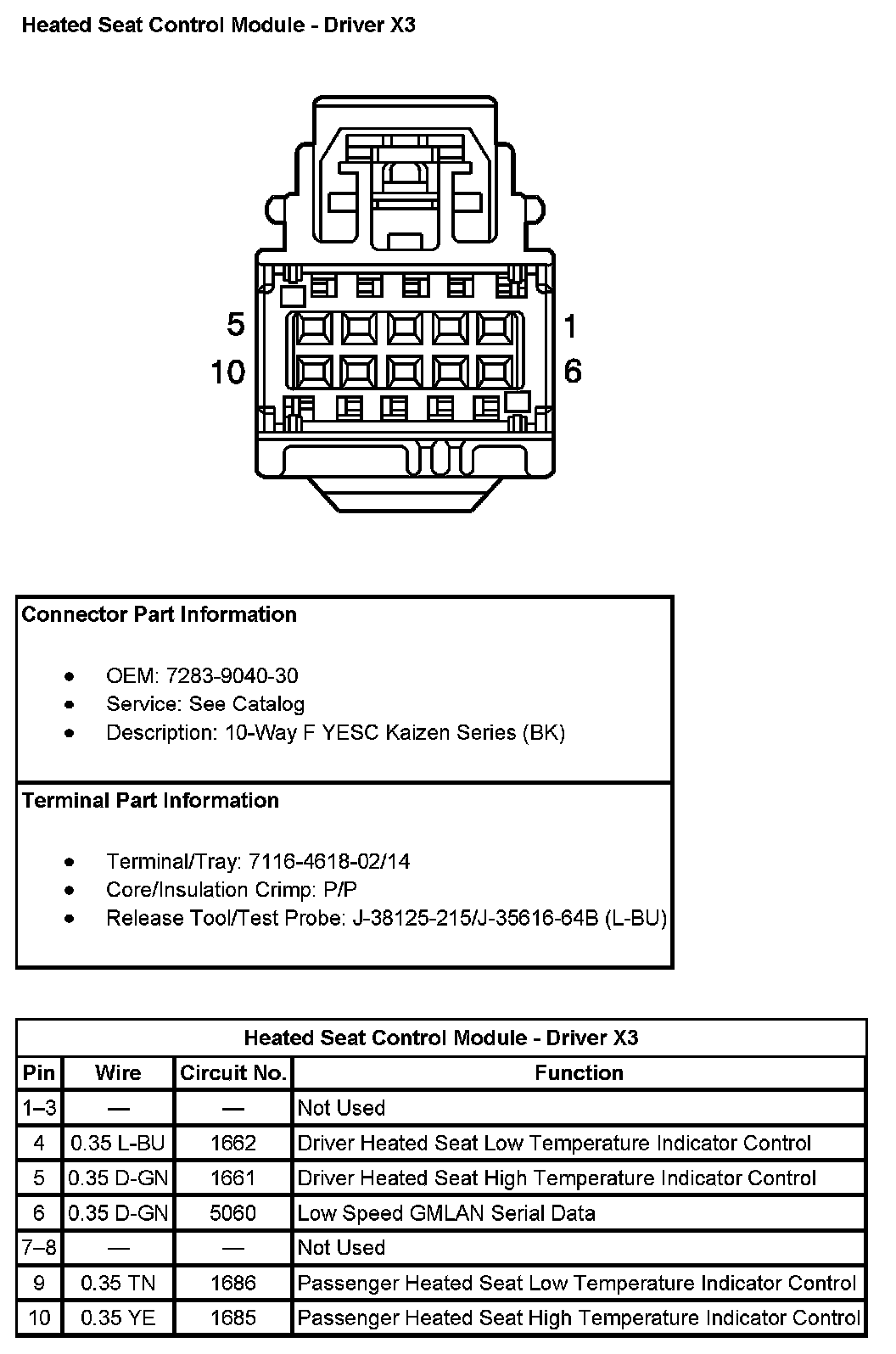

Heated Seat Control Module - Driver X3:

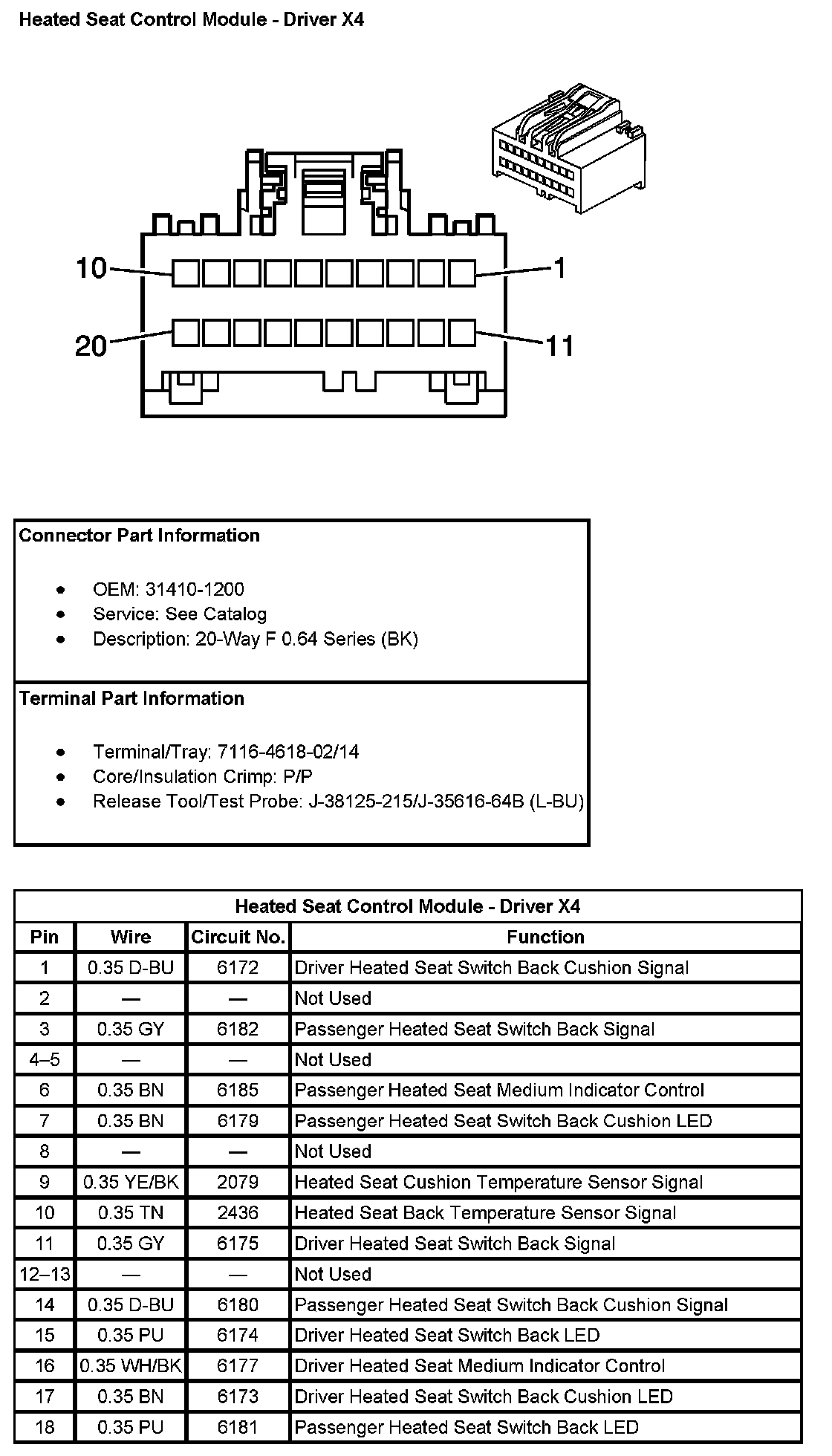

Heated Seat Control Module - Driver X4 (Pin 1 To 18):

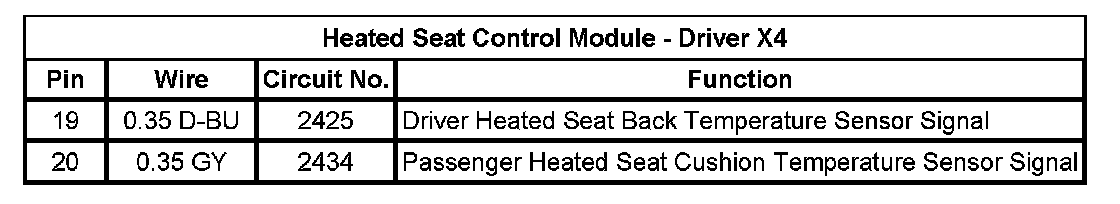

Heated Seat Control Module - Driver X4 (Pin 19 To 20):
