Control Module HVAC: Locations

HVAC Component Views

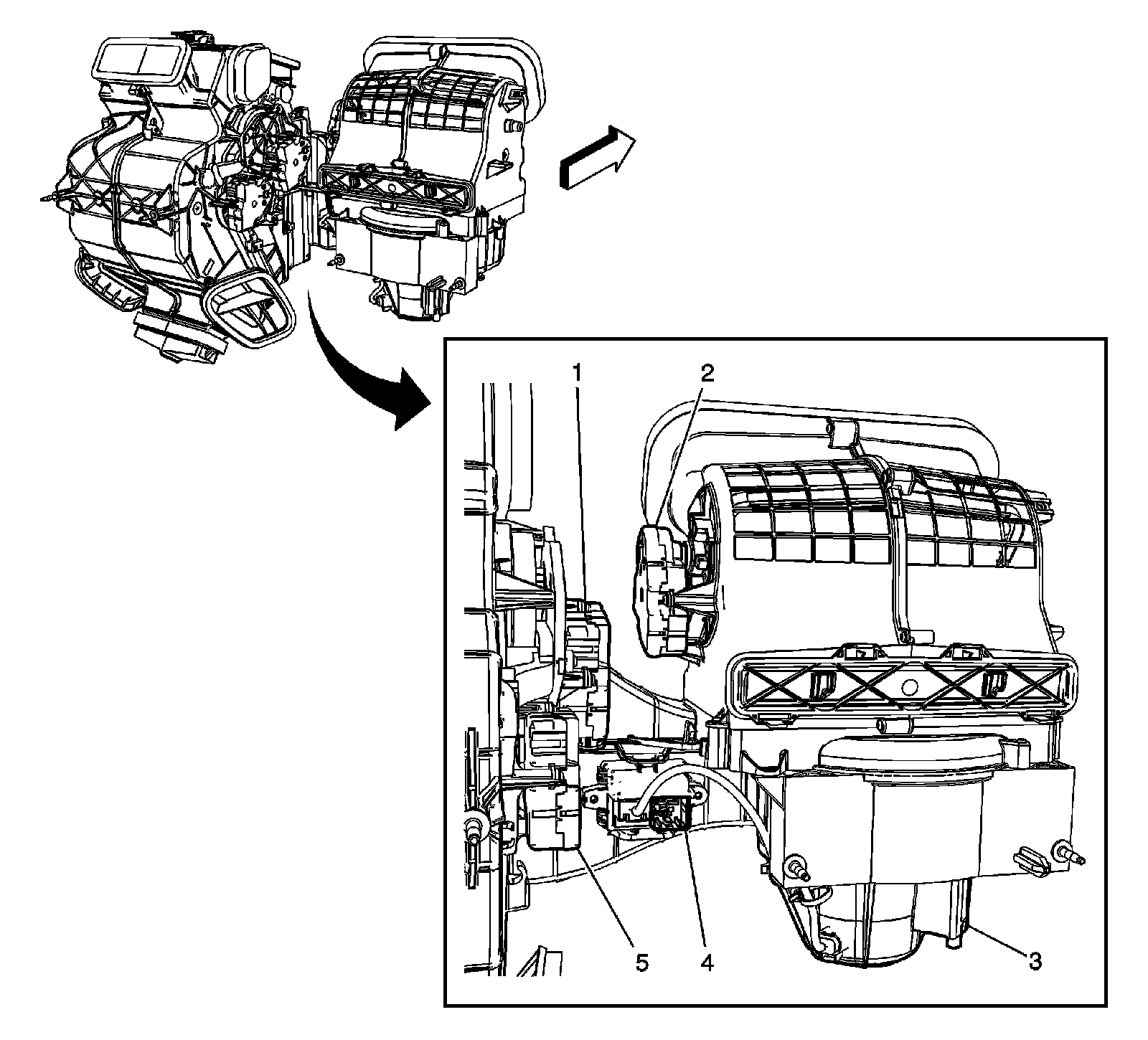

Front HVAC Module (C67)




1 - Mode Actuator
2 - Recirculation Actuator
3 - Blower Motor
4 - Blower Motor Control Module
5 - Air Temperature Actuator (C67)

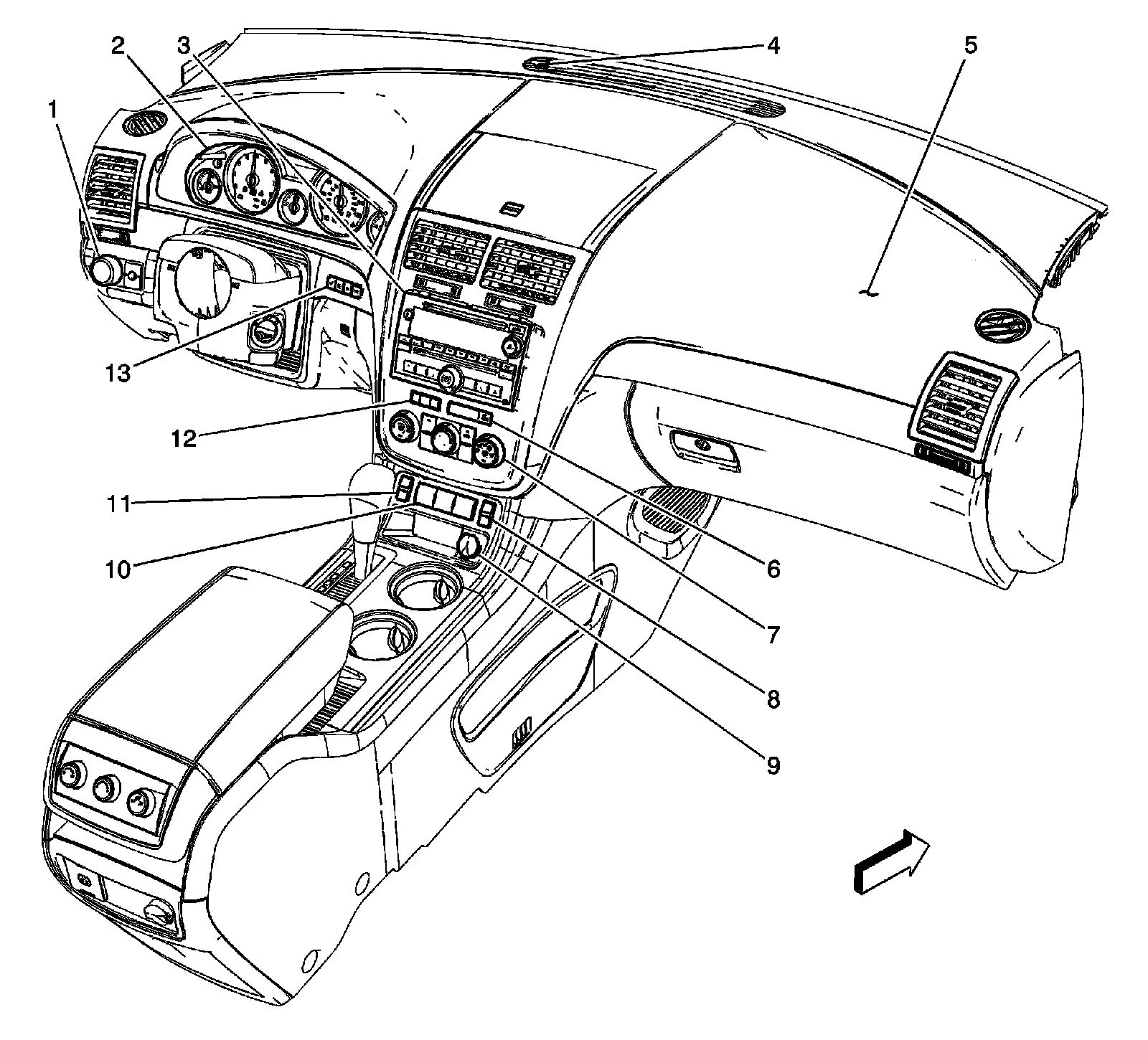

I/P Components




1 - Headlamp Switch
2 - Instrument Panel Cluster (IPC)
3 - Radio
4 - Sunload Sensor (CJ2) / Ambient Light Sensor (C67)
5 - I/P Trim
6 - Inflatable Restraint Passenger Air Bag ON/OFF Indicator
7 - HVAC Control Module
8 - Heated Seat Switch - Passenger (KA1)
9 - Auxiliary Power Outlet - I/P
10 - I/P Switch Assembly
11 - Heated Seat Switch - Driver (KA1)
12 - Hazard Switch
13 - Driver Information Center (DIC) Switch (UH9)

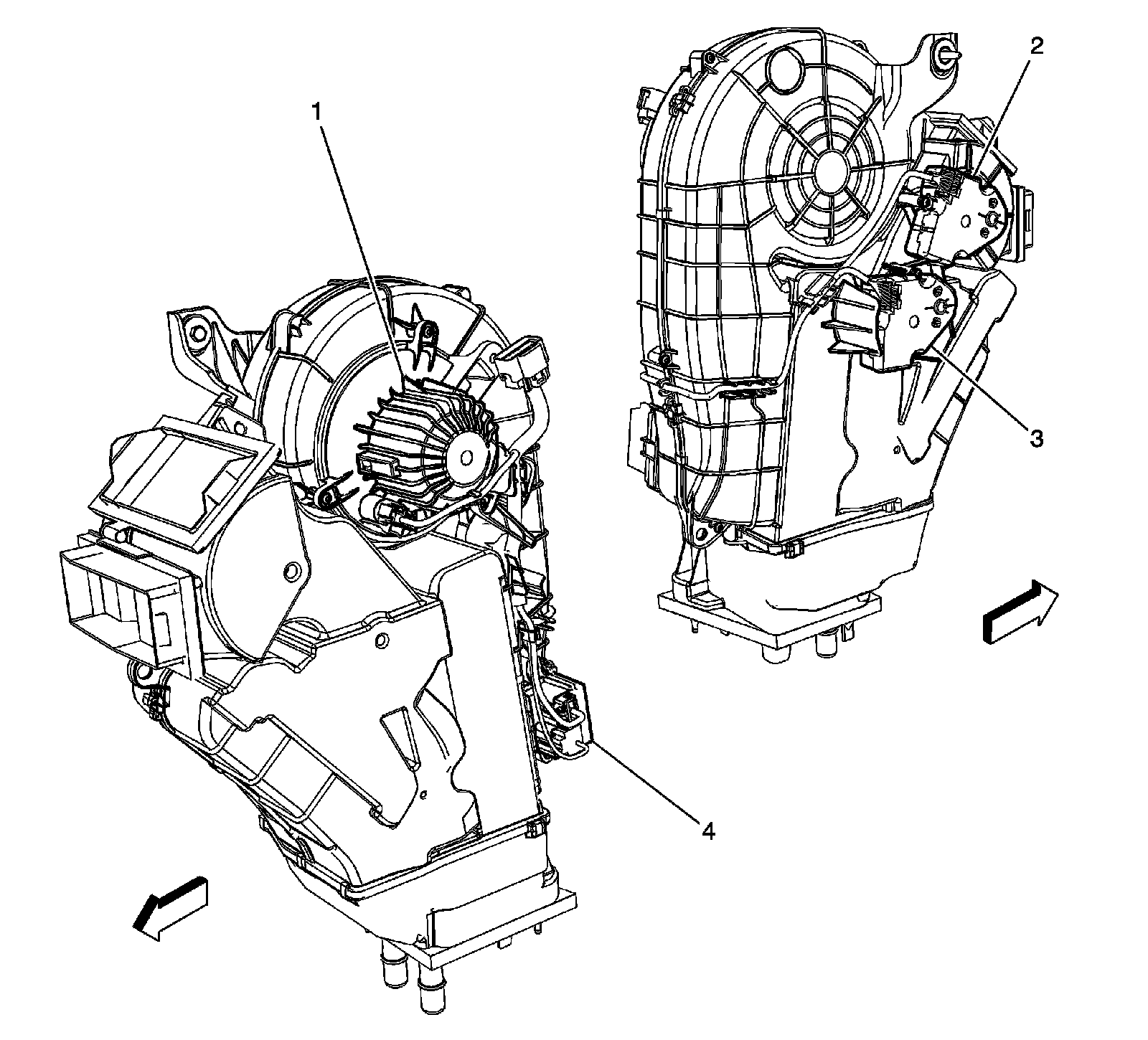

Interior HVAC Module - Rear




1 - Blower Motor - Auxiliary
2 - Mode Actuator - Auxiliary
3 - Air Temperature Actuator - Auxiliary
4 - Blower Motor Control Module - Auxiliary

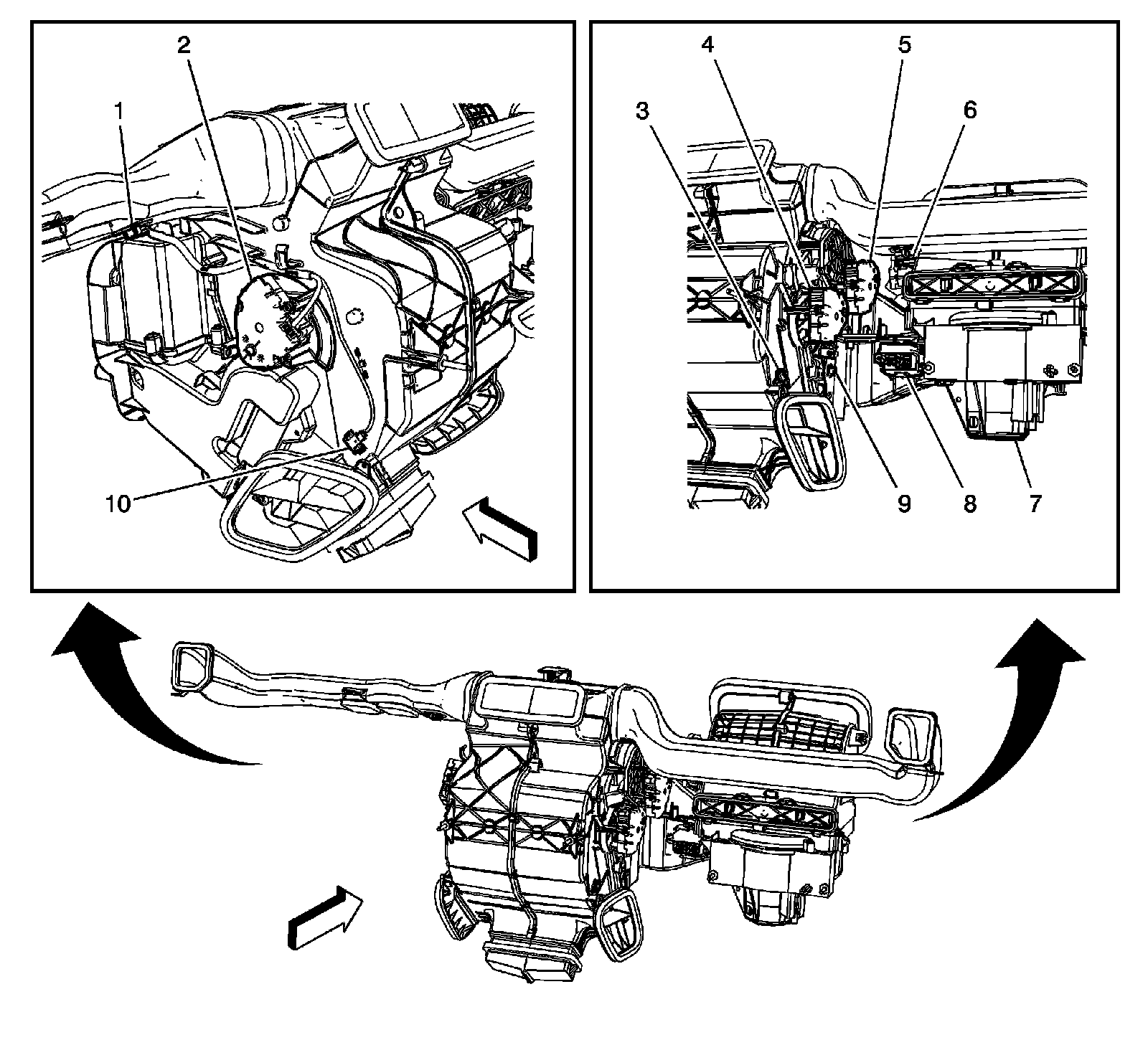

Interior HVAC Module - Front




1 - Air Temperature Sensor - Upper Left
2 - Air Temperature Actuator - Left
3 - Air Temperature Sensor - Lower Right
4 - Air Temperature Actuator - Right
5 - Mode Actuator
6 - Air Temperature Sensor - Upper Right
7 - Blower Motor
8 - Blower Motor Control Module
9 - Evaporator Temperature Sensor
10 - Air Temperature Sensor - Lower Left
