Engine Control Module (ECM) X2

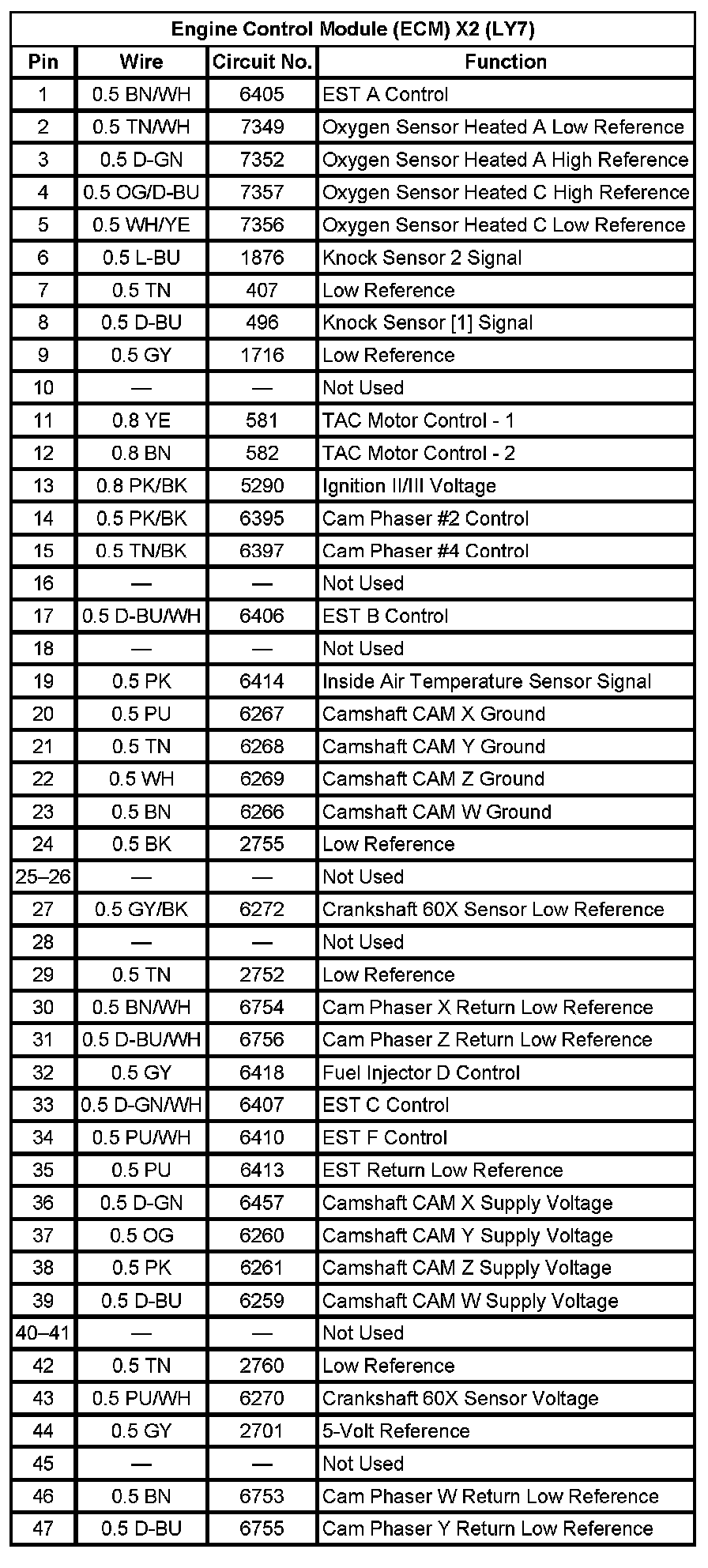

Engine Control Module (ECM) X2 (Part 1):

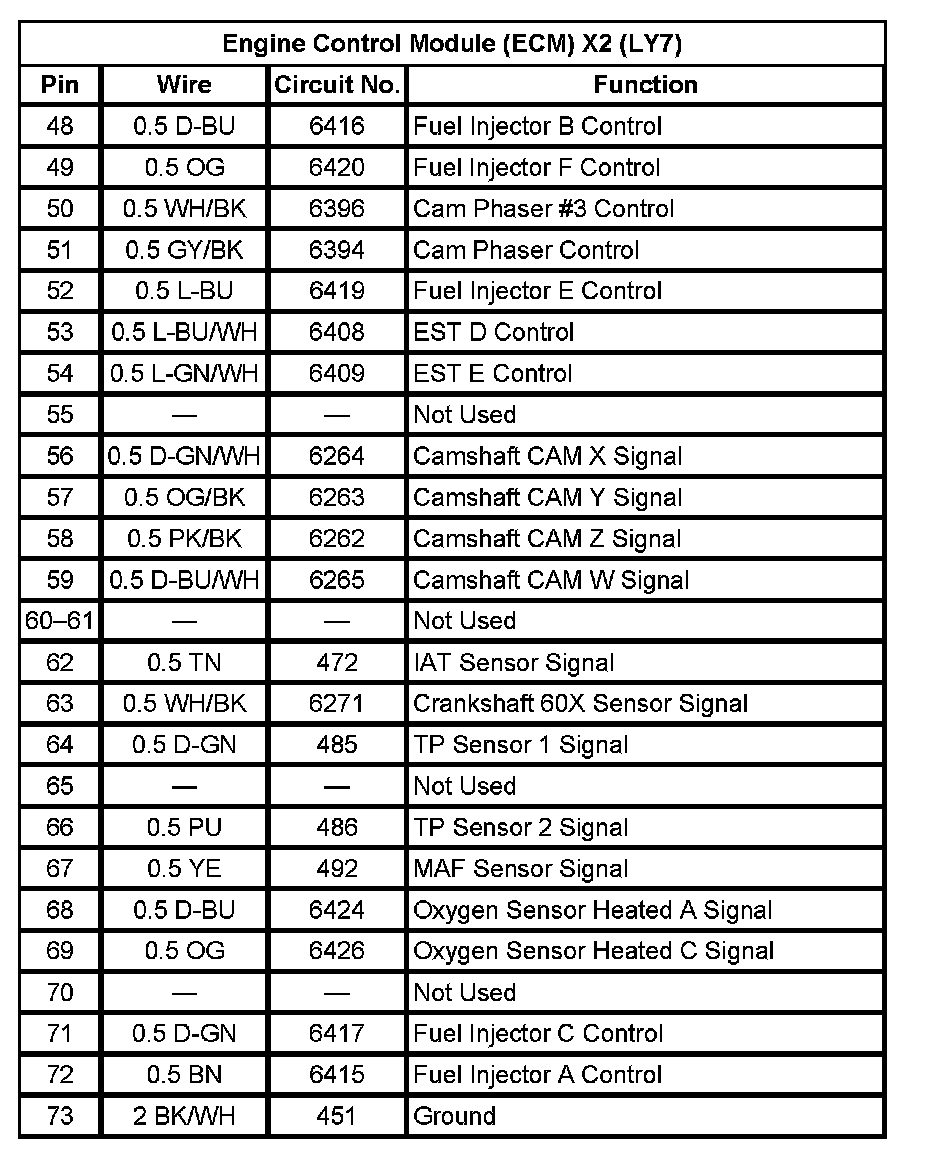

Engine Control Module (ECM) X2 (Part 2):

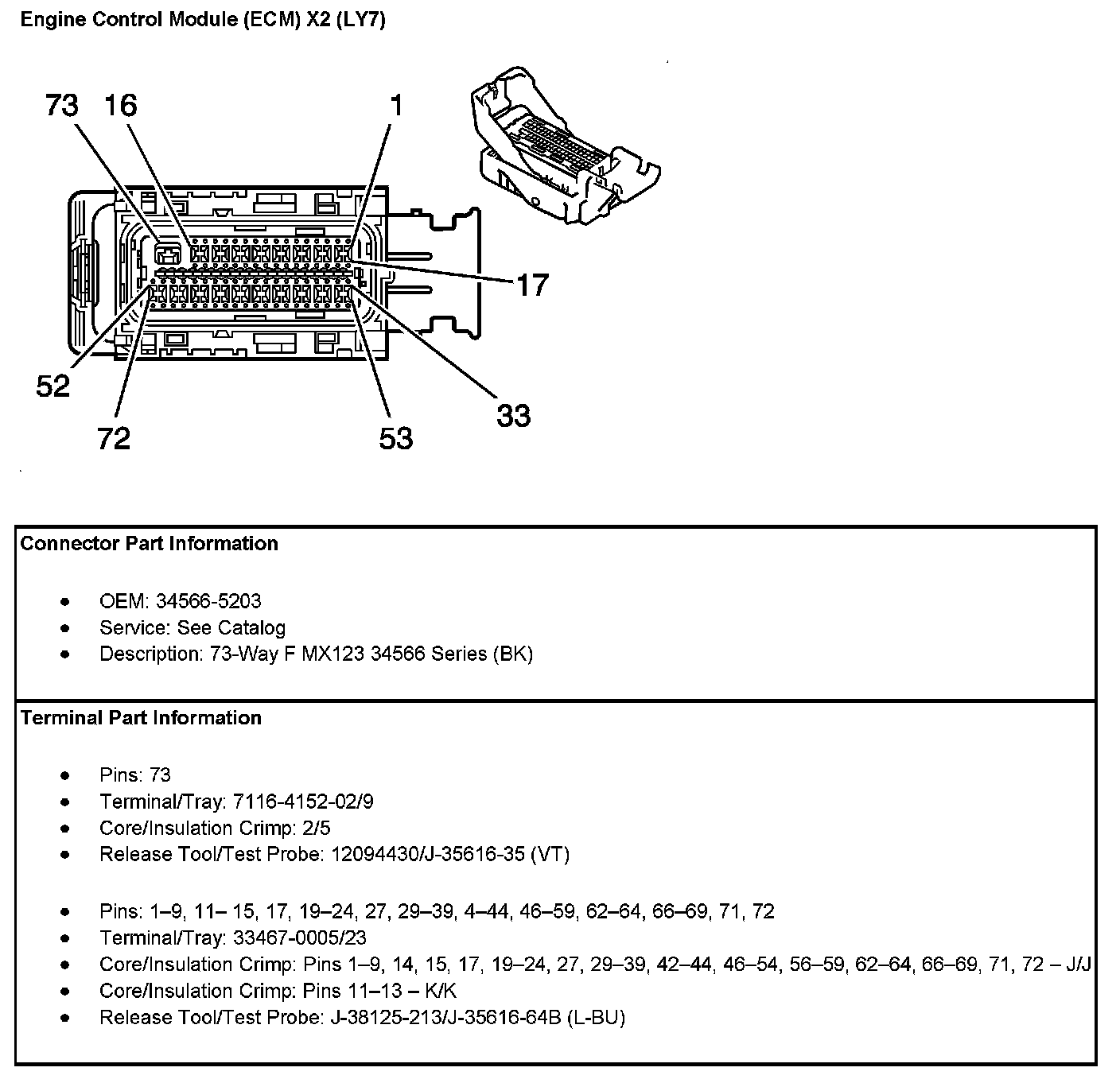

Engine Control Module (ECM) X2 (Part 3):
