Control Module: Diagrams



Transfer Case Control Connector End Views

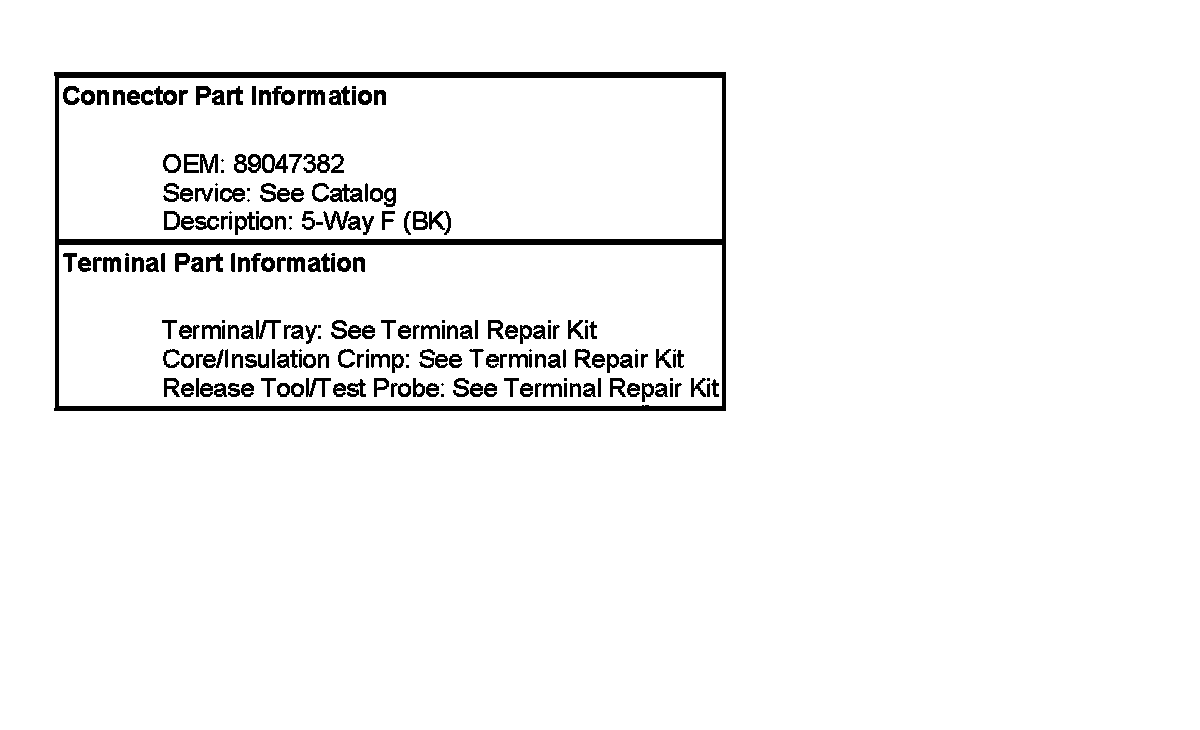

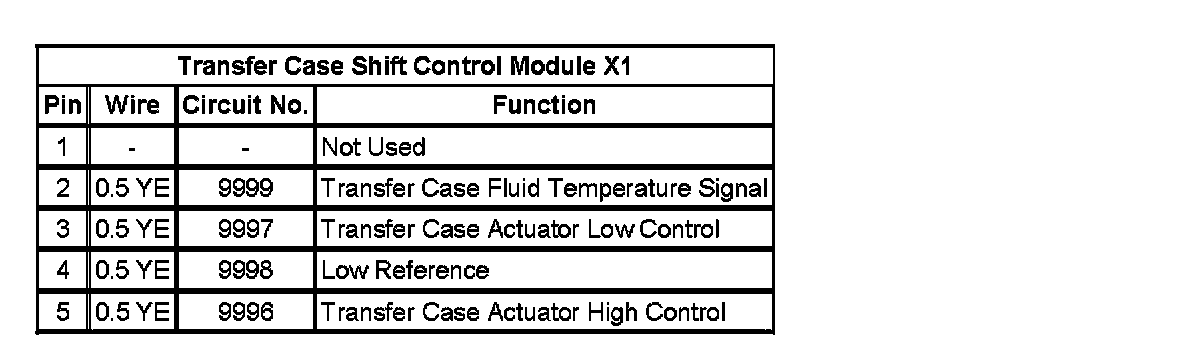

Transfer Case Shift Control Module X1:

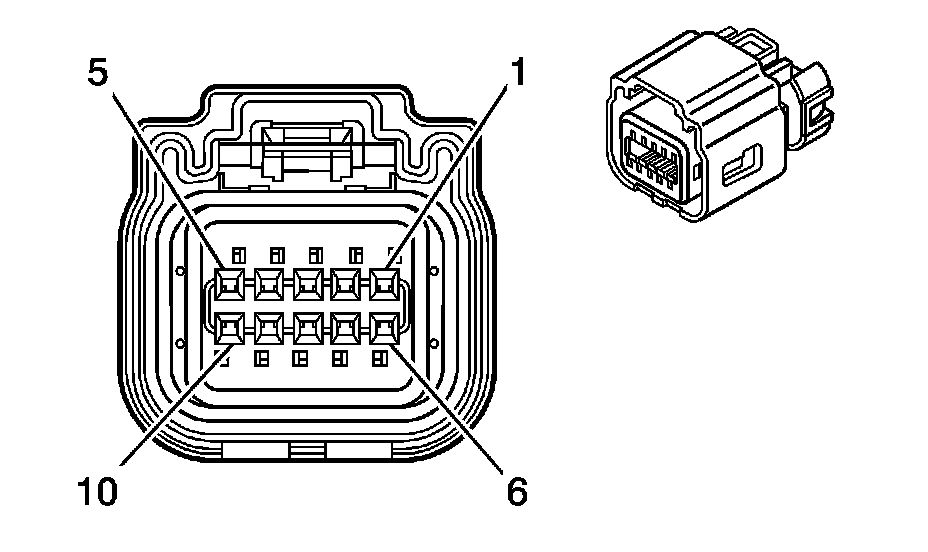

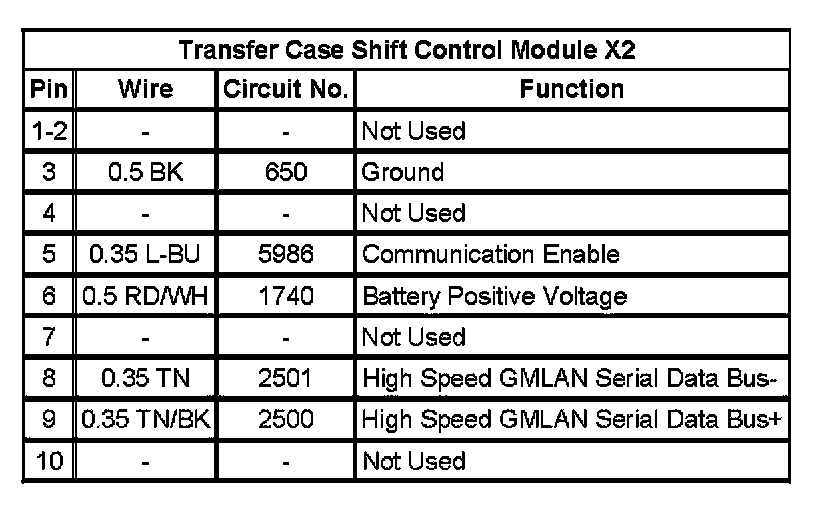

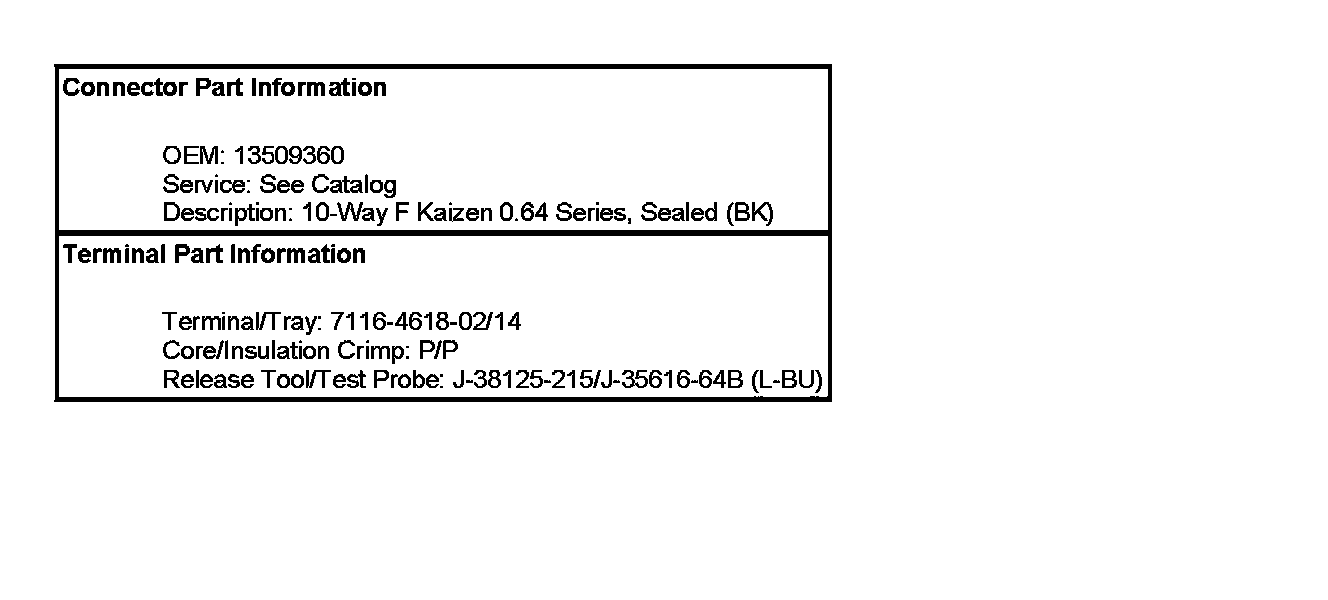

Transfer Case Shift Control Module X2:
