Control Module: Locations

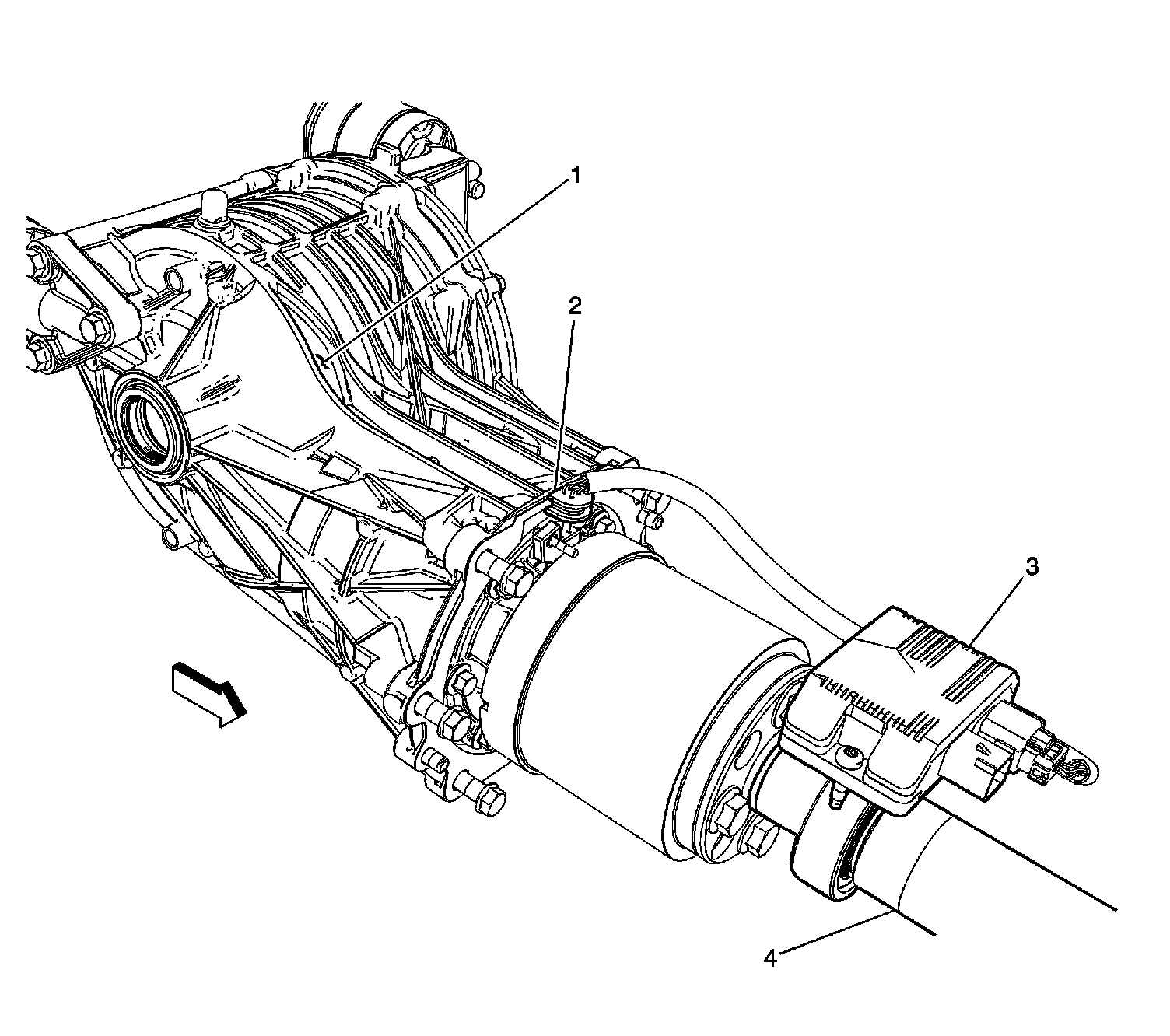

Transfer Case Control Component Views





1 - Rear Differential
2 - Differential Clutch Pump Actuator Check Valve (MH6)
3 - Transfer Case Shift Control Module (MH6)
4 - Drive Axle
