Rear Video/Audio/HVAC Module X2 (UK6)

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

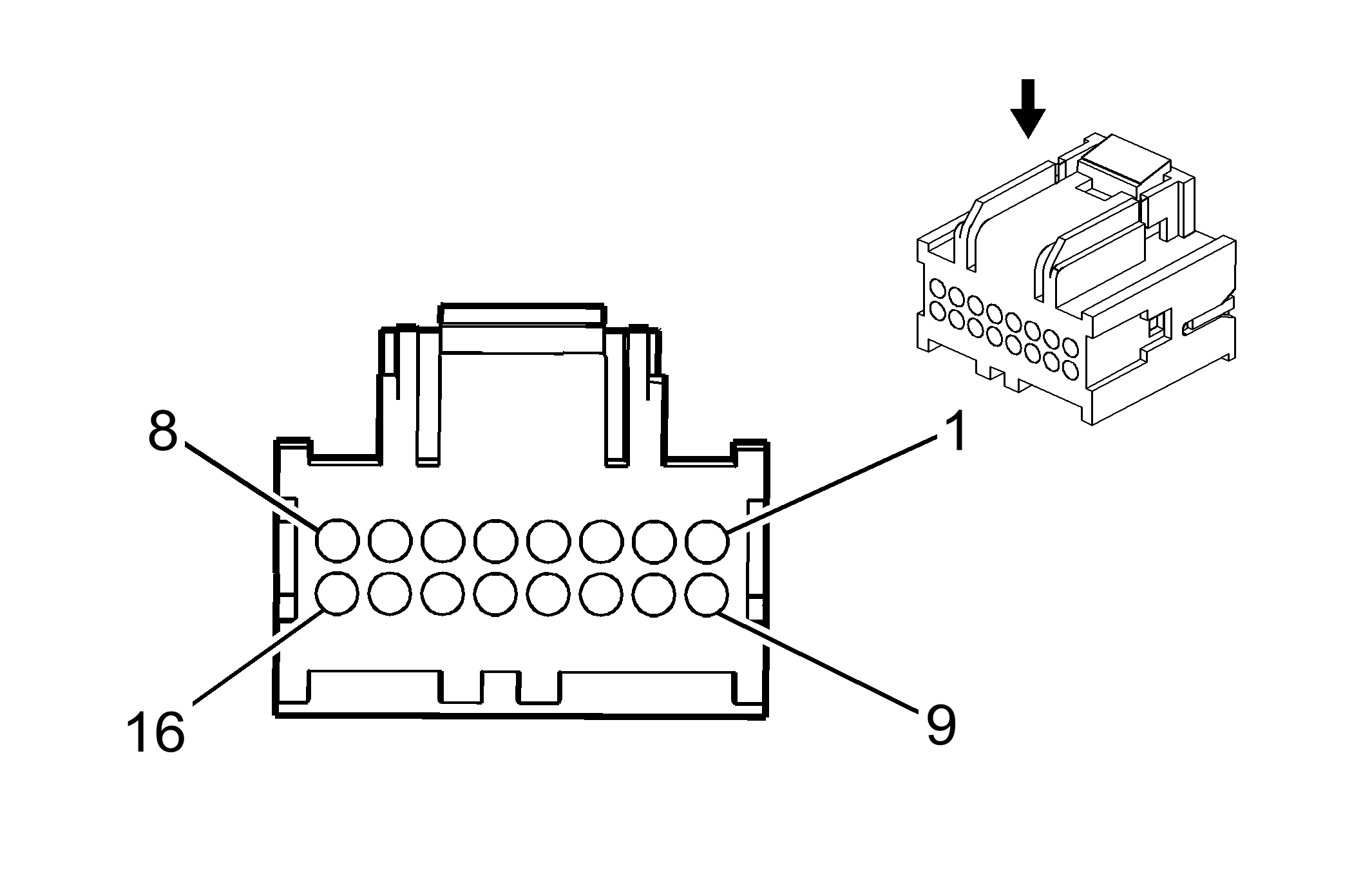

Fig 1: Rear Video/Audio/HVAC Module X2 (UK6) Connector End View

Courtesy of GENERAL MOTORS CORP.

Rear Video/Audio/HVAC Module X2 (UK6) Connector Parts Information

Connector Part Information

OEM: 15394152
Service: 19115676
Description: 16-Way F Micro-Pack 064 Series (BK)

Terminal Part Information

Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Rear Video/Audio/HVAC Module X2 (UK6) Connector Terminal Identification

Pin	Wire	Circuit No.	Function
1	0.5 BN/WH	599	Left Rear Low Level Audio Signal (+)
2	0.5 BN	1999	Left Rear Low Level Audio Signal (-)
3	0.5 D-BU	546	Right Rear Low Level Audio Signal (+)
4	0.5 TN	1946	Right Rear Low Level Audio Signal (-)
5	0.35 BARE	1574	Drain Wire
6-8	-	-	Not Used
9	0.5 L-BU	5312	RSA Left Audio Signal
10	0.5 BN	5314	RSA Audio Common Signal
11	0.5 L-GN	5313	RSA Right Audio Signal
12	0.5 TN/WH	5830	Remote Infra Red Signal (-)
13	0.35 BARE	6759	Discrete Audio Drain Wire
14-16	-	-	Not Used
