Remote Function Component Views
WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

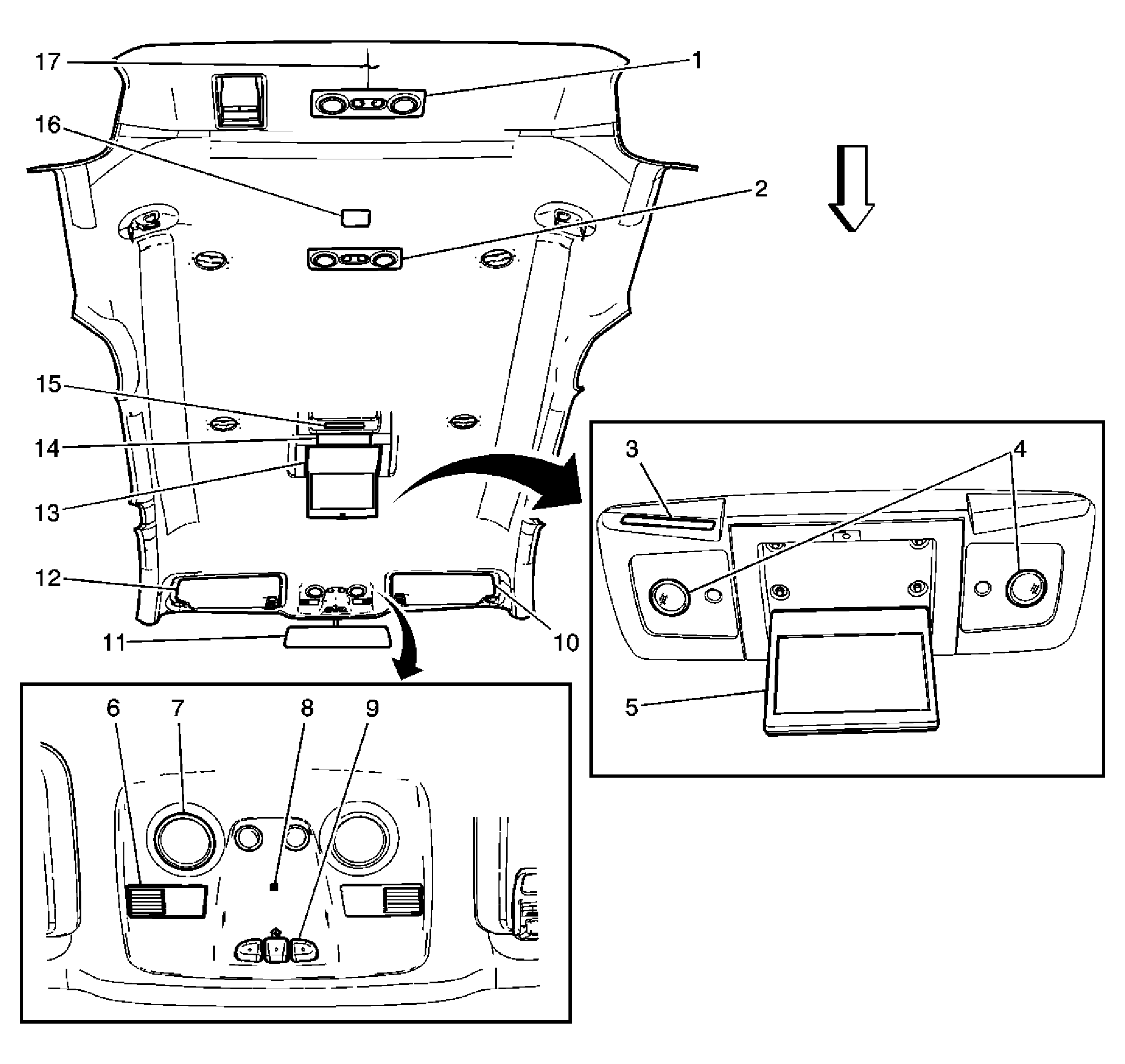

| Callout |
Component Name |
| 1 |
Courtesy/Reading Lamp - Front |
| 2 |
Sunroof Shade Switch (C3U) |
| 3 |
Console Flood Lamp |
| 4 |
Garage Door Opener (UG1) |
| 5 |
Sunroof Switch (C3U) |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Courtesy/Reading Lamp - Rear |
| 2 |
Courtesy/Reading Lamp Center |
| 3 |
Courtesy/Reading Lamp - Front |
| 4 |
Front Overhead Console Assembly |
| 5 |
Garage Door Opener (UG1) |
| 6 |
Cellular Microphone (UE1) |
| 7 |
Digital Video Disc (DVD) Player (U42) |
