Object Detection Component Views
WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

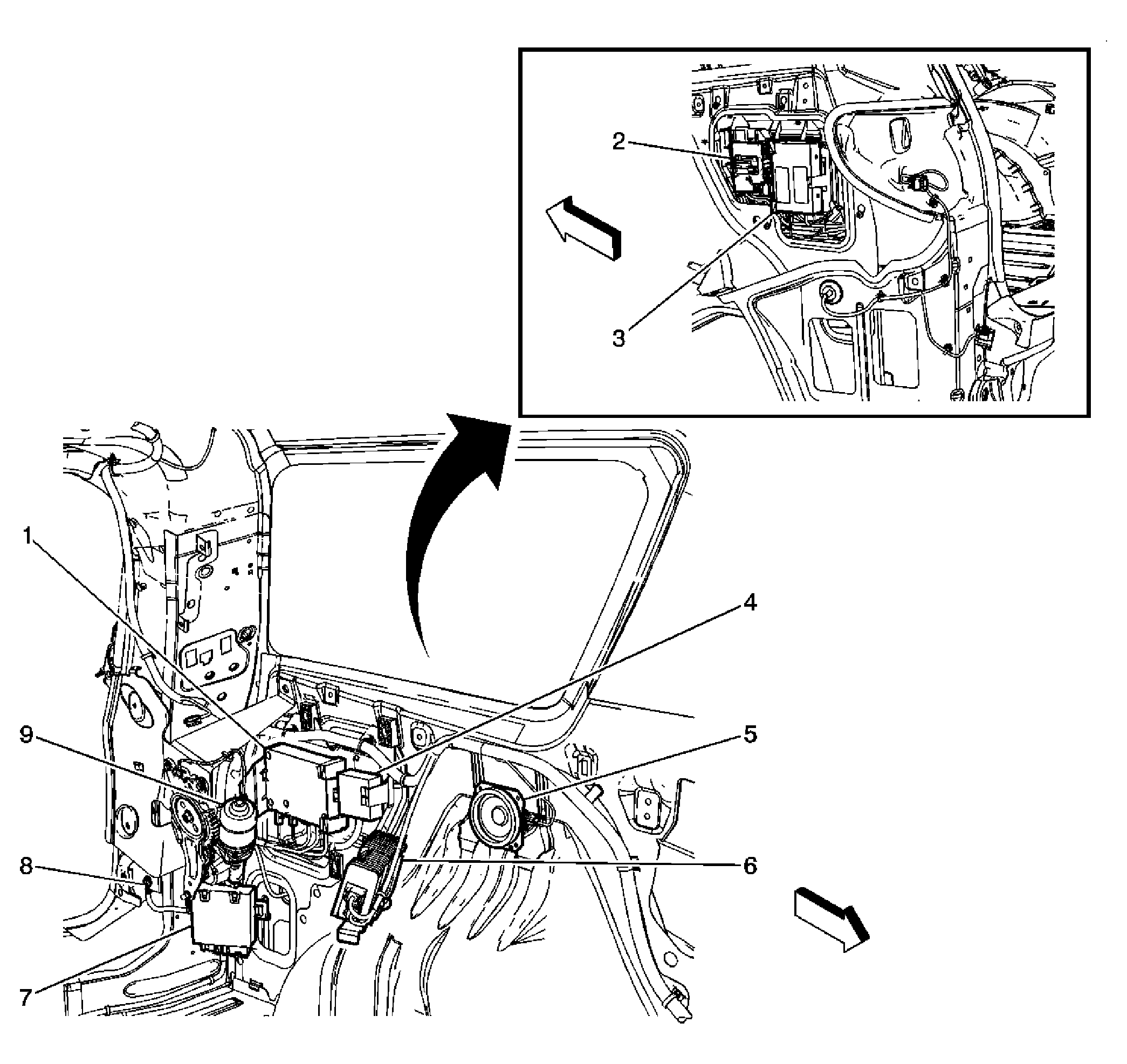

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Vehicle Communication Unit (VCU) (UE1) |
| 2 |
Rear Parking Assist (RPA) Module (UD7) |
| 3 |
Digital Radio Receiver (U2K) |
| 4 |
Speaker - LR (UQA/UQ6/UQS) |
| 5 |
Accessory AC/DC Power Control Module (KV1) |
| 6 |
Liftgate Module (LGM) (E61) |
| 7 |
G401 |
| 8 |
Liftgate Motor Assembly (E61) |

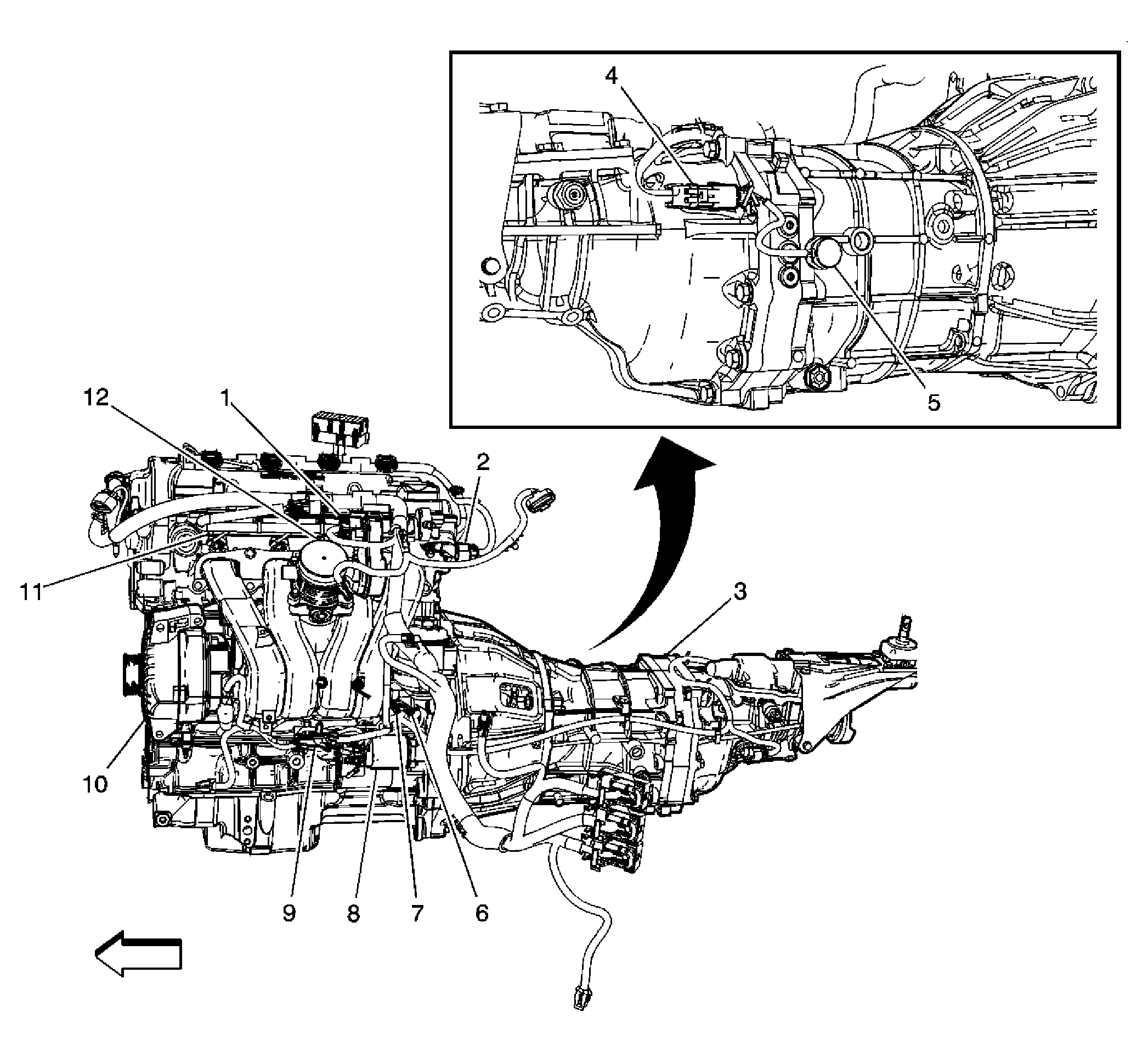

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Throttle Body |
| 2 |
Camshaft Position (CMP) Sensor 1 (Intake) |
| 3 |
Manual Transmission |
| 4 |
Vehicle Speed Sensor (VSS) |
| 5 |
Backup Lamp Switch |
| 6 |
Crankshaft Position (CKP) Sensor |
| 7 |
Engine Oil Pressure (EOP) Sensor |
| 8 |
Starter |
| 9 |
Knock Sensor Pigtail Connector |
| 10 |
Generator |
| 11 |
Fuel Injector Rail |
| 12 |
Manifold Absolute Pressure (MAP) Sensor |
