Automatic Level Control Inflator Air Switch Replacement

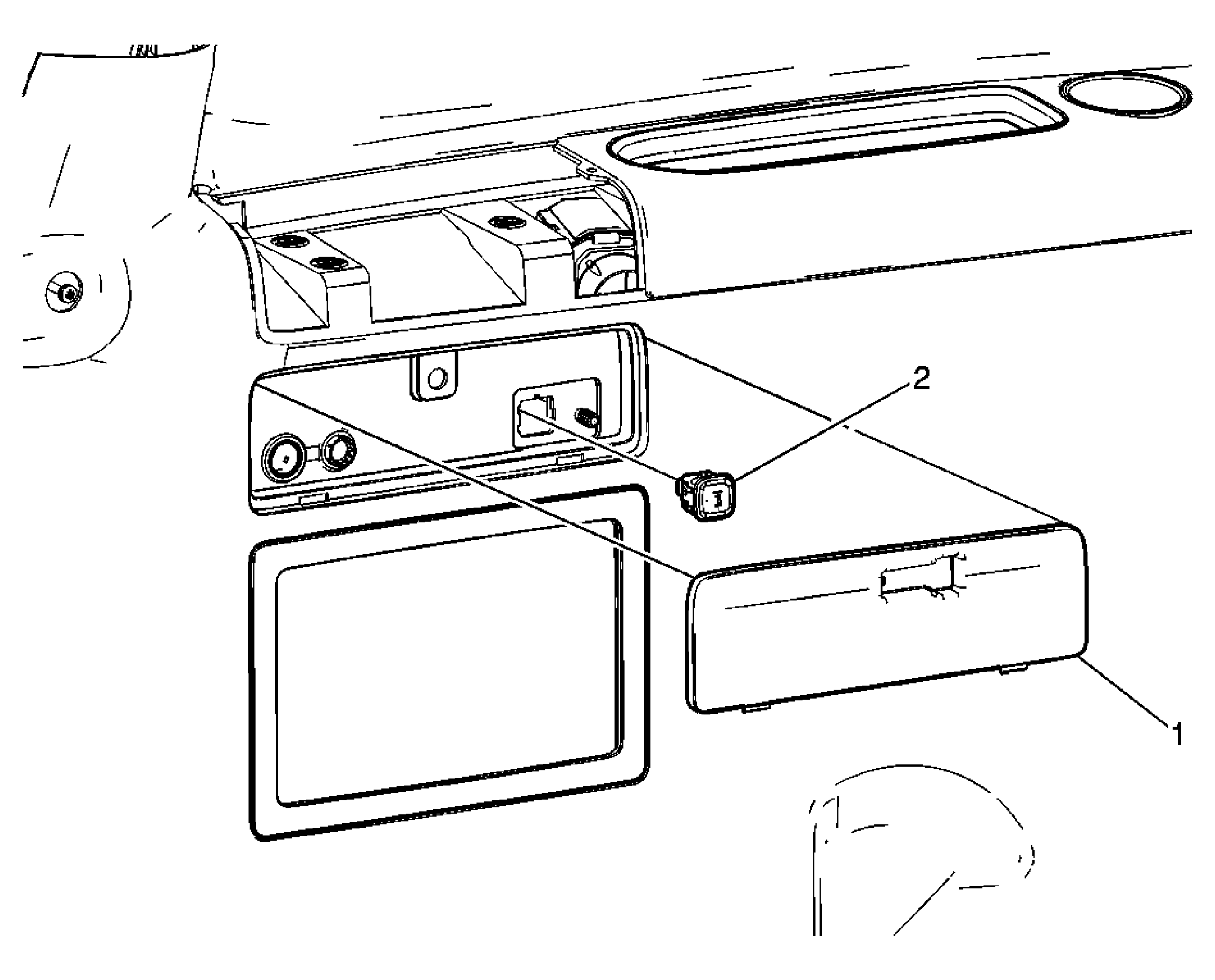

Fig 1: Identifying Level Control Inflator Air Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the seat belt retractor trim cover. Refer to Rear Seat Belt Retractor Trim Cover Replacement .
1	Inflator Access Cover
2	Inflator Solenoid Switch Tip: Access the switch through the seat belt trim cover opening. Disconnect the inflator switch electrical connector. Release the inflator switch retainer to remove the switch from the rear quarter trim panel.
