Removal Procedure

NOTE: When you are servicing the automatic level control sensor link, ensure that the sensor link and the sensor arm are not damaged. Ensure the sensor arm and the sensor link are properly oriented. Improper orientation of the sensor arm and the sensor link may cause damage to the automatic level control system or the vehicle.
  1. Remove the ELC/TRAILER fuse.
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Remove the ALC sensor connector.
  4. Remove the ALC sensor link (3) from the ball stud (1).

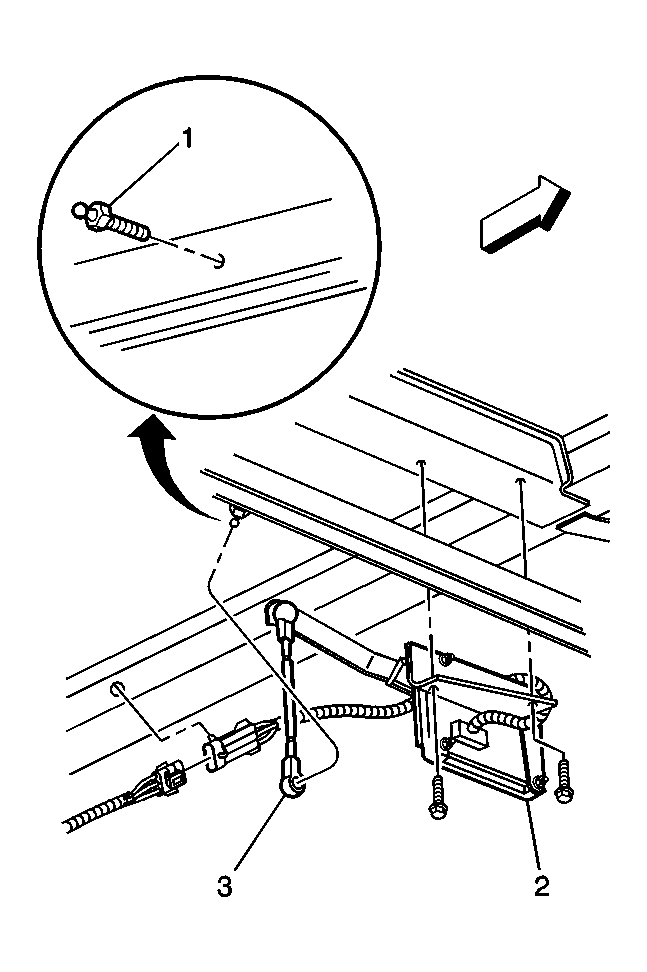

    5. Fig 1: View Of ALC Sensor Bracket Bolts/Screws
    GM343463Courtesy of GENERAL MOTORS CORP.
  5. Remove the ALC sensor bracket bolts/screws.
  6. Remove the ALC sensor with the bracket (2) from the vehicle.
