Audio Coupling Transformer C2 (UMS)
WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
Connector Part Information
|
Terminal Part Information
|

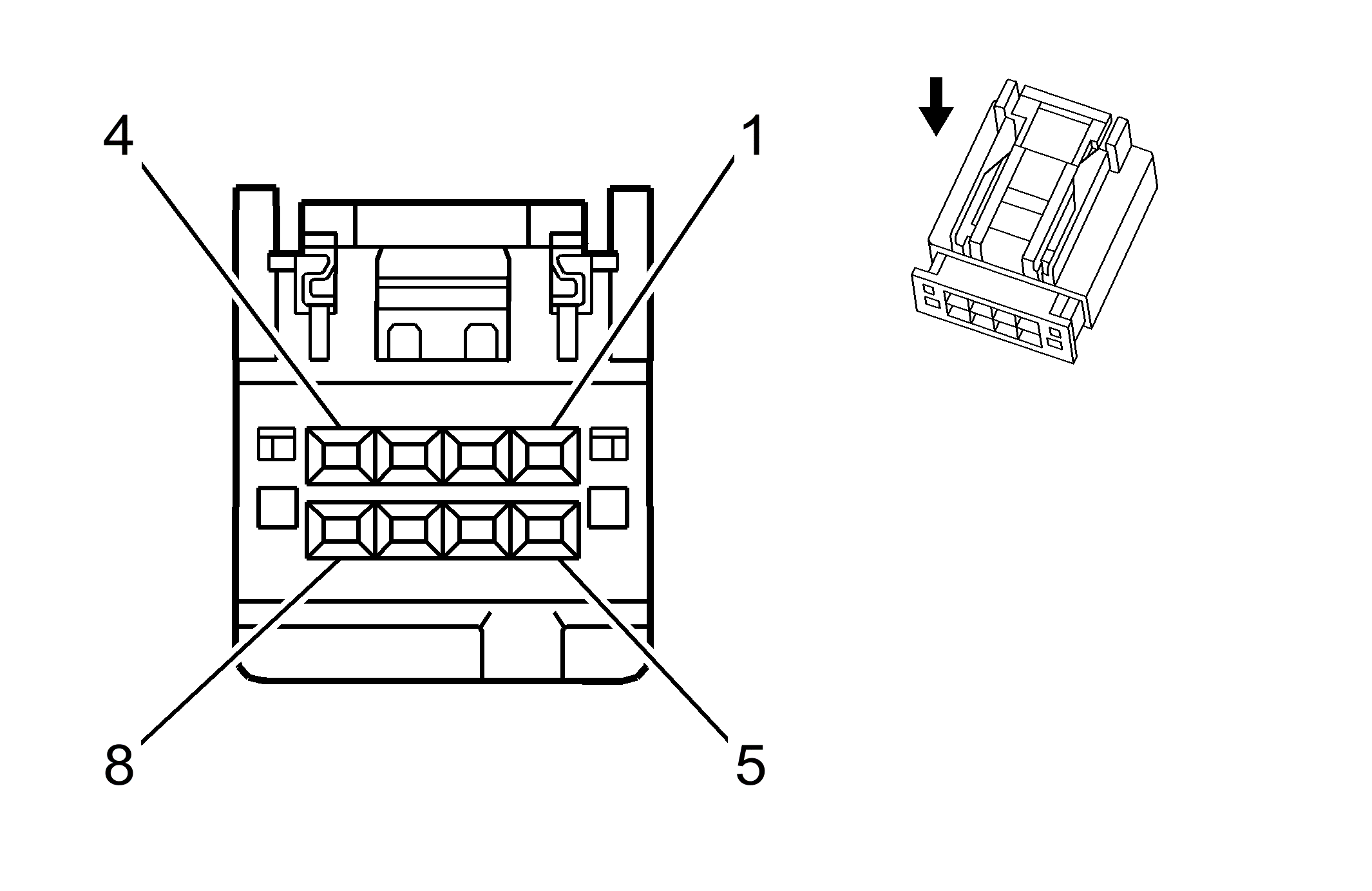

Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | WH | - | Remote Playback Device Left Audio Signal |
| 2 | BK | - | Remote Playback Device Audio Common Signal |
| 3 | RD | - | Remote Playback Device Right Audio Signal |
| 4 | WH | - | Rear Audio Left Signal |
| 5 | BK | - | Rear Audio Common Signal |
| 6 | RD | - | Rear Audio Right Signal |
| 7 | BARE | - | Drain Wire |
| 8 | BARE | - | Drain Wire |
