Video System Schematics (w/o UMS)

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

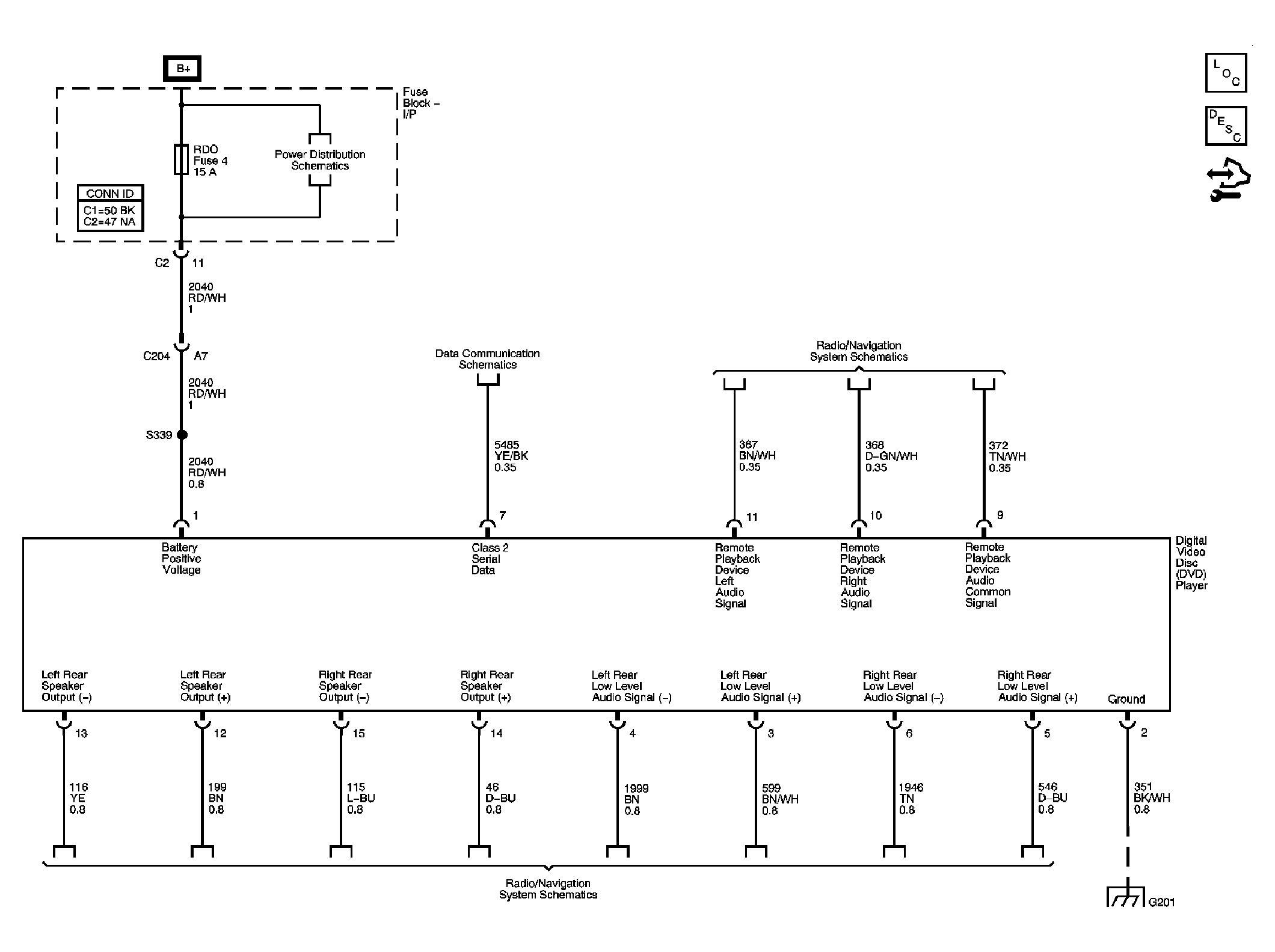

Fig 1: Video System Schematic (w/o UMS)
GM1740155Courtesy of GENERAL MOTORS CORP.
