Lower Crankcase - Back View

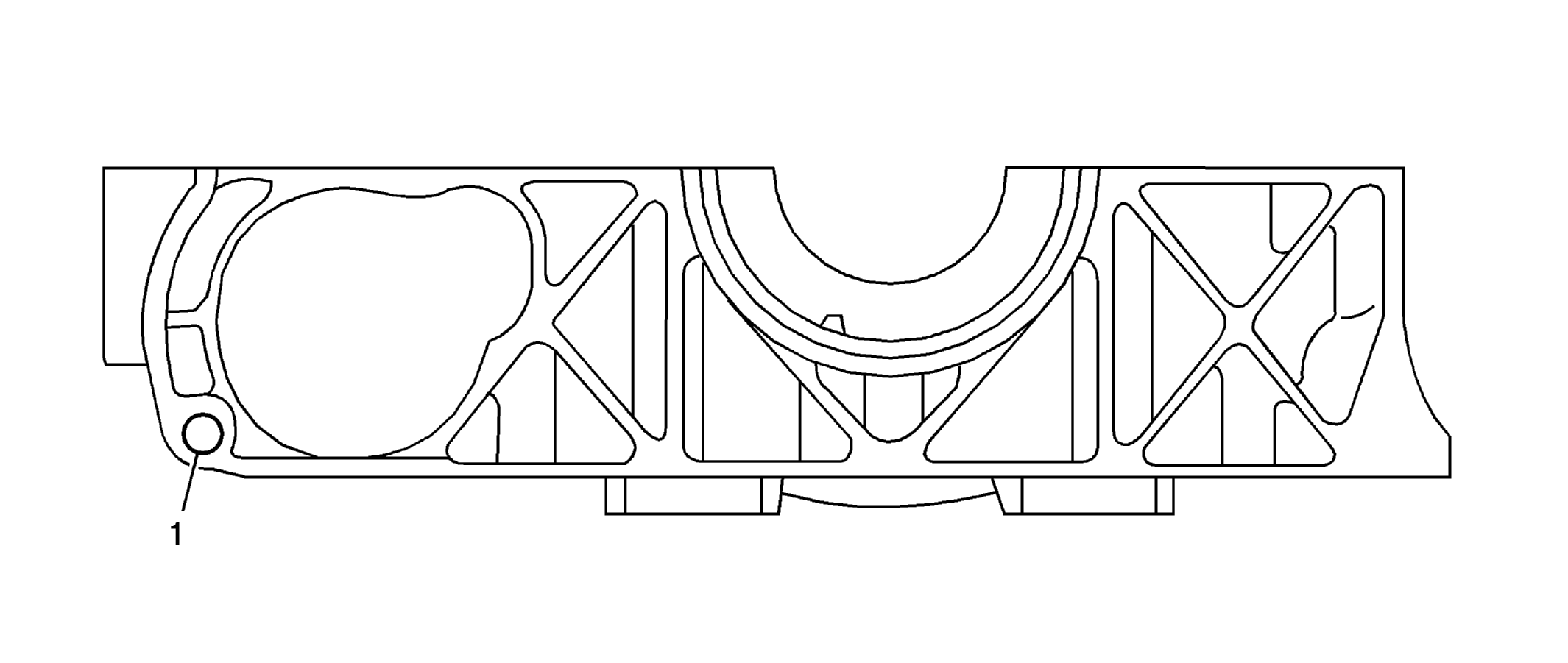

Fig 1: Identifying Bolt Size & Locations On Lower Crankcase - Back
GM1492390Courtesy of GENERAL MOTORS CORP.
Lower Crankcase - Back View

Service Call Out Thread Size Insert Drill Counterbore Tool Tap Driver Drill Depth (Maximum) Tap Depth (Maximum)
J 42385-850 MM (IN) MM (IN)
1 M10 x 1.5 215 211 212 213 214 29.5 1.161 THRU
