Electronic Brake Control Module

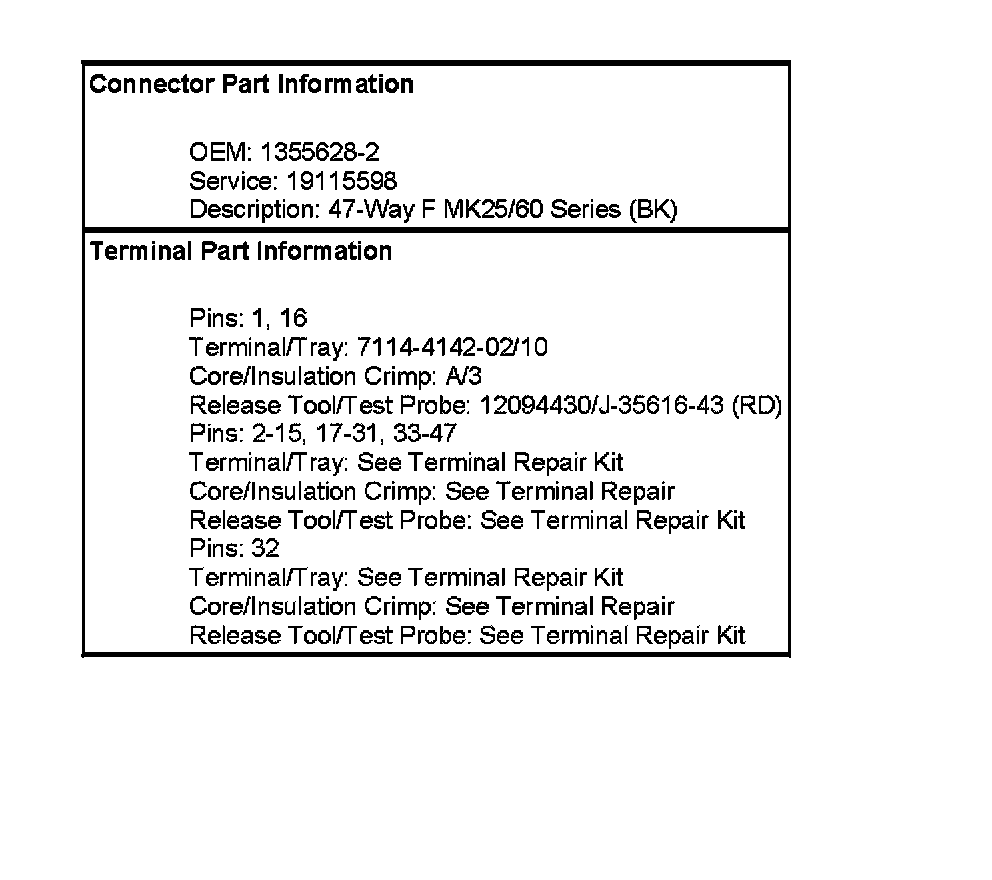

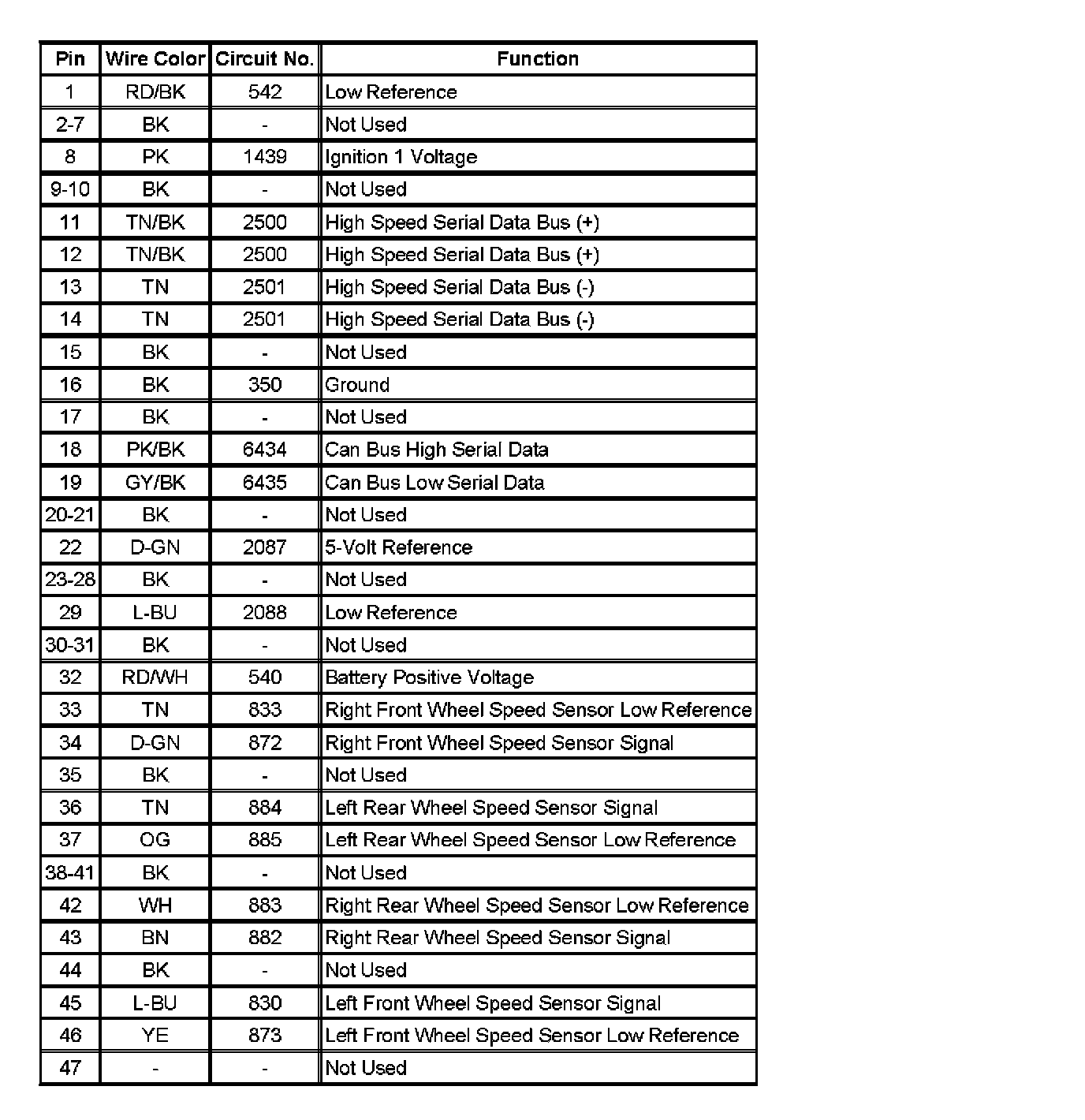

Electronic Brake Controls Module (EBCM) (LNF)







Electronic Brake Controls Module (EBCM) (LNF):
