Air Flow Meter/Sensor: Service and Repair

Mass Airflow Sensor Replacement

Removal Procedure

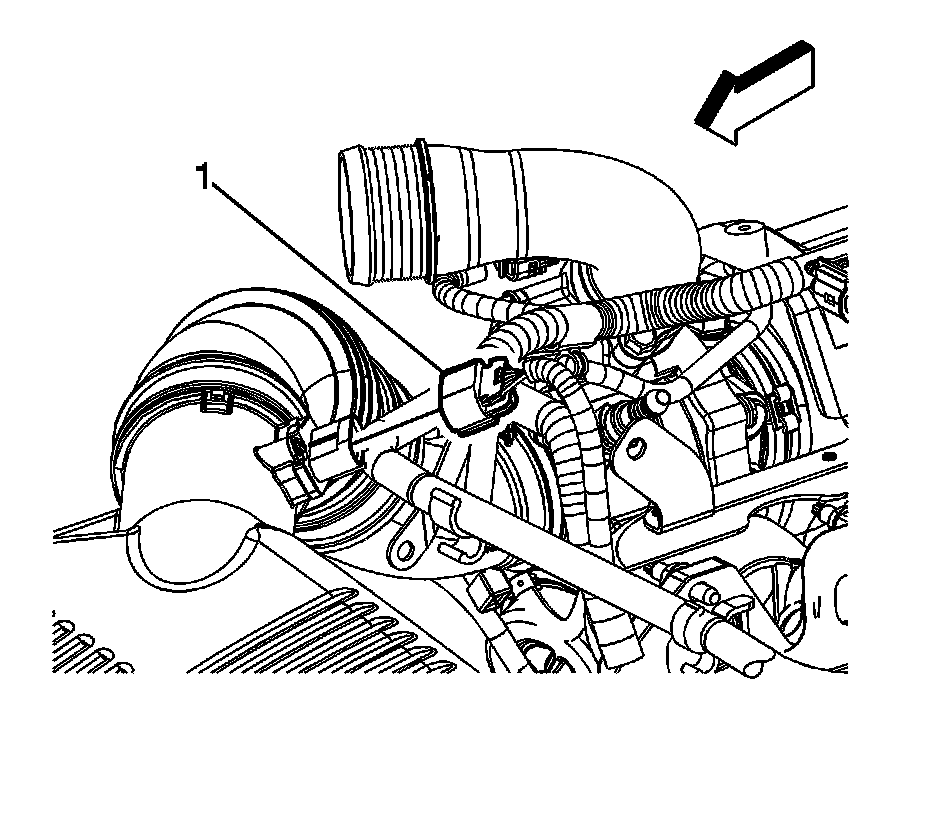

1. Disconnect the engine wiring harness electrical connector (1) from the mass air flow (MAF) sensor.

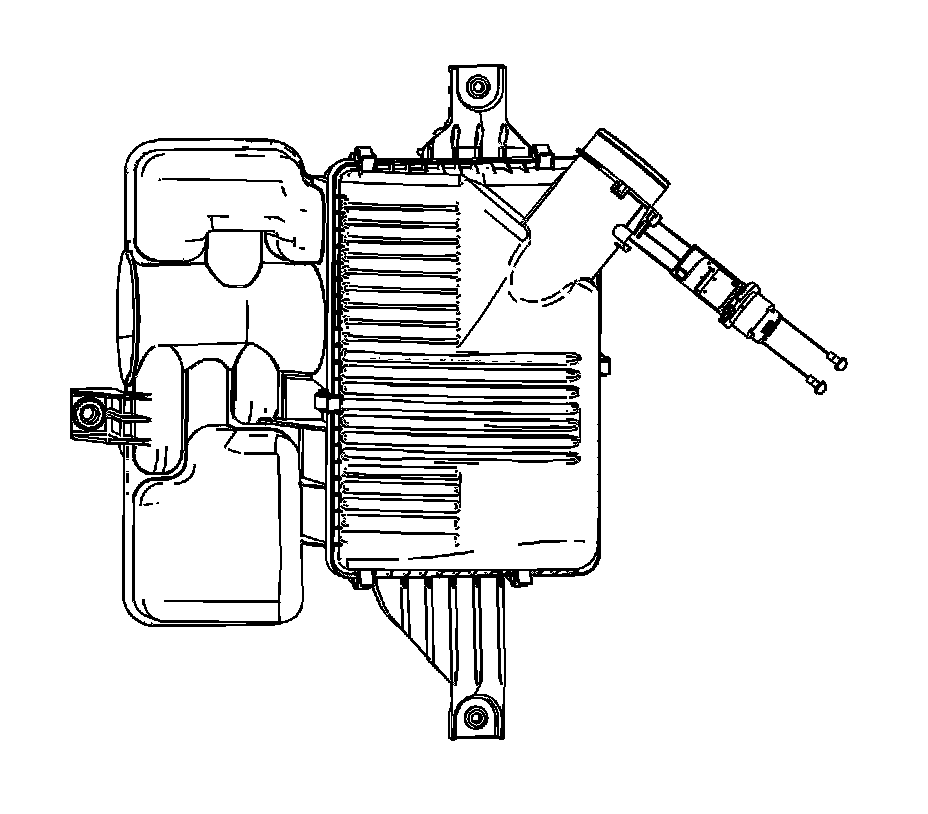

2. Remove the MAF sensor screws.
3. Remove the MAF sensor.

Installation Procedure




1. Install the MAF sensor.

Notice: Refer to Fastener Notice.

2. Install the MAF sensor screws.

Tighten the screws to 0.6 N.m (5 lb in).




3. Connect the engine wiring harness electrical connector to the MAF sensor.
