Disassembled Views

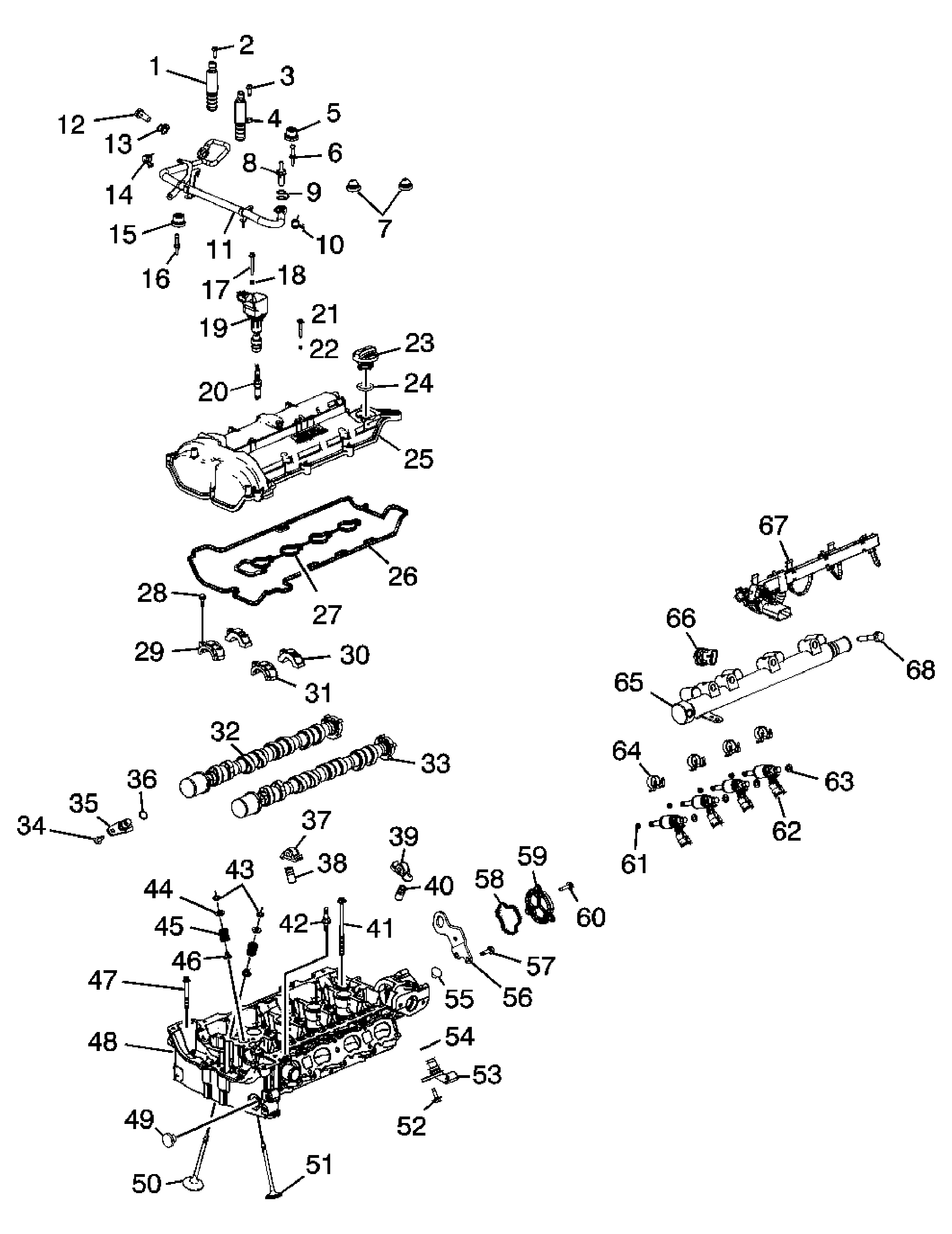

Fig 1: Cylinder Head and Components
GM1770225Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Camshaft Position Actuator Solenoid Valve - Intake
2 Camshaft Position Actuator Solenoid Valve Bolt
3 Camshaft Position Actuator Solenoid Valve Bolt
4 Camshaft Position Actuator Solenoid Valve - Exhaust
5 Upper Intake Manifold Sight Shield Grommet
6 Ball Stud
7 Upper Intake Manifold Sight Shield Grommet
8 Turbocharger Coolant Feed Pipe Fitting
9 Turbocharger Coolant Feed Hose Gasket
10 Turbocharger Coolant Feed Hose Clamp
11 Turbocharger Coolant Feed Hose
12 Turbocharger Coolant Feed Hose Bolt
13 Turbocharger Coolant Feed Hose Gasket
14 Turbocharger Coolant Feed Hose Clamp
15 Upper Intake Manifold Sight Shield Grommet
16 Ball Stud
17 Ignition Coil Bolt
18 Ignition Coil Bolt Retainer
19 Ignition Coil
20 Spark Plug
21 Camshaft Cover Bolt
22 Camshaft Cover Bolt Retainer
23 Oil Fill Cap
24 Oil Fill Cap Seal
25 Camshaft Cover
26 Camshaft Cover Seal
27 Camshaft Cover Seal
28 Camshaft Cap Bolt
29 Camshaft Cap
30 Camshaft Cap
31 Camshaft Cap
32 Exhaust Camshaft
33 Intake Camshaft
34 Camshaft Position Sensor Bolt
35 Camshaft Position Sensor
36 Camshaft Position Sensor O-Ring
37 Roller Finger Follower
38 Hydraulic Lash Adjuster
39 Roller Finger Follower
40 Hydraulic Lash Adjuster
41 Cylinder Head Bolt
42 Coolant Air Bleed Fitting
43 Valve Keys
44 Valve Spring Retainer
45 Valve Spring
46 Valve Stem Seal
47 Small Cylinder Head Bolt
48 Cylinder Head
49 Timing Chain Guide Bolt Access Hole
50 Exhaust Valve
51 Intake Valve
52 Camshaft Position Sensor Bolt
53 Camshaft Position Sensor - Intake
54 Camshaft Position Sensor O-Ring
55 Cylinder Head Gallery Plug
56 Rear Lift Bracket
57 Rear Lift Bracket Bolt
58 Cylinder Head Cover Plate Seal
59 Cylinder Head Cover Plate
60 Cylinder Head Cover Plate Bolt
61 Fuel Injector Seal
62 Fuel Injector
63 Fuel Injector O-Ring
64 Fuel Injector Hold Down Clamp
65 Fuel Rail
66 Fuel Rail Pressure Sensor
67 Fuel Injector Wiring Harness
68 Fuel Rail Bolt

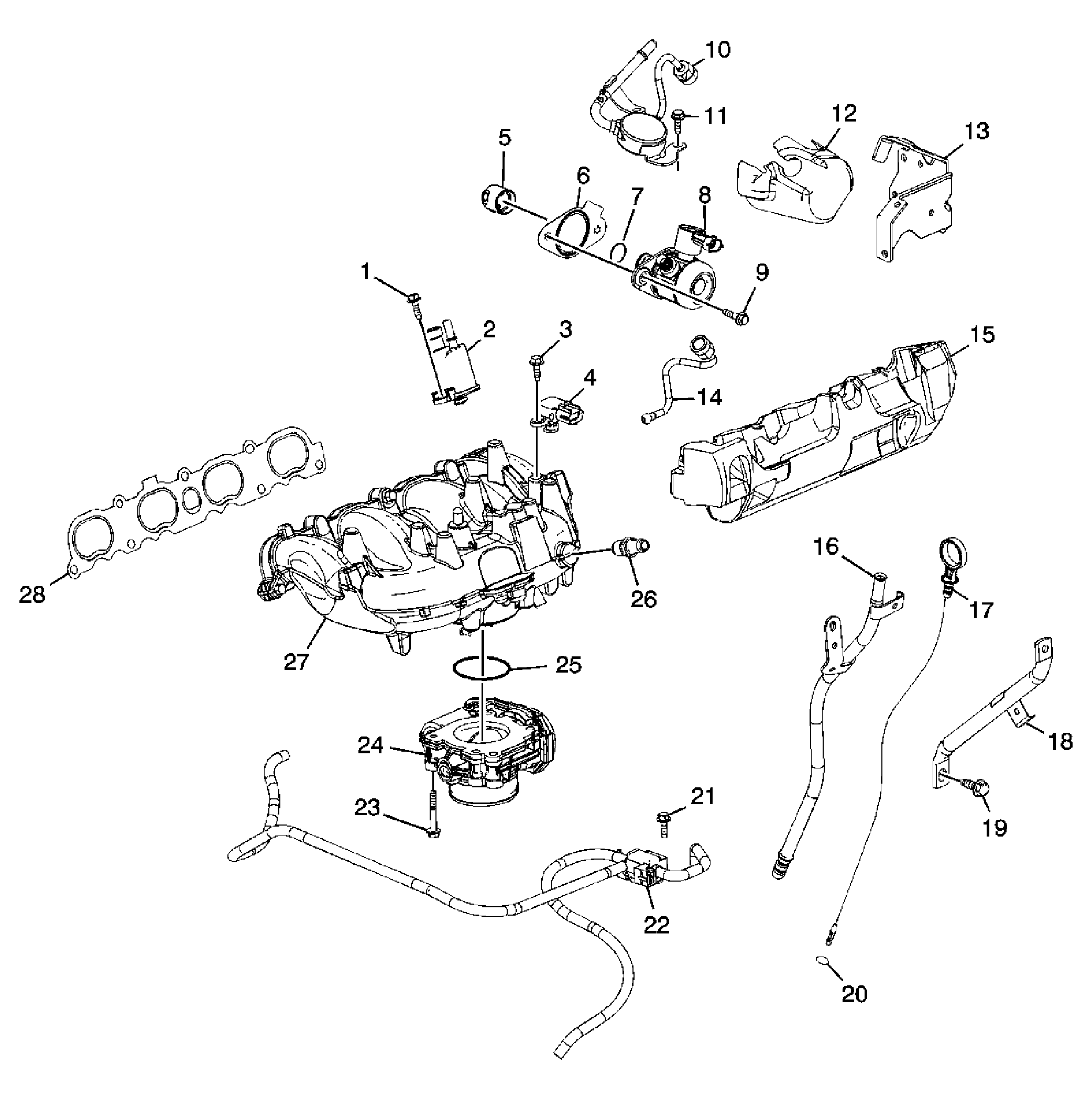

Fig 2: Intake Manifold and Components
GM1770229Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporative (EVAP) Emission Purge Solenoid Valve Bolt
2 EVAP Purge Solenoid Valve
3 Manifold Absolute Pressure (MAP) Sensor Bolt
4 MAP Sensor
5 Fuel Pump Lifter
6 High Pressure Fuel Pump Gasket
7 High Pressure Fuel Pump O-Ring
8 High Pressure Fuel Pump
9 High Pressure Fuel Pump Bolt
10 Fuel Feed Line
11 Fuel Feed Line Bolt
12 High Pressure Fuel Pump Insulator
13 High Pressure Fuel Pump Cover
14 High Pressure Fuel Line
15 Fuel Injector Insulator
16 Oil Indicator Tube
17 Oil Indicator
18 Intake Manifold Brace
19 Intake Manifold Brace Bolt
20 Oil Indicator O-Ring
21 AIR Bypass Valve Solenoid Bolt
22 AIR Bypass Valve Solenoid
23 Throttle Body Bolt
24 Throttle Body
25 Throttle Body Seal
26 Power Brake Booster Fitting
27 Intake Manifold
28 Intake Manifold Gasket

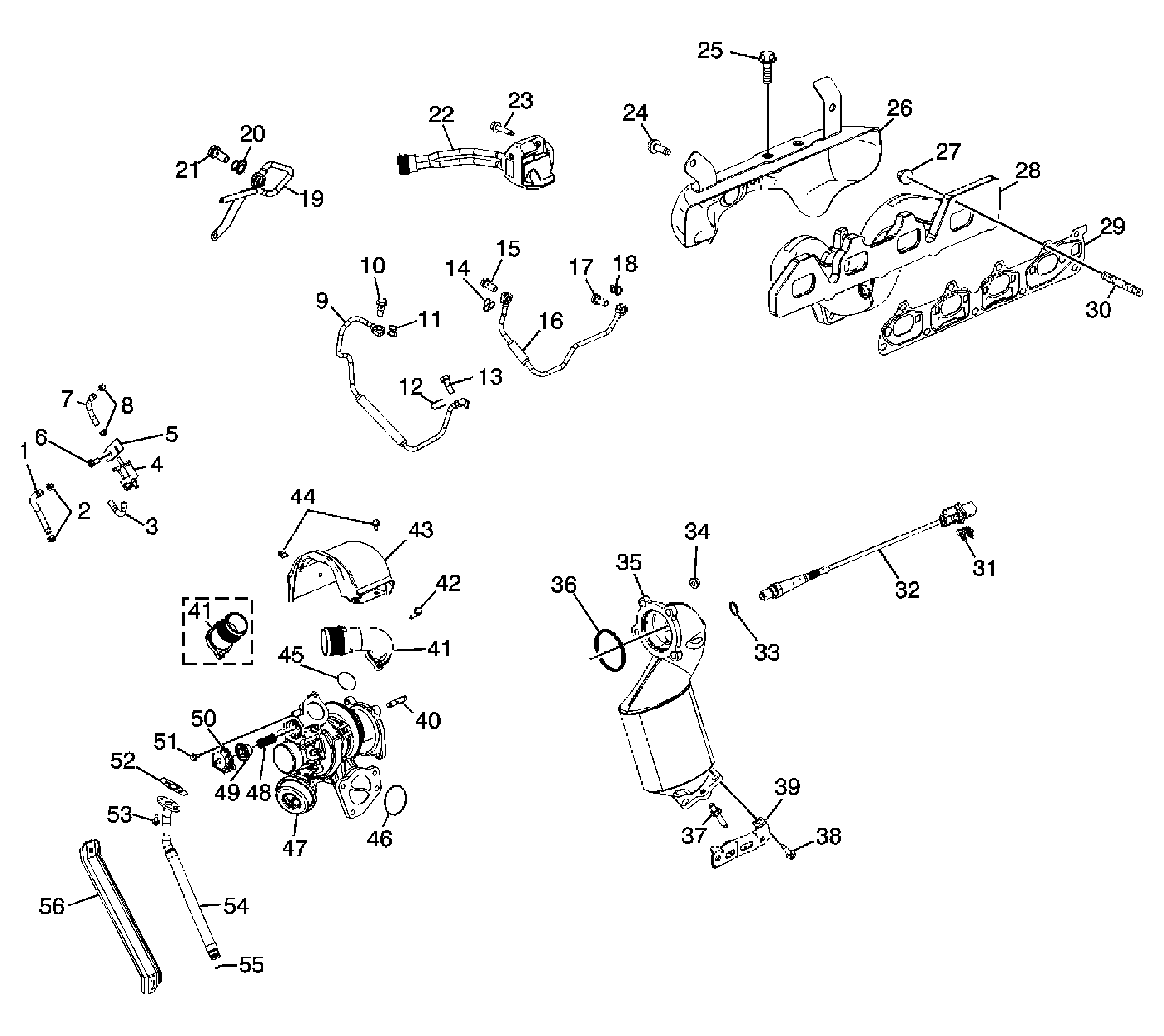

Fig 3: Exhaust Manifold and Components
GM1770231Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wastegate Regulator Solenoid Hose
2 Wastegate Regulator Solenoid Hose Clamp
3 Wastegate Regulator Solenoid Hose
4 Wastegate Regulator Solenoid
5 Wastegate Regulator Solenoid Hose
6 Wastegate Regulator Solenoid Hose Clamp
7 PCV Valve
8 PCV Tube
9 PCV Hose
10 Turbocharger Oil Feed Pipe
11 Turbocharger Oil Feed Pipe Bolt
12 Turbocharger Oil Feed Pipe Gasket
13 Turbocharger Oil Feed Pipe Gasket
14 Turbocharger Oil Feed Pipe Bolt
15 Turbocharger Coolant Return Pipe Gasket
16 Turbocharger Coolant Return Pipe Bolt
17 Turbocharger Coolant Return Pipe
18 Turbocharger Coolant Return Pipe Gasket
19 Turbocharger Coolant Return Pipe Bolt
20 Turbocharger Coolant Feed Pipe
21 Turbocharger Coolant Feed Pipe Gasket
22 Turbocharger Coolant Feed Pipe Bolt
23 Engine Coolant Heater
24 Engine Coolant Heater Bolt
25 Exhaust Manifold Heat Shield Bolt
26 Exhaust Manifold Heat Shield Bolt
27 Exhaust Manifold Heat Shield
28 Exhaust Manifold Nut
29 Exhaust Manifold
30 Exhaust Manifold Gasket
31 Exhaust Manifold Stud
32 Oxygen Sensor Fastener
33 Oxygen Sensor
34 Oxygen Sensor Gasket
35 Catalytic Converter Nut
36 Catalytic Converter
37 Catalytic Converter Seal
38 Catalytic Converter Stud
39 Catalytic Converter Bracket Bolts
40 Catalytic Converter Bracket
41 Catalytic Converter Stud
42 Turbocharger Air Cooler Pipe
43 Turbocharger Air Cooler Pipe Bolt
44 Turbocharger Heat Shield
45 Turbocharger Heat Shield Bolts
46 Turbocharger Air Cooler Pipe Seal
47 Turbocharger Gasket
48 Turbocharger
49 Bypass Valve Cover
50 Bypass Valve Cover Bolt
51 Turbocharger Oil Return Pipe Gasket
52 Turbocharger Oil Return Pipe Bolt
53 Turbocharger Oil Return Pipe
54 Turbocharger Oil Return Pipe O-Ring
55 Turbocharger Brace

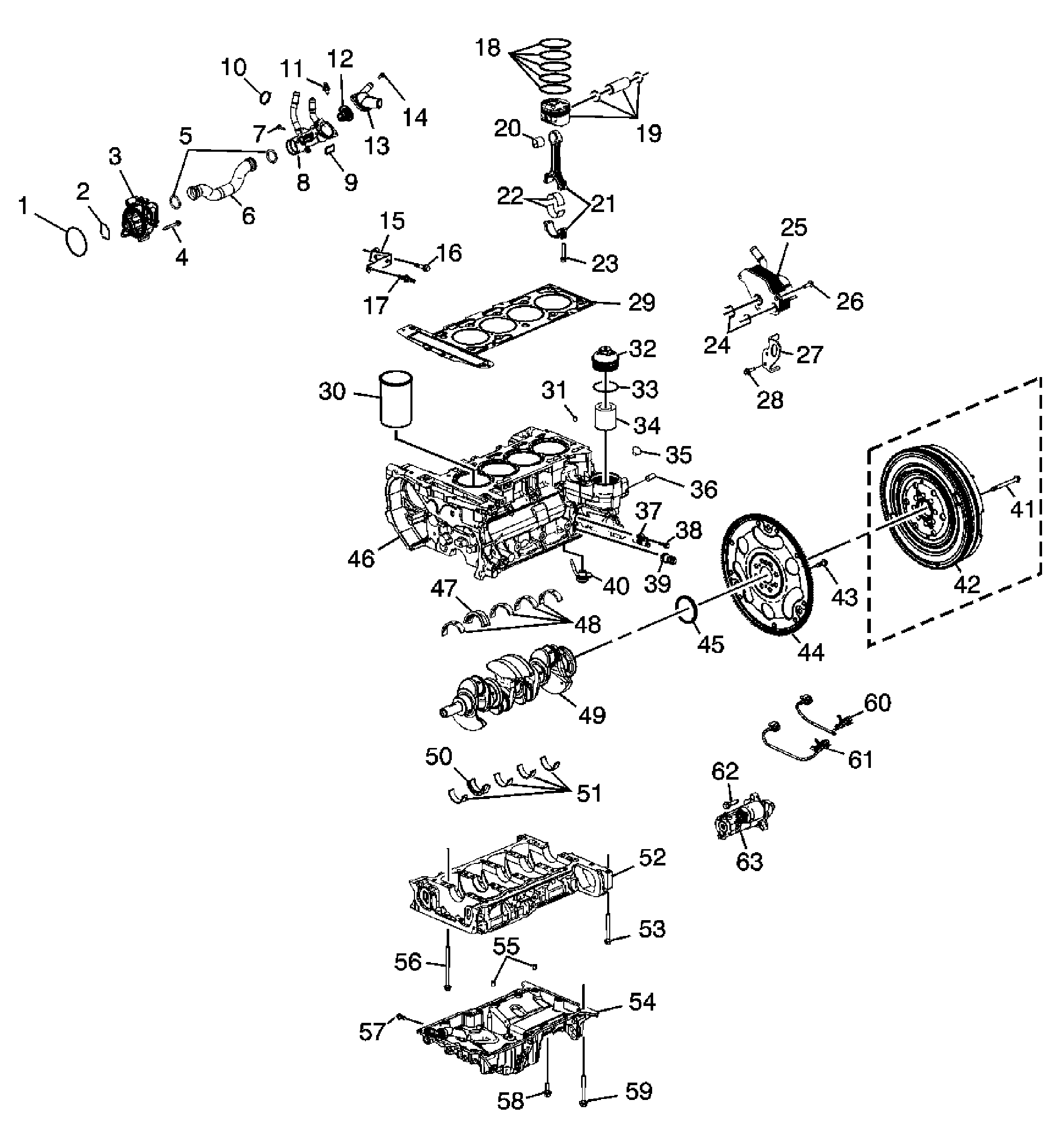

Fig 4: Engine Block and Components
GM1770235Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Water Pump to Engine Block Seal
2 Water Pump Seal
3 Water Pump
4 Water Pump Bolt
5 Outlet Pipe O-rings
6 Outlet Pipe
7 Coolant Thermostat Housing Bolt
8 Coolant Thermostat Housing
9 Thermostat Housing to Block Gasket
10 Coolant Thermostat Housing Seal
11 Coolant Temperature Sensor
12 Thermostat
13 Coolant Inlet
14 Coolant Inlet Bolt
15 Water Pipe Support Bracket
16 Water Pipe Support Bracket Bolt
17 Water Pipe Support Bracket Bolt Stud
18 Piston Ring Assembly
19 Piston Assembly
20 Connecting Rod Bushing
21 Connecting Rod
22 Connecting Rod Bearing
23 Connecting Rod Cap Bolt
24 Oil Cooler O-ring
25 Oil Cooler
26 Oil Cooler Bolt
27 Front Lift Bracket
28 Front Lift Bracket Bolt
29 Cylinder Head Gasket
30 Cylinder Bore Liner
31 Cylinder Head Alignment Pin
32 Oil Filter Cap
33 Oil Filter Cap O-ring
34 Oil Filter
35 Engine Block Gallery Plug
36 Engine Block to Transaxle Alignment Pin
37 Crankshaft Position Sensor
38 Crankshaft Position Sensor Bolt
39 Oil Pressure Switch
40 Oil Squirter
41 Manual Transaxle Flywheel to Crankshaft Bolt
42 Flywheel - Manual Transaxle
43 Automatic Transaxle Flywheel to Crankshaft Bolt
44 Flywheel - Automatic Transaxle
45 Crankshaft Gear Seal
46 Engine Block
47 Crankshaft Thrust Bearing - Upper
48 Crankshaft Bearing - Upper
49 Crankshaft
50 Crankshaft Thrust Bearing - Lower
51 Crankshaft Bearing - Lower
52 Lower Crankcase Main Bearing Bolt
53 Lower Crankcase Perimeter Bolt
54 Engine Oil Pan
55 Engine Oil Pan Alignment Pins
56 Lower Crankcase Main Bearing Bolt
57 Engine Oil Pan Drain Plug
58 Engine Oil Pan Bolt
59 Engine Oil Pan Long Bolt
60 Knock Sensor - Rear
61 Knock Sensor - Front
62 Vacuum Pump Bracket
63 Vacuum Pump Bracket Bolt
64 Starter Bolt
65 Starter

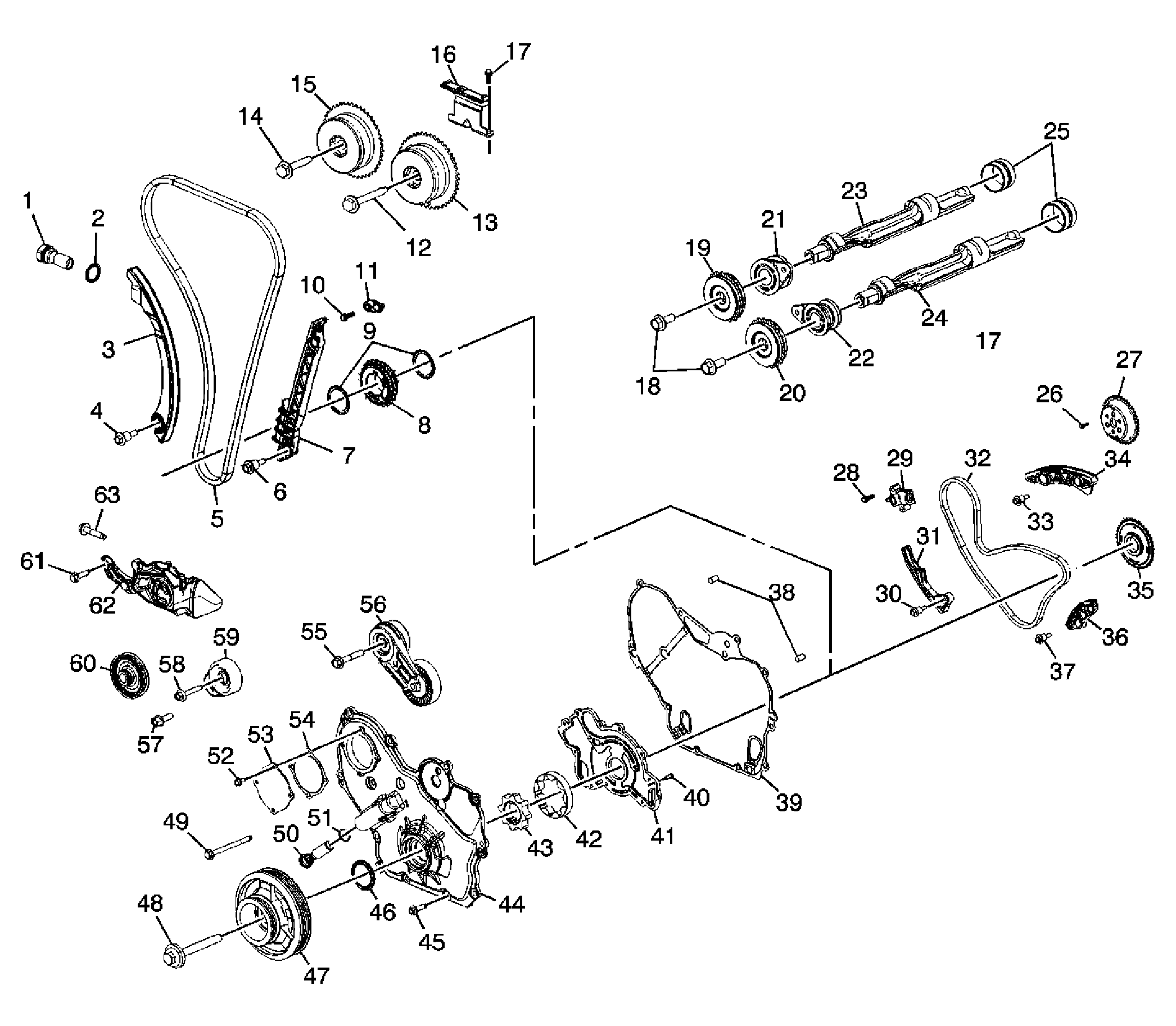

Fig 5: Timing Chain and Components
GM1770238Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Timing Chain Tensioner Body
2 Timing Chain Tensioner Seal
3 Adjustable Timing Chain Guide
4 Adjustable Timing Chain Guide Bolt
5 Timing Chain
6 Fixed Timing Chain Guide Bolt
7 Fixed Timing Chain Guide
8 Timing Chain Drive Sprocket
9 Timing Chain Oil Nozzle Bolt
10 Timing Chain Oil Nozzle
11 Camshaft Position Actuator Bolt
12 Intake Camshaft Position Actuator
13 Camshaft Position Actuator Bolt
14 Exhaust Camshaft Position Actuator
15 Upper Timing Chain Guide
16 Upper Timing Chain Guide Bolt
17 Water Pump Drive Sprocket Bolt
18 Water Pump Drive Sprocket
19 Balance Shaft Drive Sprocket Bolts
20 Exhaust Balance Shaft Drive Sprocket
21 Intake Balance Shaft Drive Sprocket
22 Exhaust Balance Shaft Bearing Carrier
23 Intake Balance Shaft Bearing Carrier
24 Exhaust Balance Shaft
25 Intake Balance Shaft
26 Balance Shaft Rear Bearing
27 Balance Shaft Drive Chain Tensioner Assembly Bolt
28 Balance Shaft Drive Chain Tensioner Assembly
29 Adjustable Balance Shaft Drive Chain Guide Bolt
30 Adjustable Balance Shaft Drive Chain Guide
31 Balance Shaft Drive Chain
32 Balance Shaft Drive Chain Guide Bolt
33 Balance Shaft Drive Chain Guide
34 Balance Shaft Drive Sprocket
35 Balance Shaft Drive Chain Guide
36 Balance Shaft Drive Chain Guide Bolt
37 Engine Front Cover Alignment Pins
38 Engine Front Cover Gasket
39 Oil Pump Cover Bolt
40 Oil Pump Cover
41 Oil Pump Gear
42 Oil Pump Inner Rotor
43 Engine Front Cover
44 Engine Front Cover Bolt
45 Crankshaft Front Oil Seal
46 Crankshaft Balancer
47 Friction Washer
48 Crankshaft Balancer Bolt
49 Engine Front Cover Bolt
50 Oil Pressure Relief Valve
51 Oil Pressure Relief Valve O-Ring
52 Water Pump Sprocket Access Cover Bolt
53 Water Pump Sprocket Access Cover
54 Water Pump Sprocket Access Cover Gasket
55 Belt Tensioner Bolt
56 Belt Tensioner
57 Belt Tensioner Bolt
58 Belt Tensioner Pulley Bolt
59 Belt Tensioner
60 Power Steering Pump Pulley
61 Power Steering Pump Bolt
62 Power Steering Pump Bracket
63 Power Steering Pump Bracket Bolt
