Inflatable Restraint Instrument Panel Module Replacement

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

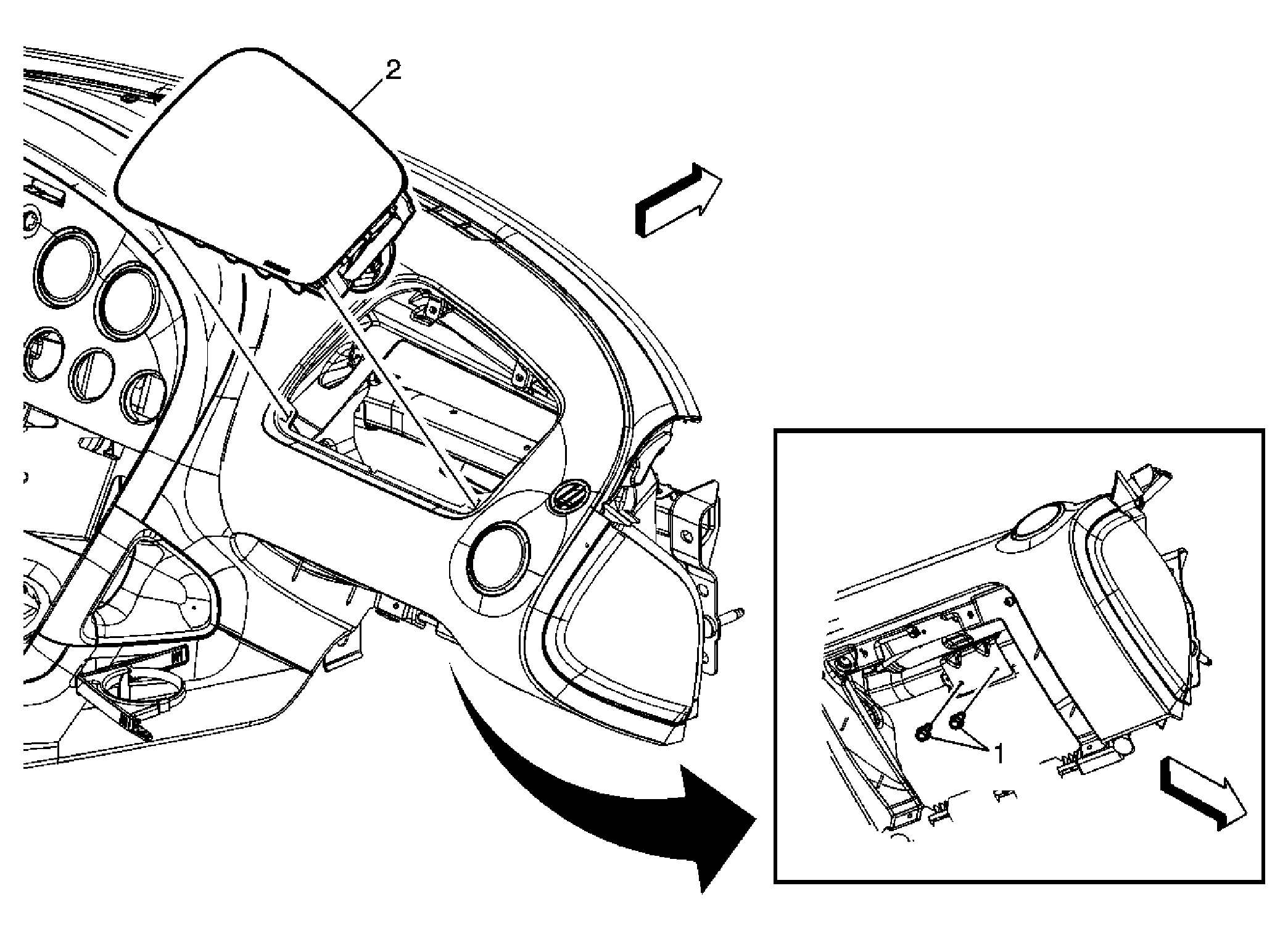

Fig 1: Instrument Panel Module

Courtesy of GENERAL MOTORS CORP.

Instrument Panel Module Replacement

Callout	Component Name
CAUTION: Refer to SIR Caution . CAUTION: Refer to SIR Inflator Module Handling and Storage Caution . Preliminary Procedure: Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
1	Inflatable Restraint Instrument Panel (I/P) Module Bolt/Screw (Qty: 2) NOTE: Refer to Fastener Notice . Procedure Open the I/P storage compartment to access the inflator bolts. If a gap condition exists, DO NOT replace the module. This is an appearance issue only and has no effect on air bag performance. Gently pry the cover up to expose the deformed snap tab. Use a nylon trim tool to deflect the snap to engage the trim edge. Press down on the cover to seat. Tighten: 10 N.m (89 lb in)
2	Inflatable Restraint I/P Module Assembly

Callout

Component Name

CAUTION: Refer to SIR Caution .

CAUTION: Refer to SIR Inflator Module Handling and Storage Caution .

Preliminary Procedure: Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .

Inflatable Restraint Instrument Panel (I/P) Module Bolt/Screw (Qty: 2)

NOTE: Refer to Fastener Notice .

Procedure

Open the I/P storage compartment to access the inflator bolts.
If a gap condition exists, DO NOT replace the module.
This is an appearance issue only and has no effect on air bag performance.
1. Gently pry the cover up to expose the deformed snap tab.
2. Use a nylon trim tool to deflect the snap to engage the trim edge.
3. Press down on the cover to seat.

Tighten: 10 N.m (89 lb in)

Inflatable Restraint I/P Module Assembly
