65. Oil Flow Control Module Installation

Oil Flow Control Module Installation

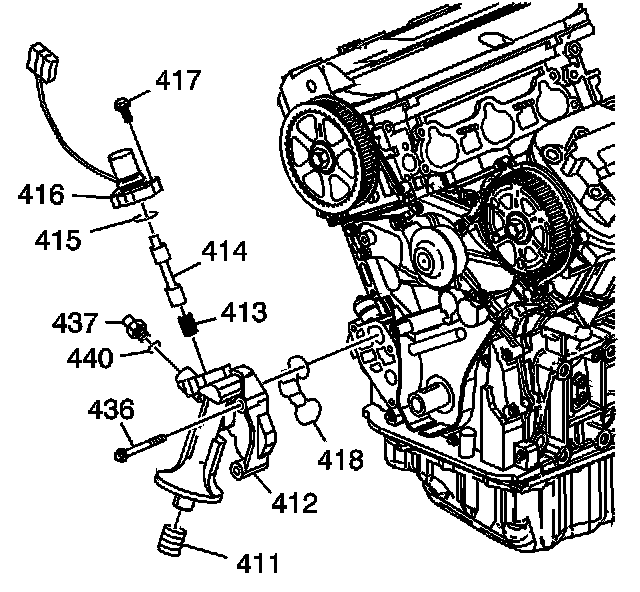

1. Install the spring (413) and valve (414). The valve must move freely in the bore.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the NEW O-ring (415), solenoid (416) and bolts (417).

Tighten the bolts to 12 N.m (106 lb in).

3. Install a NEW O-ring (418).
4. Install the module (412) and bolts (436).

Tighten the bolts to 22 N.m (16 lb ft).

5. Install 2 M20 x 1.5 mm nuts onto the fitting (411).
6. Install the fitting (411), if required.

Tighten the fitting to 49 N.m (36 lb ft).

7. Remove the 2 M20 x 1.5 mm nuts from the fitting.
8. Install a NEW O-ring (440) and switch (437).

Tighten the switch to 22 N.m (16 lb ft).
