Engine Control Module: Locations

Engine Controls Component Views

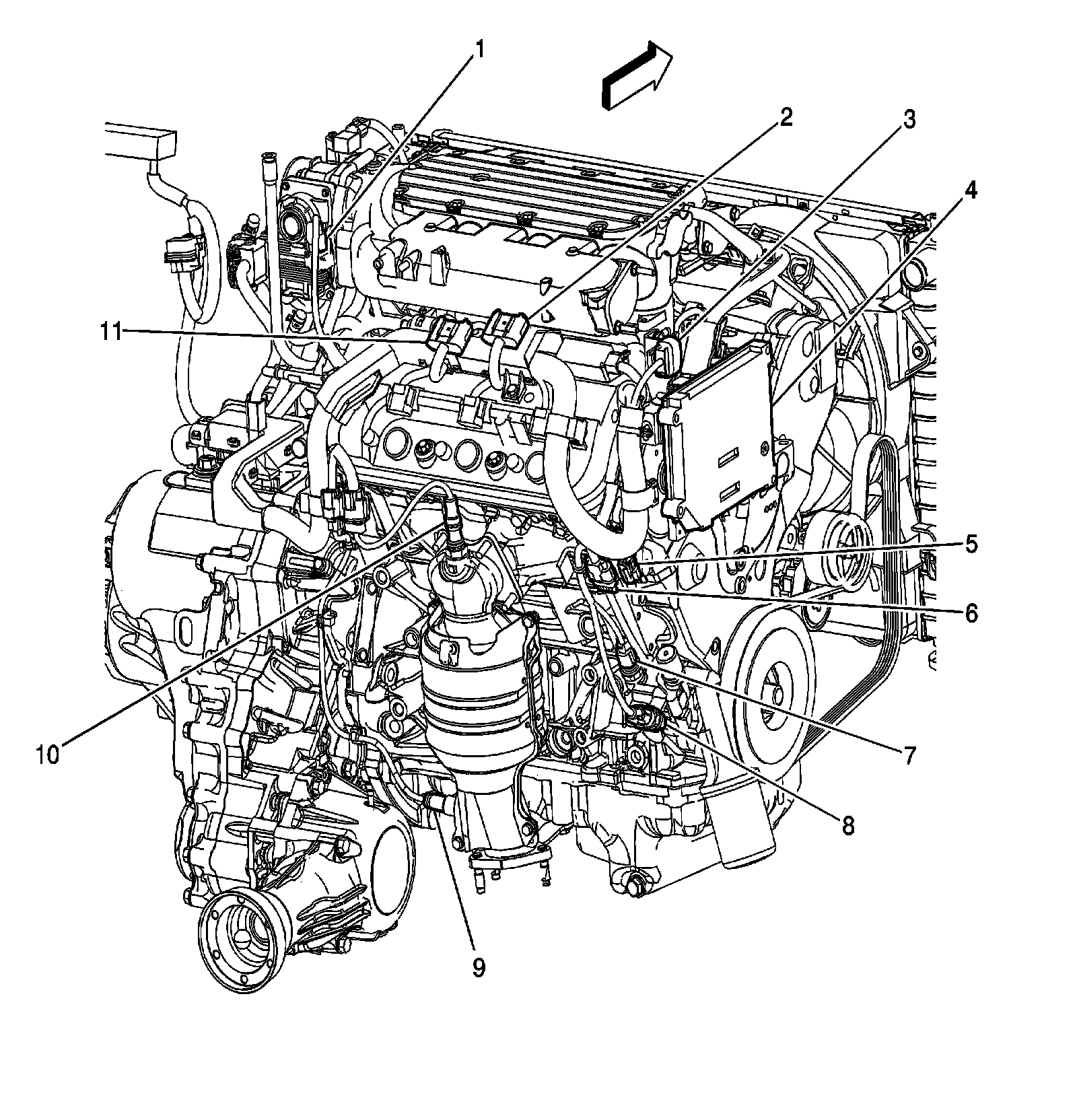

Rear Engine View (L66)




1 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
2 - Splice Pack SP113
3 - C102
4 - Powertrain Control Module (PCM)
5 - Rocker Arm Oil Control Solenoid Pigtail Connector
6 - C103 (Crankshaft Position (CKP) Sensor Pigtail)
7 - Rocker Arm Oil Control Solenoid
8 - Engine Oil Pressure (EOP) Switch
9 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
10 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
11 - Splice Pack SP114

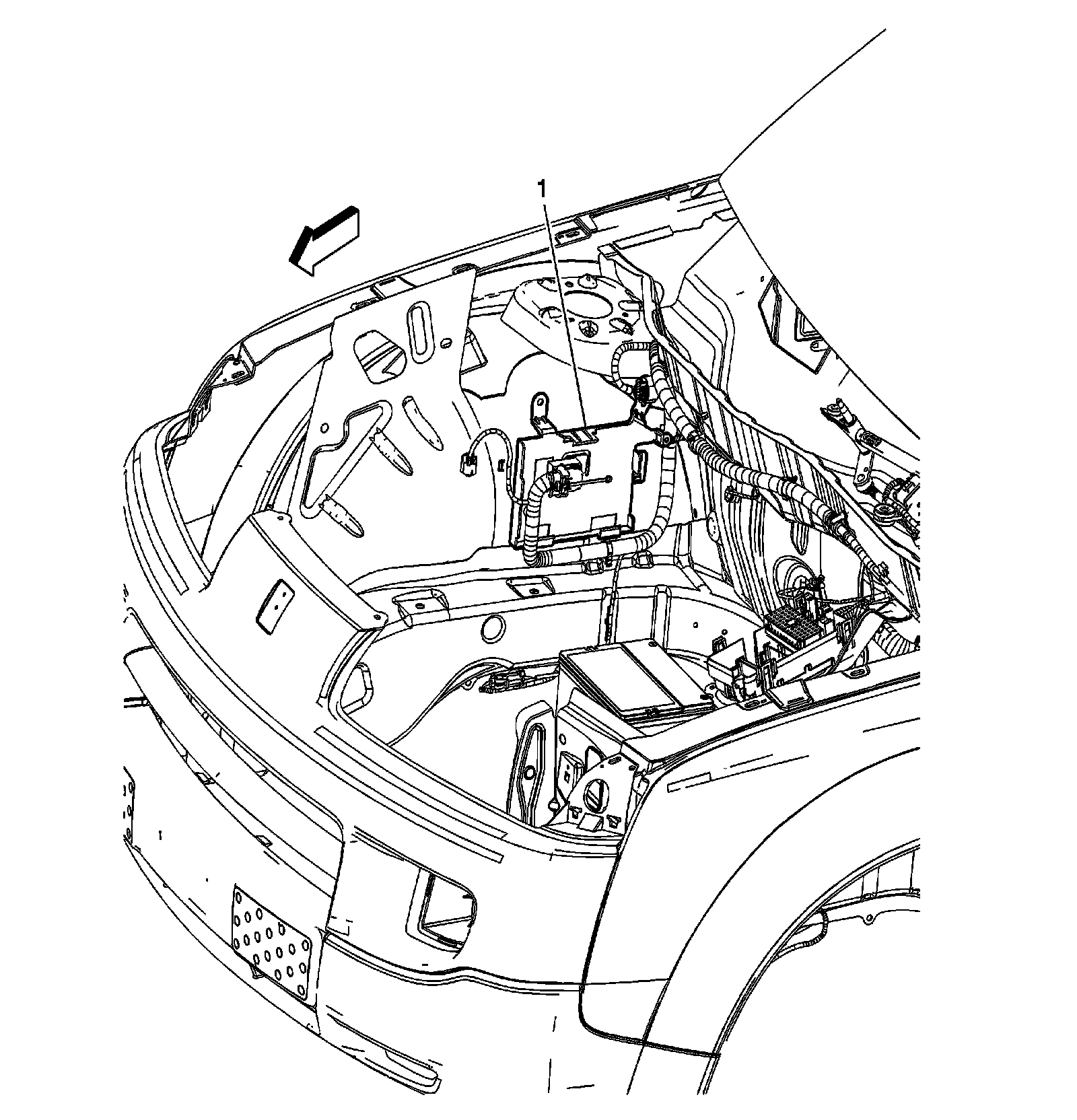

Right Rear of Engine Compartment (L66)




1 - Powertrain Control Module (PCM) (L66)
