Power Window Switch: Service and Repair

Power Window Switch Replacement

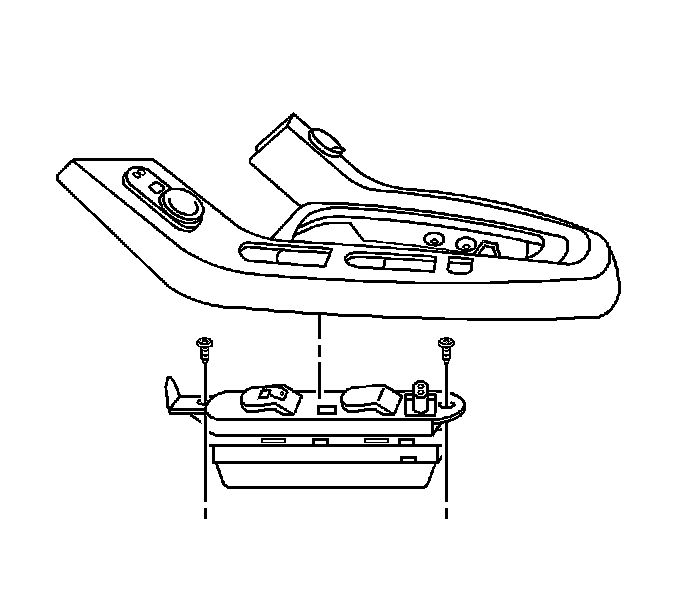

Removal Procedure




1. Remove the console shift lever bezel.
2. Remove the screws from the power window switch assembly.
3. Remove the switch assembly from the bezel.

Installation Procedure




1. Position the switch assembly.

Notice: Refer to Fastener Notice.

2. Install the screws to the power mirror switch assembly.

Tighten the screws to 2.5 N.m (22 lb in).

3. Install the console shift lever bezel.
