Drive Motor Control Module: Diagrams

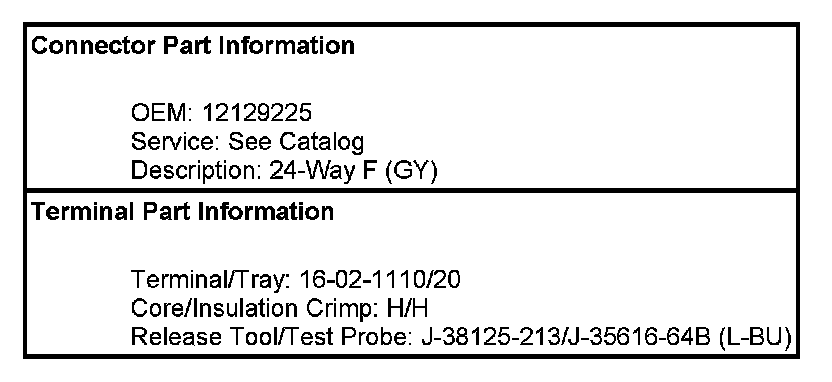

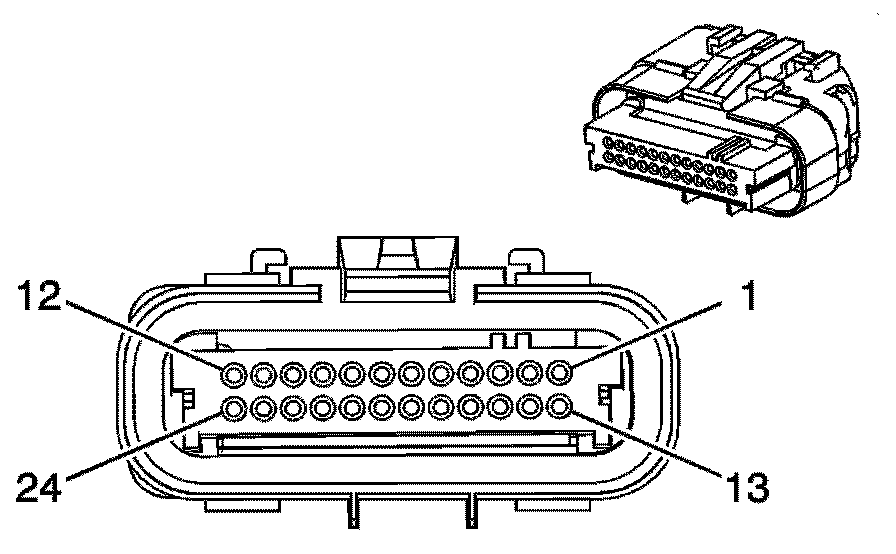

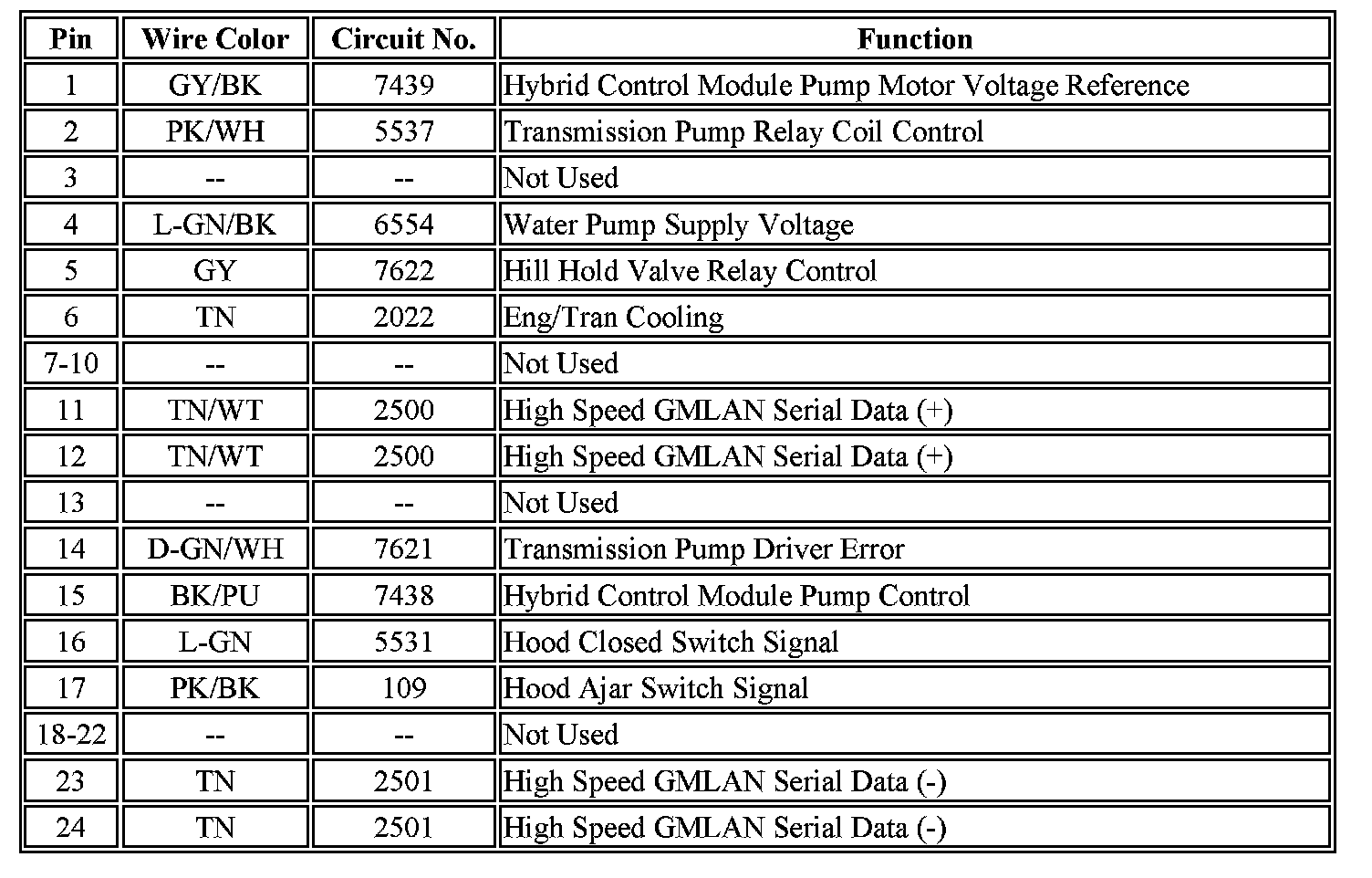

Starter Generator Control Module (SGCM) - C1

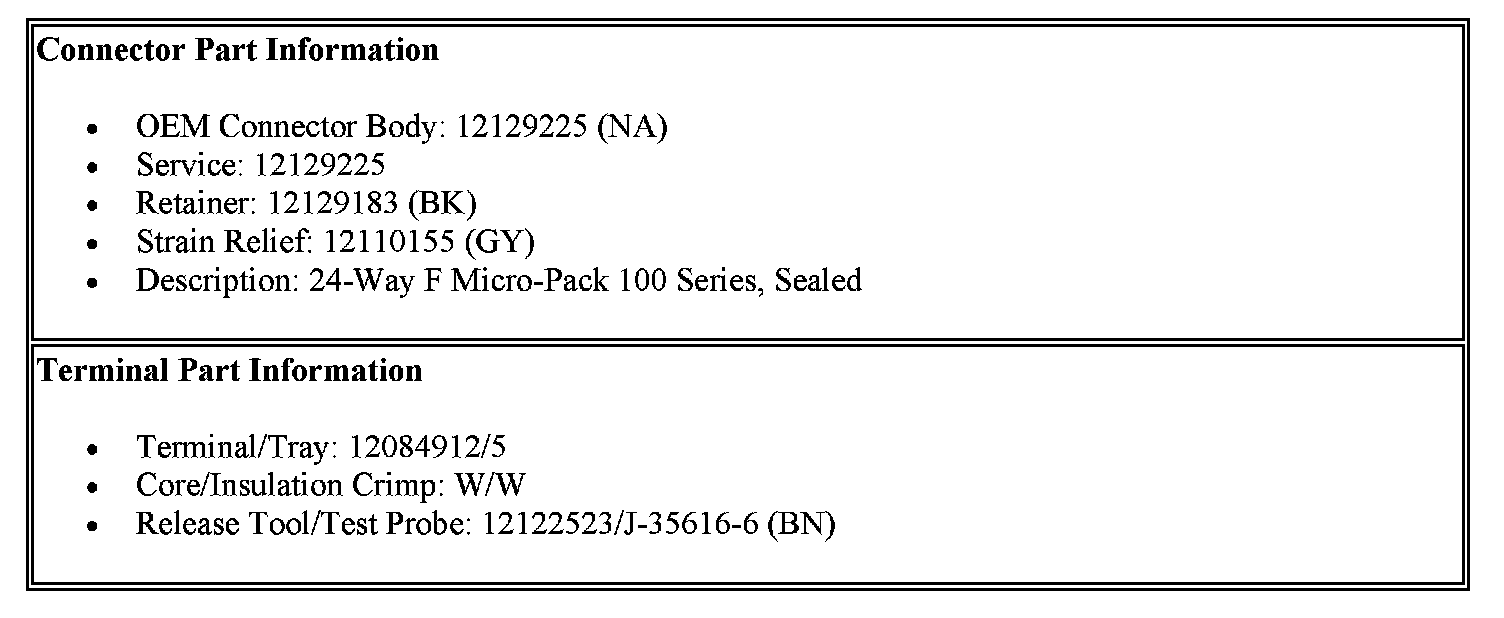

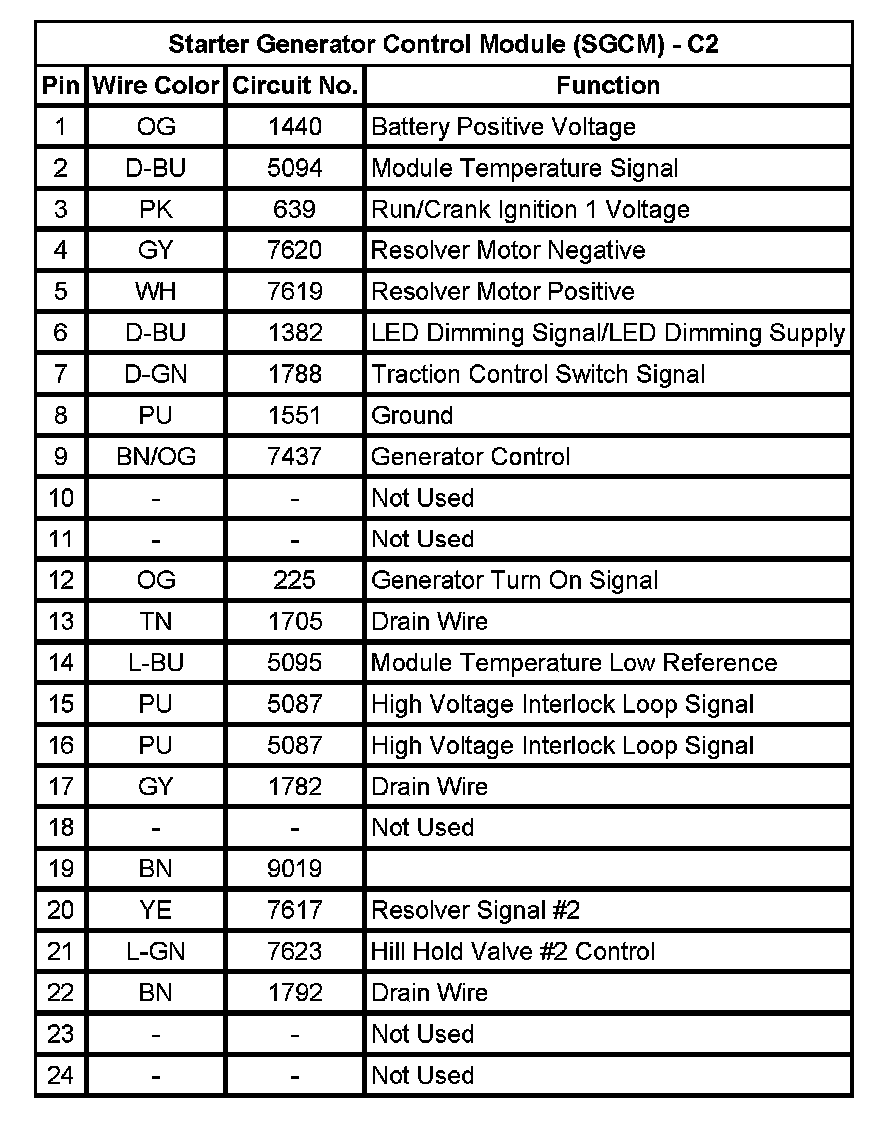

Starter Generator Control Module (SGCM) - C2
