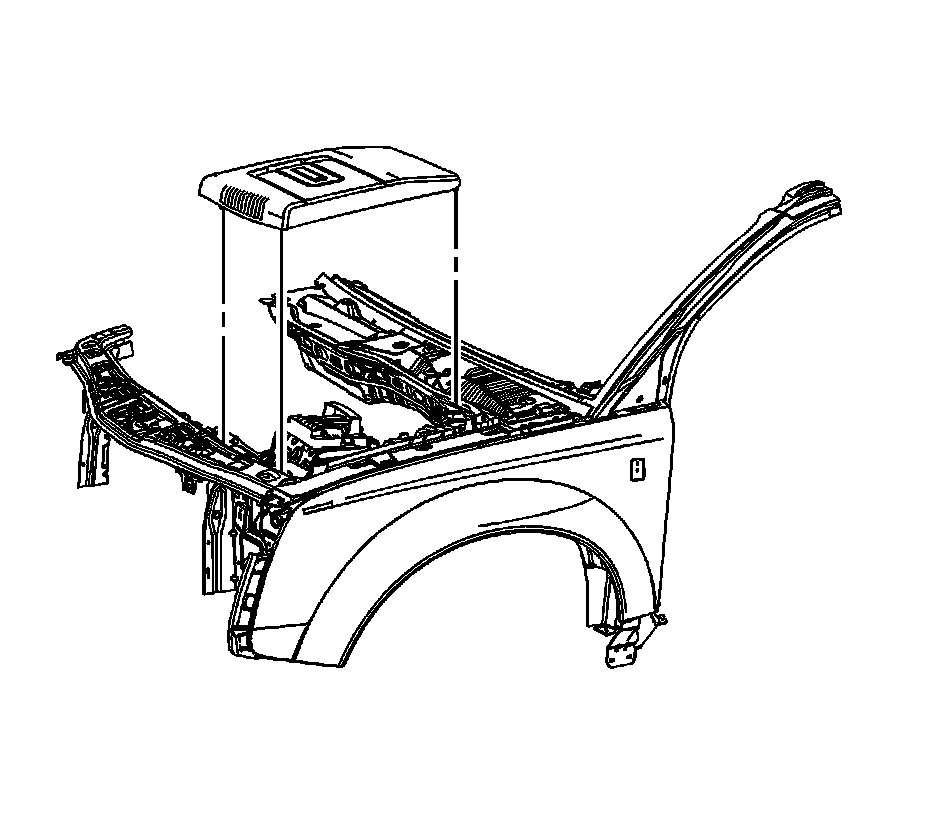

Generator Battery Control Module Cover Replacement



Generator Battery Control Module Cover Replacement

Removal Procedure




1. Open the hood.
2. Grasp the generator control module cover by the left and right front corners and lift up in order to disengage the cover from the ball studs.
3. Lift up the rear of the generator control module in order to disengage the cover from the rear bracket.
4. Remove the generator control module cover.

Installation Procedure




1. Place the generator control module cover into the rear bracket and over the front ball studs.
2. Press down on the cover over the ball studs in order to secure the cover.
3. Close the hood.
