Engine Control Module



Powertrain Control Module Connector End Views

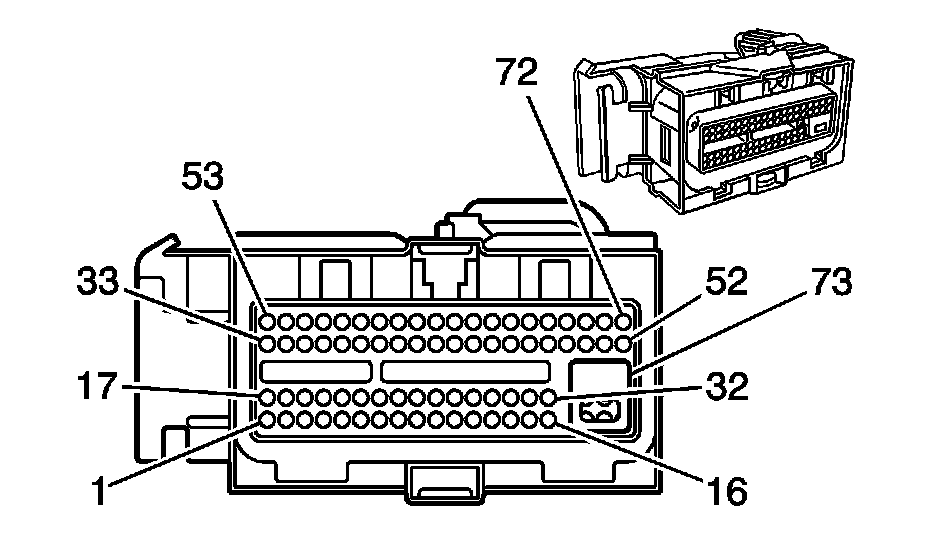

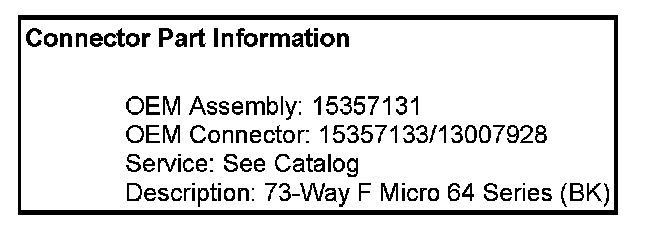

Powertrain Control Module (PCM) C1

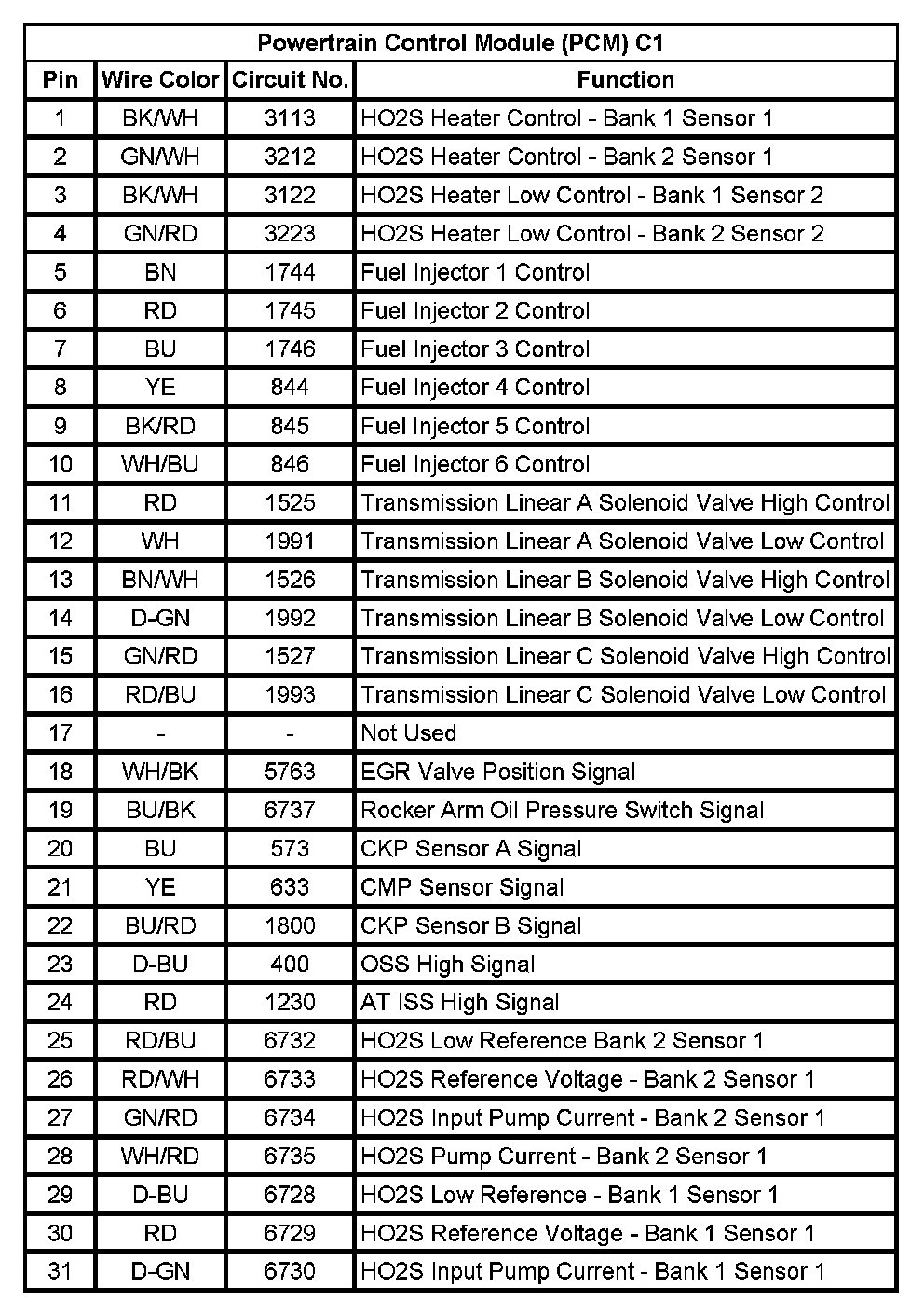

Powertrain Control Module (PCM) C1 (Pin 1 To 31):

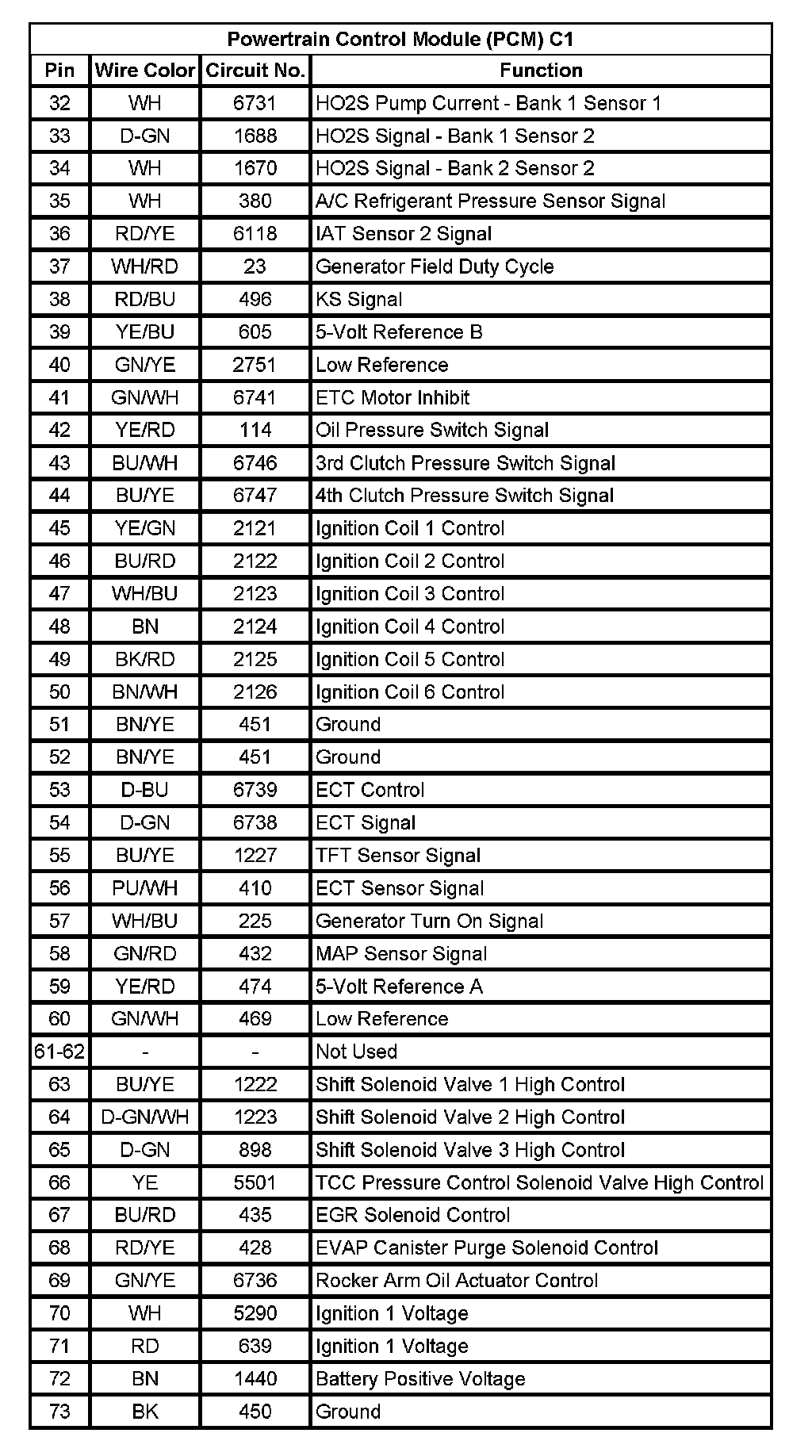

Powertrain Control Module (PCM) C1 (Pin 32 To 73):

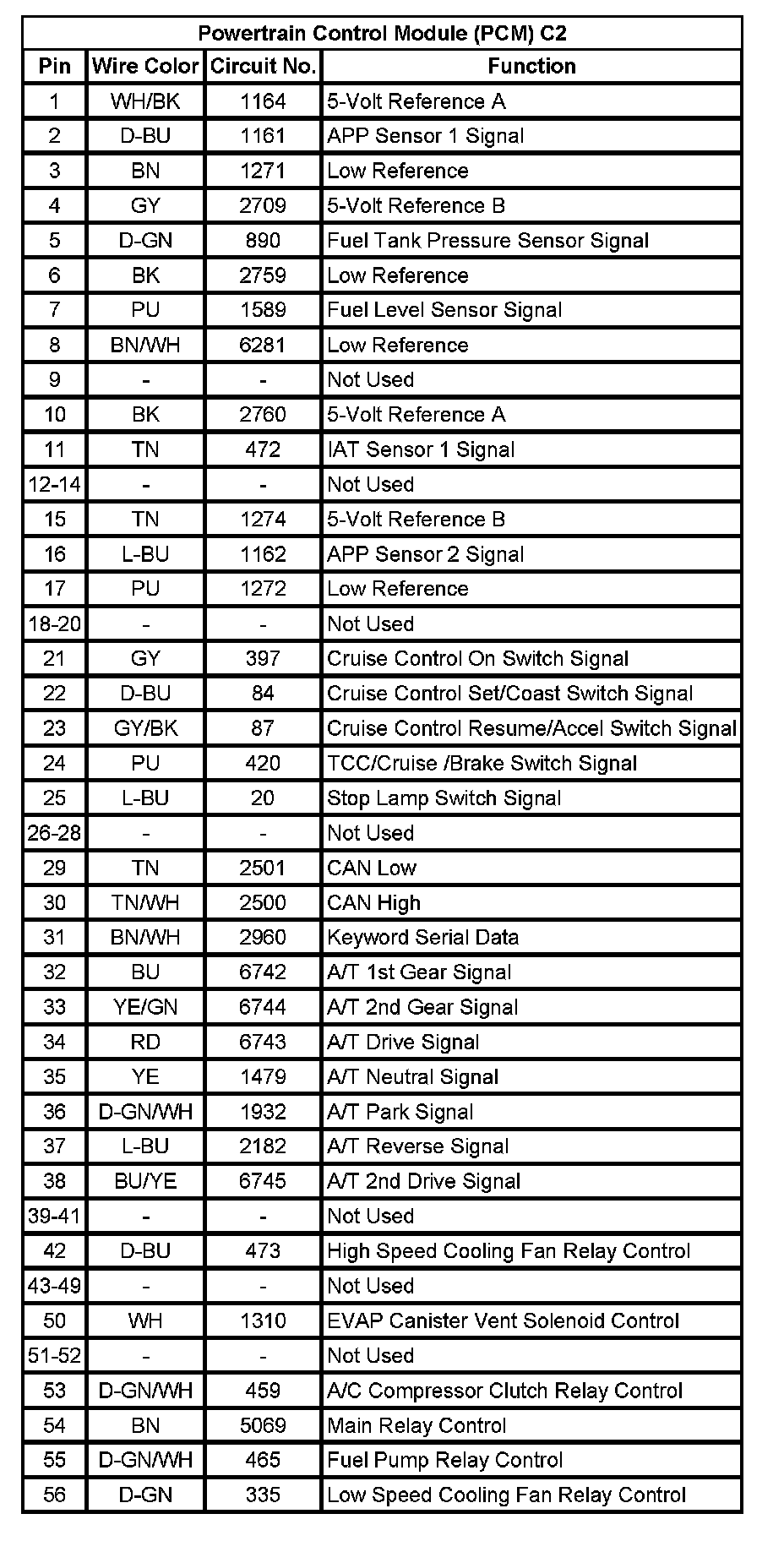

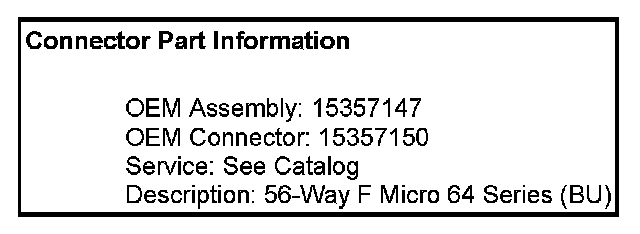

Powertrain Control Module (PCM) C2
