Radio Front Side Door Lower Speaker Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

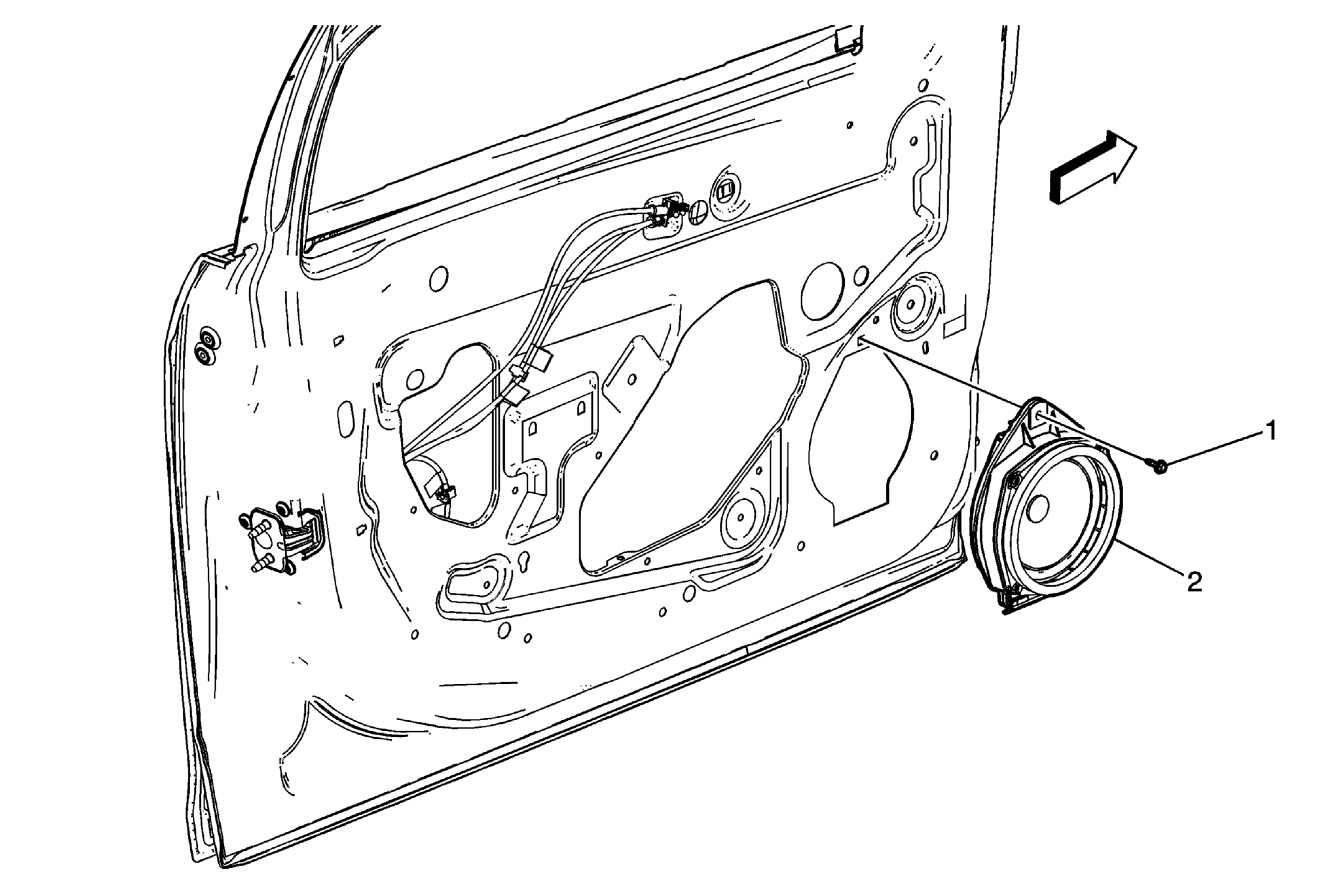

Fig 1: View Of Radio Front Side Door Lower Speaker
GM1993183Courtesy of GENERAL MOTORS COMPANY
Radio Front Side Door Lower Speaker Replacement

Callout Component Name
Preliminary Procedure
Remove Front Side Door Trim Panel. Refer to Front Side Door Trim Panel Replacement .
1 Radio Front Side Door Speaker Bolt/screw (Qty: 1)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Radio Front Side Door Lower Speaker
Procedure
Disconnect the electrical connection.
