Inline Harness Connector End Views
WARNING: This page is about a different car, the 2006 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
C102 - Engine Harness to the Body Harness (L61 w/MN5)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | D-BU | 1161 | APP Sensor 1 Signal | 1 | D-BU | 1161 | APP Sensor 1 Signal |
| 2 | BN | 1271 | Low Reference | 2 | BN | 1271 | Low Reference |
| 3 | WH/BK | 1164 | 5-Volt Reference B | 3 | WH/BK | 1164 | 5-Volt Reference B |
| 4 | - | - | Not Used | 4 | - | - | Not Used |
| 5 | PU | 1272 | 5-Volt Reference A | 5 | PU | 1272 | 5-Volt Reference A |
| 6 | TN | 1274 | Low Reference | 6 | TN | 1274 | Low Reference |
| 7 | L-BU | 1162 | APP Sensor 2 Signal | 7 | L-BU | 1162 | APP Sensor 2 Signal |
| 8 | PK | 639 | Ignition 1 Voltage | 8 | PK | 639 | Ignition 1 Voltage |
| 9 | TN/WH | 2500 | CAN High | 9 | TN/WH | 2500 | CAN High |
| 10 | TN | 2501 | CAN Low | 10 | TN | 2501 | CAN Low |
| 11-12 | - | - | Not Used | 11-12 | - | - | Not Used |
| 13 | BK/WH | 771 | Transmission Range Switch Signal A | 13 | BK/WH | 771 | Transmission Range Switch Signal A |
| 14 | YE | 772 | Transmission Range Switch Signal B | 14 | YE | 772 | Transmission Range Switch Signal B |
| 15 | GY | 773 | Transmission Range Switch Signal C | 15 | GY | 773 | Transmission Range Switch Signal C |
| 16 | BN | 418 | TCC PWM Solenoid Valve Control | 16 | BN | 418 | TCC PWM Solenoid Valve Control |
| 17 | BN | 323 | HSD2 | 17 | BN | 323 | HSD2 |
| 18 | OG | 1440 | Battery Positive Voltage | 18 | OG | 1440 | Battery Positive Voltage |
| 19 | OG/BK | 586 | Low Reference | 19 | OG/BK | 586 | Low Reference |
| 20 | YE/BK | 1227 | TFT Sensor Signal | 20 | YE/BK | 1227 | TFT Sensor Signal |
| 21 | WH | 1804 | TCC Release Switch Signal | 21 | WH | 1804 | TCC Release Switch Signal |
| 22 | RD | 1226 | Transmission Fluid Pressure Switch Signal C | 22 | RD | 1226 | Transmission Fluid Pressure Switch Signal C |
| 23 | D-BU | 1225 | Transmission Fluid Pressure Switch Signal B | 23 | D-BU | 1225 | Transmission Fluid Pressure Switch Signal B |
| 24 | WH | 776 | Transmission Range Switch Signal P | 24 | WH | 776 | Transmission Range Switch Signal P |
| 25 | RD/BK | 1228 | PC Solenoid Valve High Control | 25 | RD/BK | 1228 | PC Solenoid Valve High Control |
| 26 | YE | 400 | VSS High Signal | 26 | YE | 400 | VSS High Signal |
| 27 | PU | 401 | VSS Low Signal | 27 | PU | 401 | VSS Low Signal |
| 28 | D-GN | 890 | Fuel Tank Pressure Sensor Signal | 28 | D-GN | 890 | Fuel Tank Pressure Sensor Signal |
| 29 | L-BU/WH | 1229 | PC Solenoid Valve Low Control | 29 | L-BU/WH | 1229 | PC Solenoid Valve Low Control |
| 30 | L-GN | 1222 | 1-2 Shift Solenoid Valve Control | 30 | L-GN | 1222 | 1-2 Shift Solenoid Valve Control |
| 31 | YE/BK | 1223 | 2-3 Shift Solenoid Valve Control | 31 | YE/BK | 1223 | 2-3 Shift Solenoid Valve Control |
| 32 | GY | 2709 | 5-Volt Reference | 32 | GY | 2709 | 5-Volt Reference |
| 33 | D-BU/WH | 1231 | AT ISS Low Signal | 33 | D-BU/WH | 1231 | AT ISS Low Signal |
| 34 | RD/BK | 1230 | AT ISS High Signal | 34 | RD/BK | 1230 | AT ISS High Signal |
C102 - Body Harness to the Engine Harness (L61 w/MG3)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BN | 1271 | Low Reference | A | BN | 1271 | Low Reference |
| B | WH/BK | 1164 | 5-Volt Reference | B | WH/BK | 1164 | 5-Volt Reference |
| C | L-BU | 1162 | APP Sensor 2 Signal | C | L-BU | 1162 | APP Sensor 2 Signal |
| D | TN | 1274 | 5-Volt Reference | D | TN | 1274 | 5-Volt Reference |
| E | PU | 1272 | Low Reference | E | PU | 1272 | Low Reference |
| F | D-BU | 1161 | APP Sensor 1 Signal | F | D-BU | 1161 | APP Sensor 1 Signal |
| G | TN | 2501 | CAN Low | G | TN | 2501 | CAN Low |
| H | TN/WH | 2500 | CAN High | H | TN/WH | 2500 | CAN High |
| J | D-GN | 890 | Fuel Tank Pressure Sensor Signal | J | D-GN | 890 | Fuel Tank Pressure Sensor Signal |
| K | GY | 2709 | 5-Volt Reference | K | GY | 2709 | 5-Volt Reference |
C102 - Body Harness to the Engine Harness (L66)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | RD | 6743 | A/T Drive Signal | A | RD | 6743 | A/T Drive Signal |
| B | YE/GN | 6744 | A/T Intermediate Signal | B | YE/GN | 6744 | A/T Intermediate Signal |
| C | BU | 6742 | A/T Low Signal | C | BU | 6742 | A/T Low Signal |
| D | GN/WH | 1932 | A/T Park Signal | D | GN/WH | 1932 | A/T Park Signal |
| E | YE | 1479 | A/T Neutral Signal | E | RD/BK | 1479 | A/T Neutral Signal |
| F | L-BU | 2182 | A/T Reverse Signal | F | D-BU/WH | 2182 | A/T Reverse Signal |
| G | D-BU/YE | 6745 | A/T Forward Signal | G | D-BU/YE | 6745 | A/T Forward Signal |
| H | D-GN/WH | 459 | A/C Compressor Clutch Relay Control | H | D-GN/WH | 459 | A/C Compressor Clutch Relay Control |
| J-K | - | - | Not Used | J-K | - | - | Not Used |
C103 - Engine Harness to the Crankshaft Position Sensor Harness (L66)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | WH | 5290 | Ignition 1 Voltage | 1 | YE/BK | 5290 | Ignition 1 Voltage |
| 2 | BU | 573 | CKP Sensor A Signal | 2 | BU | 573 | CKP Sensor A Signal |
| 3 | BN/YE | 451 | Ground | 3 | BN/YE | 451 | Ground |
| 4 | WH | 5290 | Ignition 1 Voltage | 4 | YE/BK | 5290 | Ignition 1 Voltage |
| 5 | BU/RD | 1800 | CKP Sensor B Signal | 5 | BU/RD | 1800 | CKP Sensor B Signal |
| 6 | BN/YE | 451 | Ground | 6 | BN/YE | 451 | Ground |

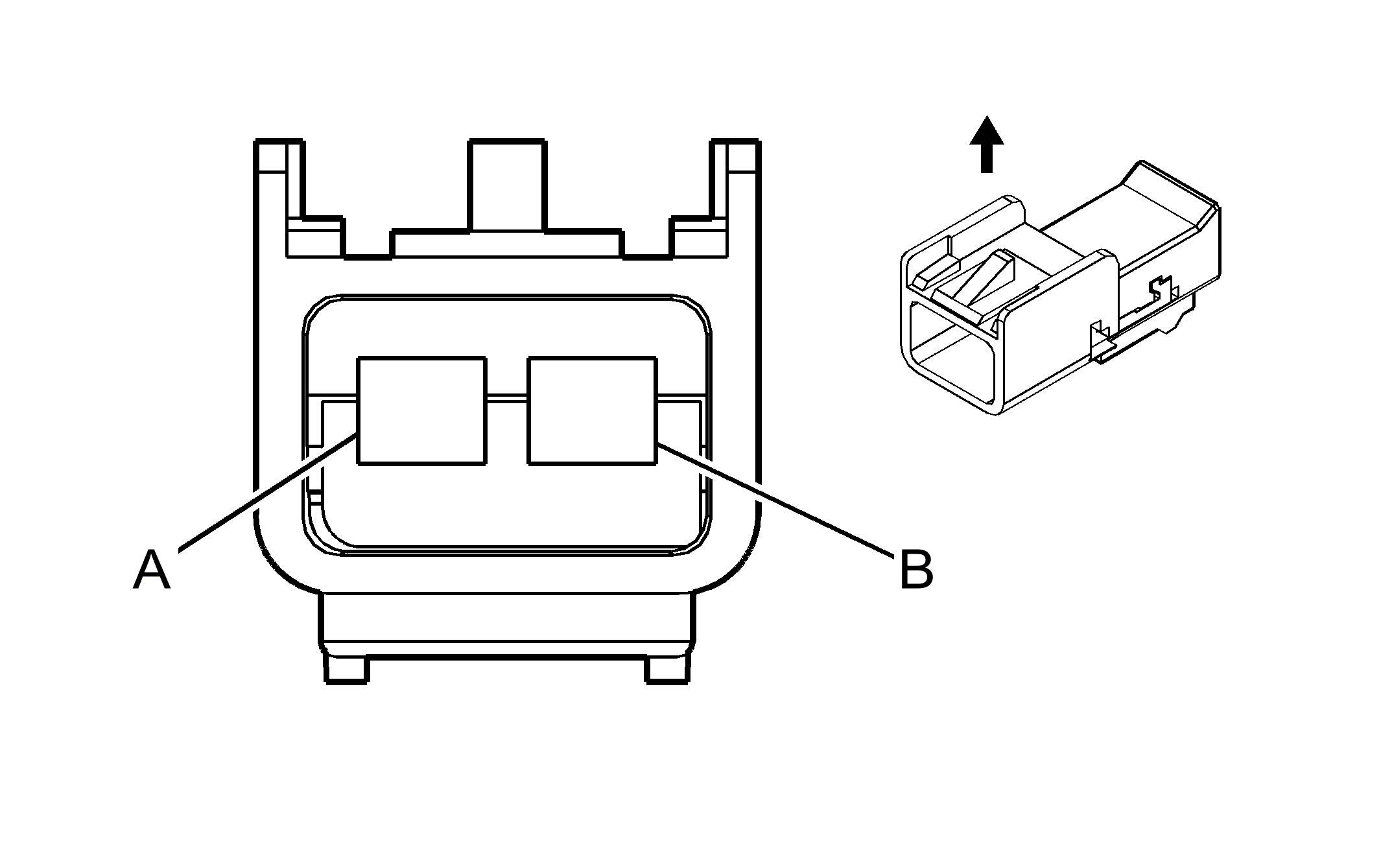

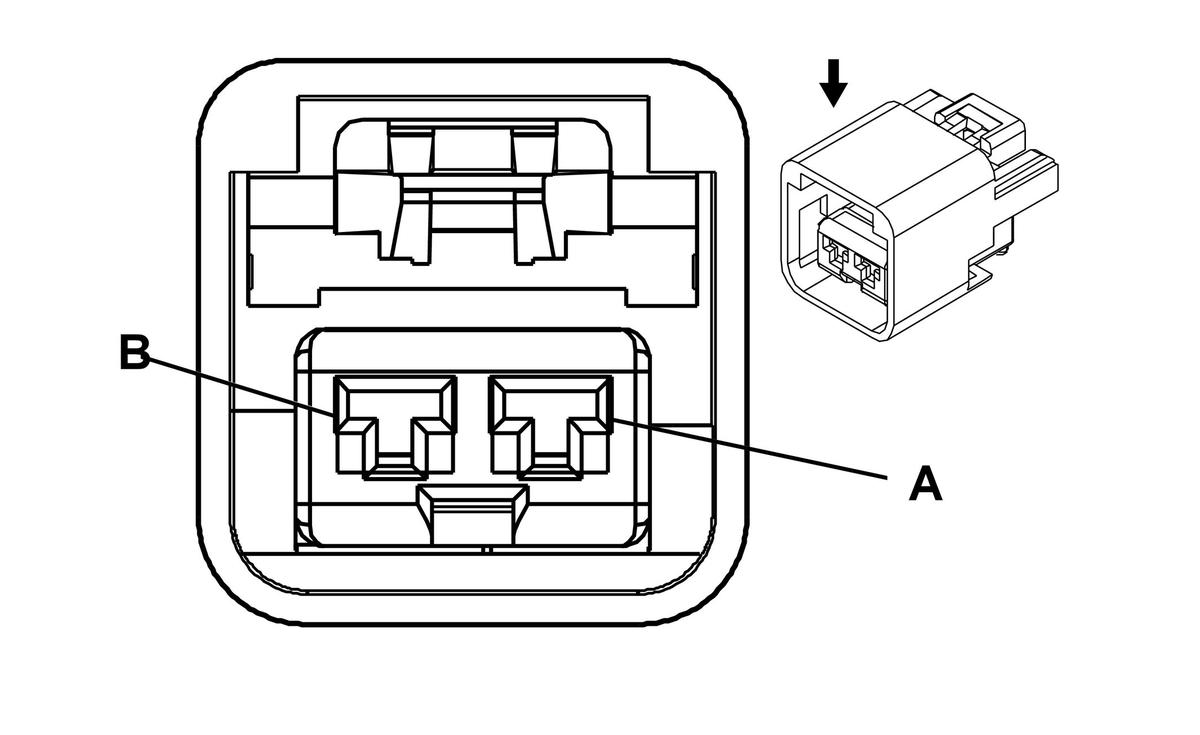

C104 - LF WSS Harness to the Body Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | L-BU | 830 | Left Front Wheel Speed Sensor Signal | A | L-BU | 830 | Left Front Wheel Speed Sensor Signal |
| B | YE | 873 | Left Front Wheel Speed Sensor Low Reference | B | YE | 873 | Left Front Wheel Speed Sensor Low Reference |
C105 - RF WSS Harness to the Body Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | TN | 833 | Right Front Wheel Speed Sensor Low Reference | A | TN | 833 | Right Front Wheel Speed Sensor Low Reference |
| B | D-GN | 872 | Right Front Wheel Speed Sensor Signal | B | D-GN | 872 | Right Front Wheel Speed Sensor Signal |
C106 - Body Harness to the Forward Lamp Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | L-GN/BK | 735 | Ambient Air Temperature Sensor Signal | A | L-GN/BK | 735 | Ambient Air Temperature Sensor Signal |
| B | GY | 720 | Low Reference | B | GY | 720 | Low Reference |
| C | D-BU | 473 | High Speed Cooling Fan Relay Control (L66) | C | D-BU | 473 | High Speed Cooling Fan Relay Control (L66) |
C150 - Engine Harness to the Fuel Injector Harness (L61)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BK | 1744 | Fuel Injector 1 Control | A | BK | 1744 | Fuel Injector 1 Control |
| B | L-GN/BK | 1745 | Fuel Injector 2 Control | B | L-GN/BK | 1745 | Fuel Injector 2 Control |
| C | PK/BK | 1746 | Fuel Injector 3 Control | C | PK/BK | 1746 | Fuel Injector 3 Control |
| D | L-BU/BK | 844 | Fuel Injector 4 Control | D | L-BU/BK | 844 | Fuel Injector 4 Control |
| E | PK | 39 | Ignition 1 Voltage | E | PK | 39 | Ignition 1 Voltage |
| F | OG/BK | 469 | Low Reference | F | OG/BK | 469 | Low Reference |
| G | L-GN | 432 | MAP Sensor Signal | G | L-GN | 432 | MAP Sensor Signal |
| H | GY | 2704 | 5-Volt Reference B | H | GY | 2704 | 5-Volt Reference B |

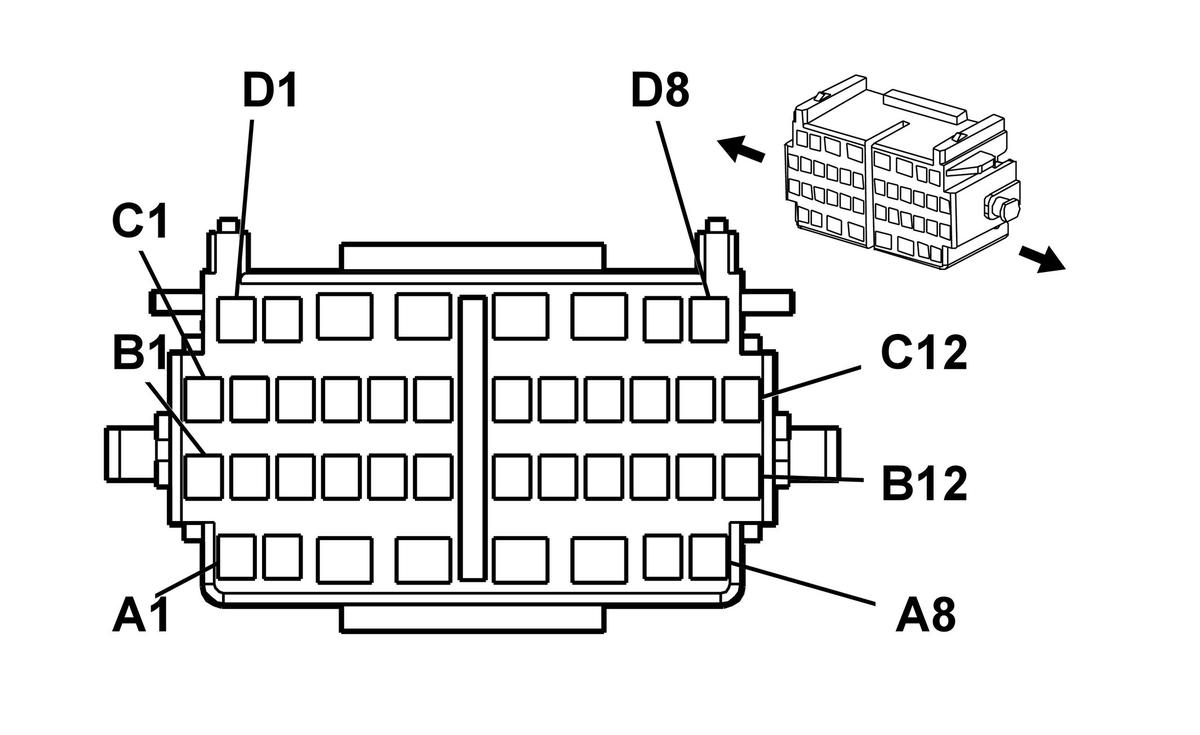

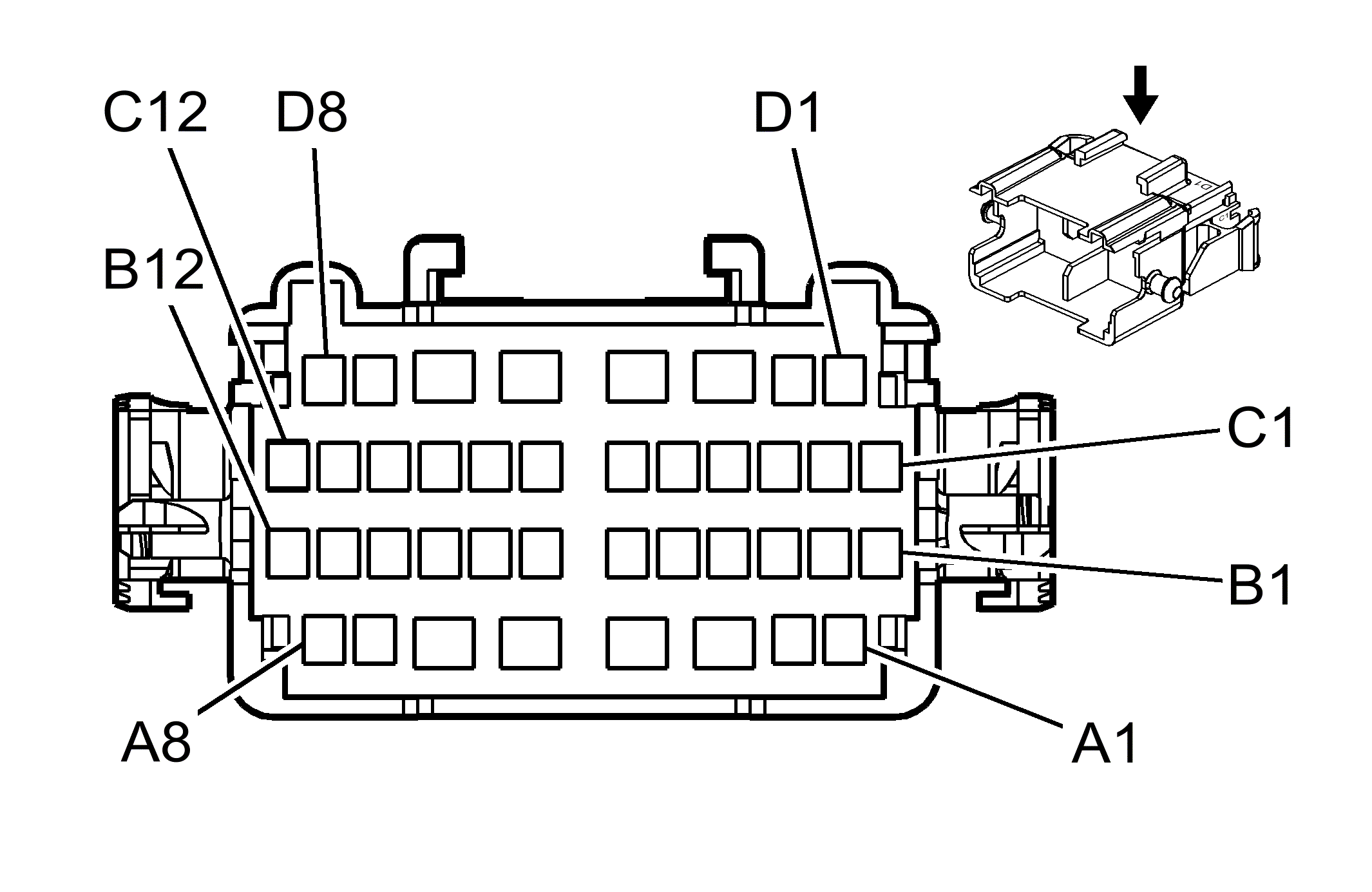

C200 - I/P Harness to the Body Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A1 | L-BU | 115 | Right Rear Speaker Output (-) | A1 | L-BU | 115 | Right Rear Speaker Output (-) |
| A2 | D-BU | 46 | Right Rear Speaker Output (+) | A2 | D-BU | 46 | Right Rear Speaker Output (+) |
| A3 | YE | 343 | Accessory Voltage | A3 | YE | 343 | Accessory Voltage |
| A4 | YE | 5 | Crank Voltage (A/T) | A4 | YE | 5 | Crank Voltage (A/T) |
| PU | 6 | Starter Solenoid Crank Voltage (M/T) | YE | 6 | Starter Solenoid Crank Voltage (M/T) | ||
| A5 | OG | 40 | Battery Positive Voltage | A5 | OG | 40 | Battery Positive Voltage |
| A6 | D-GN | 95 | Windshield Wiper Motor Low Speed | A6 | D-GN | 95 | Windshield Wiper Motor Low Speed |
| A7 | - | - | Not Used | A7 | - | - | Not Used |
| A8 | PU | 719 | Low Reference | A8 | PU | 719 | Low Reference |
| B1 | GY | 118 | Left Front Speaker Output (-) | B1 | GY | 118 | Left Front Speaker Output (-) |
| B2 | TN | 201 | Left Front Speaker Output (+) | B2 | TN | 201 | Left Front Speaker Output (+) |
| B3 | YE | 116 | Left Rear Speaker Output (-) | B3 | YE | 116 | Left Rear Speaker Output (-) |
| B4 | OG | 540 | Battery Positive Voltage | B4 | OG | 540 | Battery Positive Voltage |
| B5 | OG | 340 | Battery Positive Voltage | B5 | OG | 340 | Battery Positive Voltage |
| B6 | GY/BK | 87 | Cruise Control Resume/Accel Switch Signal | B6 | GY/BK | 87 | Cruise Control Resume/Accel Switch Signal |
| B7 | GY | 731 | Evaporator Temperature Sensor Signal | B7 | GY | 731 | Evaporator Temperature Sensor Signal |
| B8 | GY | 397 | Cruise Control On Switch Signal | B8 | GY | 397 | Cruise Control On Switch Signal |
| B9 | L-GN | 200 | Right Front Speaker Output (+) | B9 | L-GN | 200 | Right Front Speaker Output (+) |
| B10 | PU | 1272 | Low Reference | B10 | PU | 1272 | Low Reference |
| B11 | TN | 1274 | 5-Volt Reference | B11 | TN | 1274 | 5-Volt Reference |
| B12 | D-BU | 1161 | APP Sensor 1 Signal | B12 | D-BU | 1161 | APP Sensor 1 Signal |
| C1 | D-GN | 117 | Right Front Speaker Output (-) | C1 | D-GN | 117 | Right Front Speaker Output (-) |
| C2 | D-BU | 84 | Cruise Control Set/Coast Switch Signal | C2 | D-BU | 84 | Cruise Control Set/Coast Switch Signal |
| C3 | BN | 199 | Left Rear Speaker Output (+) | C3 | BN | 199 | Left Rear Speaker Output (+) |
| C4 | OG | 360 | Amplifier Control (WBM) | C4 | OG | 360 | Amplifier Control (WBM) |
| C5 | L-GN | 1011 | Amplifier Mute (WBM) | C5 | L-GN | 1011 | Amplifier Mute (WBM) |
| C6 | PU | 420 | Brake Switch Signal | C6 | PU | 420 | Brake Switch Signal |
| C7 | BN/WH | 2960 | Keyword Serial Data | C7 | BN/WH | 2960 | Keyword Serial Data |
| C8 | - | - | Not Used | C8 | - | - | Not Used |
| C9 | L-BU | 20 | Stop Lamp Switch Signal | C9 | L-BU | 20 | Stop Lamp Switch Signal |
| C10 | WH/BK | 1164 | 5-Volt Reference | C10 | WH/BK | 1164 | 5-Volt Reference |
| C11 | BN | 1271 | Low Reference | C11 | BN | 1271 | Low Reference |
| C12 | L-BU | 1162 | APP Sensor 2 Signal | C12 | L-BU | 1162 | APP Sensor 2 Signal |
| D1 | TN | 2501 | CAN Low | D1 | TN | 2501 | CAN Low |
| D2 | TN/WH | 2500 | CAN High | D2 | TN/WH | 2500 | CAN High |
| D3 | PU | 92 | Windshield Wiper Motor High Speed | D3 | PU | 92 | Windshield Wiper Motor High Speed |
| D4 | L-BU | 97 | Windshield Wiper Switch Mist/Off/Low Signal | D4 | L-BU | 97 | Windshield Wiper Switch Mist/Off/Low Signal |
| D5 | OG | 40 | Battery Positive Voltage | D5 | OG | 40 | Battery Positive Voltage |
| D6 | OG | 1140 | Battery Positive Voltage | D6 | OG | 1140 | Battery Positive Voltage |
| D7 | OG/BK | 1445 | Front Wiper Relay Control | D7 | OG/BK | 1445 | Front Wiper Relay Control |
| D8 | WH/BK | 5043 | Keyword Serial Data (JM4) | D8 | WH/BK | 5043 | Keyword Serial Data (JM4) |
C201 - Auxiliary Outlet Harness to the I/P Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | OG | 340 | Battery Positive Voltage | A | OG | 340 | Battery Positive Voltage |
| OG | 340 | Battery Positive Voltage | |||||
| B | BK | 550 | Ground | B | BK | 550 | Ground |

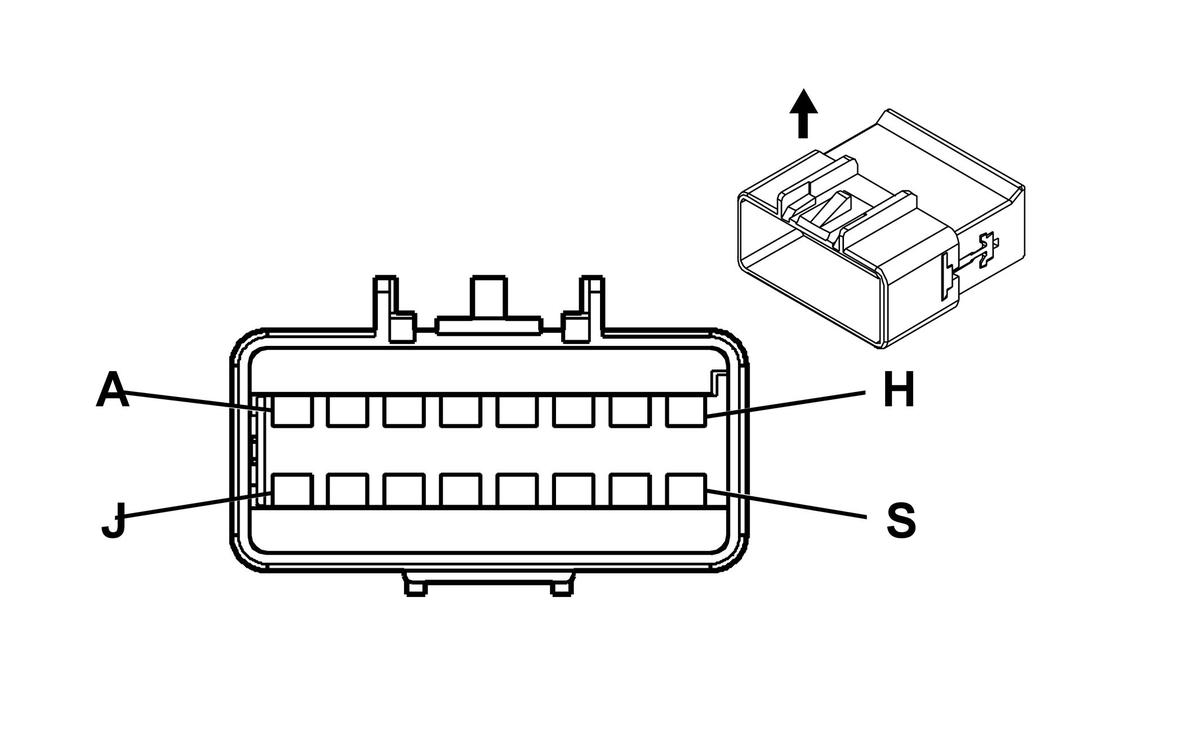

C202 - I/P Harness to the HVAC Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | PU/WH | 3361 | Defrost Mode Valve Solenoid Control B | A | PU/WH | 3361 | Defrost Mode Valve Solenoid Control B |
| B | RD | 362 | Upper Mode Valve Solenoid Control A | B | RD | 362 | Upper Mode Valve Solenoid Control A |
| C | PU | 361 | Defrost Mode Valve Solenoid Control A | C | PU | 361 | Defrost Mode Valve Solenoid Control A |
| D | PK/WH | 1648 | Recirculation Door Control B | D | PK/WH | 1648 | Recirculation Door Control B |
| E | L-GN/BK | 1647 | Recirculation Door Control A | E | L-GN/BK | 1647 | Recirculation Door Control A |
| F | BK | 407 | Low Reference | F | BK | 407 | Low Reference |
| G | RD | 708 | Mode Door Position Signal | G | RD | 708 | Mode Door Position Signal |
| H | YE/BK | 1814 | Lower Mode Door Position Signal | H | YE/BK | 1814 | Lower Mode Door Position Signal |
| J | YE/BK | 713 | Defrost Mode Valve Position Sensor Signal | J | YE/BK | 713 | Defrost Mode Valve Position Sensor Signal |
| K | OG/WH | 3362 | Upper Mode Valve Solenoid Control B | K | OG/WH | 3362 | Upper Mode Valve Solenoid Control B |
| L | L-GN/WH | 366 | Lower Mode Valve Solenoid Control A | L | L-GN/WH | 366 | Lower Mode Valve Solenoid Control A |
| M | L-GN/BK | 3366 | Lower Mode Valve Solenoid Control B | M | L-GN/BK | 3366 | Lower Mode Valve Solenoid Control B |
| N | GY | 705 | 5-Volt Reference | N | GY | 705 | 5-Volt Reference |
| P | D-DU | 1199 | Air Temperature Door Control - Hot | P | D-DU | 1199 | Air Temperature Door Control - Hot |
| R | L-GN | 2210 | Air Temperature Door Control - Cold | R | L-GN | 2210 | Air Temperature Door Control - Cold |
| S | L-BU | 733 | Air Temperature Door Position Signal | S | L-BU | 733 | Air Temperature Door Position Signal |
C203 - Inflatable Restraint I/P Module Jumper Harness to the I/P Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A1 | YE | 3025 | I/P Module - Stage 1 - High Control | A1 | YE | 3025 | I/P Module - Stage 1 - High Control |
| A2 | OG | 3024 | I/P Module - Stage 1 - Low Control | A2 | OG | 3024 | I/P Module - Stage 1 - Low Control |
| B1 | GY | 3027 | I/P Module - Stage 2 - High Control | B1 | GY | 3027 | I/P Module - Stage 2 - High Control |
| B2 | PU | 3026 | I/P Module - Stage 2 - Low Control | B2 | PU | 3026 | I/P Module - Stage 2 - Low Control |
C204 - I/P Harness to the Body Harness (U2K)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | D-GN | 5060 | Low Speed GM LAN Serial Data | A | D-GN | 5060 | Low Speed GM LAN Serial Data |
| B | D-GN/WH | 368 | Right Audio Signal (+) | B | D-GN/WH | 368 | Right Audio Signal (+) |
| C | BN/WH | 367 | Left Audio Signal (+) | C | BN/WH | 367 | Left Audio Signal (+) |
| D | BK/WH | 372 | Audio Common | D | BK/WH | 372 | Audio Common |
| E | BK/WH | 151 | Ground | E | BK/WH | 151 | Ground |
| F | OG | 2140 | Battery Positive Voltage | F | OG | 2140 | Battery Positive Voltage |
C300 - Body Harness to the Headliner Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | WH | 156 | Courtesy Lamp Switch Signal | A | WH | 156 | Courtesy Lamp Switch Signal |
| B | BK | 750 | Ground | B | BK | 750 | Ground |
| C | OG | 1732 | Courtesy Lamps Supply Voltage | C | OG | 1732 | Courtesy Lamps Supply Voltage |
| D | YE | 43 | Ignition 1 Voltage | D | YE | 43 | Ignition 1 Voltage |
| E | OG | 580 | Accessory Voltage (CF5) | E | OG | 580 | Accessory Voltage (CF5) |
| F | L-GN | 24 | Backup Lamp Supply Voltage | F | L-GN | 24 | Backup Lamp Supply Voltage |
| G | GY | 157 | Courtesy Lamps Control | G | GY | 157 | Courtesy Lamps Control |
| H | BK | 750 | Ground (CF5) | H | BK | 750 | Ground (CF5) |
| J | L-GN/BK | 735 | Ambient Air Temperature Sensor Signal | J | L-GN/BK | 735 | Ambient Air Temperature Sensor Signal |
| K | GY | 720 | Low Reference | K | GY | 720 | Low Reference |
C302 - Headliner Harness to the Sunroof Harness (CF5)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BN | 100 | Sunroof Switch Open Signal | A | BN | 100 | Sunroof Switch Open Signal |
| B | D-GN | 2074 | Sunroof Switch Express Signal | B | D-GN | 2074 | Sunroof Switch Express Signal |
| C | OG/BK | 144 | Sunroof Switch Open Vent Signal | C | OG/BK | 144 | Sunroof Switch Open Vent Signal |
| D | D-BU | 128 | Low Reference | D | D-BU | 128 | Low Reference |
| E | OG | 580 | Accessory Voltage | E | OG | 580 | Accessory Voltage |
| F | BK | 750 | Ground | F | BK | 750 | Ground |
| G-H | - | - | Not Used | G-H | - | - | Not Used |
C303 - Headliner Harness to the I/P Harness (UE1)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | YE/BK | 2516 | Keypad Green LED Signal | A | YE/BK | 2516 | Keypad Green LED Signal |
| B | L-GN/BK | 2515 | Keypad Supply Signal | B | L-GN/BK | 2515 | Keypad Supply Signal |
| C | D-GN/WH | 2514 | Keypad Signal | C | D-GN/WH | 2514 | Keypad Signal |
| D | BN/WH | 2517 | Keypad Red LED Signal | D | BN/WH | 2517 | Keypad Red LED Signal |
| E | GY | 655 | Cellular Microphone Signal | E | GY | 655 | Cellular Microphone Signal |
| F | BARE | 654 | Cellular Microphone Low Reference | F | BARE | 654 | Cellular Microphone Low Reference |
| G-H | - | - | Not Used | G-H | - | - | Not Used |

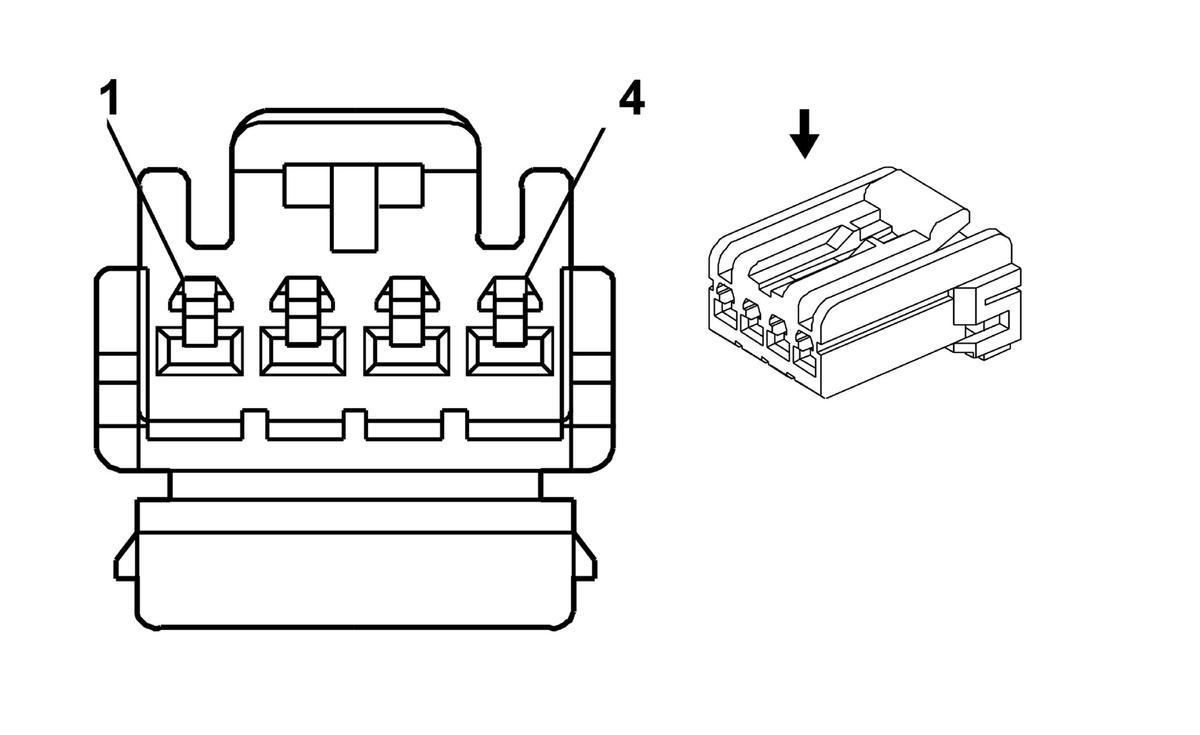

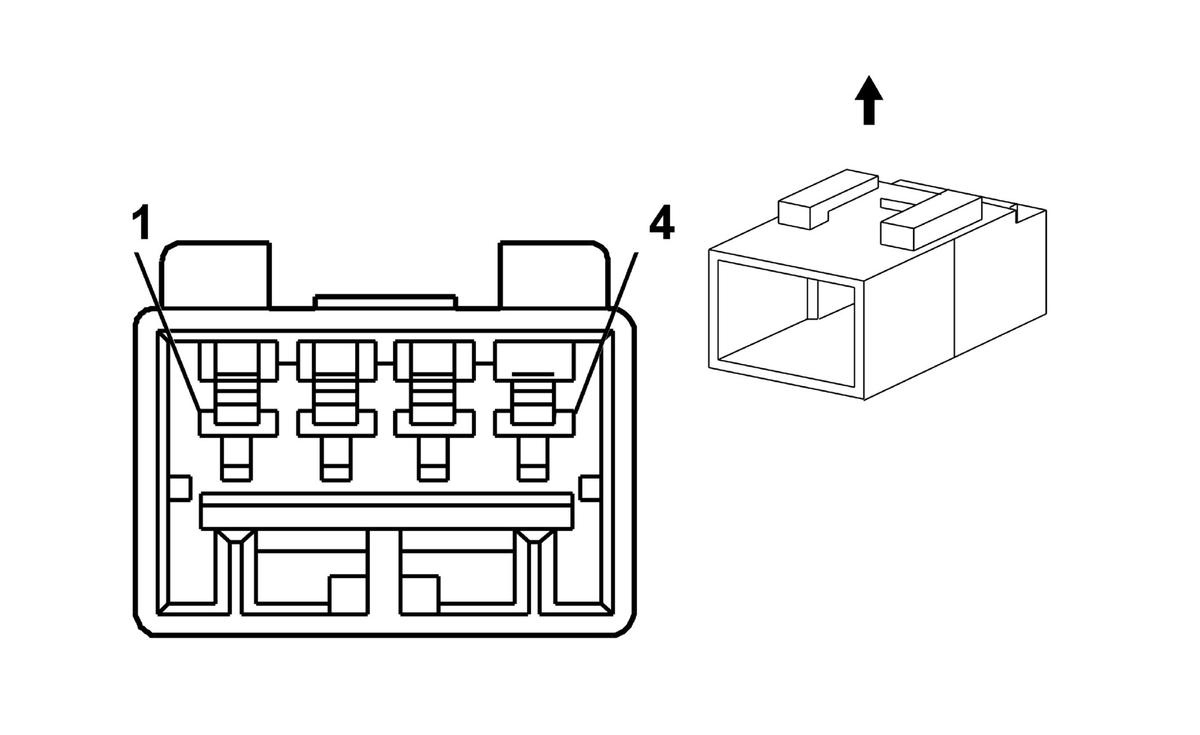

C304 - Shifter Assembly Harness to the I/P Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | WH | 816 | A/T Shift Lock Solenoid Supply Voltage | 1 | TN/WH | 816 | A/T Shift Lock Solenoid Supply Voltage |
| 2 | PK | 139 | Ignition 1 Voltage | 2 | PK | 139 | Ignition 1 Voltage |
| 3 | GY | 8 | Instrument Panel Lamp Supply Voltage | 3 | GY | 8 | Instrument Panel Lamp Supply Voltage |
| 4 | BK | 550 | Ground | 4 | BK | 550 | Ground |
C305 - Driver Seat Harness to the Body Harness (AG1/KA1)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | OG | 1540 | Battery Positive Voltage | A | OG | 1540 | Battery Positive Voltage |
| B | L-BU | 1462 | Heated Seat Switch Signal | B | L-BU | 1462 | Heated Seat Switch Signal |
| C | PK | 1501 | Driver Heated Seat High/Low Signal | C | PK | 1501 | Driver Heated Seat High/Low Signal |
| D | BK | 650 | Ground | D | BK | 650 | Ground |
| E | OG | 1240 | Battery Positive Voltage | E | OG | 1240 | Battery Positive Voltage |
| F | BK | 650 | Ground | F | BK | 650 | Ground |
C306 - Body Harness to the Passenger Seat Harness (AG1/KA1)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | OG | 1540 | Battery Positive Voltage | A | OG | 1540 | Battery Positive Voltage |
| B | L-BU/BK | 1505 | Heated Seat Switch Signal | B | L-BU | 1505 | Heated Seat Switch Signal |
| C | PK/BK | 1503 | Passenger Heated Seat High/Low Signal | C | PK | 1503 | Passenger Heated Seat High/Low Signal |
| D | BK | 650 | Ground | D | BK | 650 | Ground |

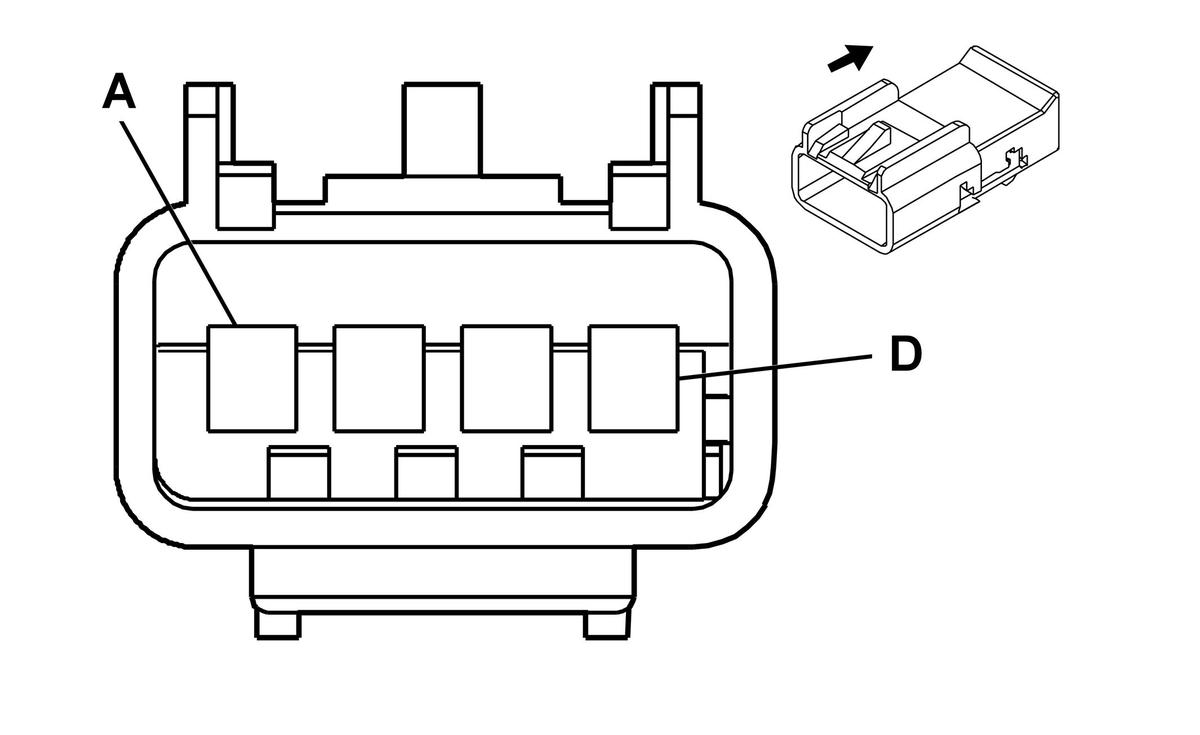

C307 - Roof Rail Module Harness to the I/P Harness (ASF)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | YE | 2131 | Left SIS Module Voltage | A | YE | 2131 | Left SIS Module Voltage |
| B | WH | 2132 | Left SIS Module Signal | B | WH | 2132 | Left SIS Module Signal |
| C | TN | 2133 | Right SIS Module Voltage | C | TN | 2133 | Right SIS Module Voltage |
| D | D-GN | 2134 | Right SIS Module Signal | D | D-GN | 2134 | Right SIS Module Signal |
C308 - Roof Rail Module Harness to the I/P Harness (ASF)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A1 | BK/WH | 2135 | RF Side Impact Module High Control | A1 | BK/WH | 2135 | RF Side Impact Module High Control |
| A2 | L-GN | 2136 | RF Side Impact Module Low Control | A2 | L-GN | 2136 | RF Side Impact Module Low Control |
| B1 | BN | 2137 | LF Side Impact Module High Control | B1 | BN | 2137 | LF Side Impact Module High Control |
| B2 | YE/BK | 2138 | LF Side Impact Module Low Control | B2 | YE/BK | 2138 | LF Side Impact Module Low Control |
C309 - Body Harness to the Left Seat Belt Pretensioner Jumper Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | TN/WH | 2118 | Left Seat Belt Pretesnioner Control - High | A | - | 2118 | Left Seat Belt Pretesnioner Control - High |
| B | OG/BK | 2119 | Left Seat Belt Pretesnioner Control - Low | B | - | 2119 | Left Seat Belt Pretesnioner Control - Low |
C310 - Body Harness to the Right Seat Belt Pretensioner Jumper Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | L-GN | 2116 | Right Seat Belt Pretesnioner Control - High | A | - | 2116 | Right Seat Belt Pretesnioner Control - High |
| B | OG | 2117 | Right Seat Belt Pretesnioner Control - Low | B | - | 2117 | Right Seat Belt Pretesnioner Control - Low |
C311 - I/P Harness to the Body Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | TN/WH | 2118 | Left Seat Belt Pretesnioner Control - High | A | TN/WH | 2118 | Left Seat Belt Pretesnioner Control - High |
| B | OG/BK | 2119 | Left Seat Belt Pretesnioner Control - Low | B | OG/BK | 2119 | Left Seat Belt Pretesnioner Control - Low |
| C-D | - | - | Not Used | C-D | - | - | Not Used |
| E | L-GN | 2116 | Right Seat Belt Pretesnioner Control - High | E | L-GN | 2116 | Right Seat Belt Pretesnioner Control - High |
| F | OG | 2117 | Right Seat Belt Pretesnioner Control - Low | F | OG | 2117 | Right Seat Belt Pretesnioner Control - Low |
C312 - Front Passenger Seat Harness to the I/P Harness (ASF w/o HEG)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | OG | 2540 | Battery Positive Voltage | A | OG | 2540 | Battery Positive Voltage |
| B | PK | 539 | Ignition 1 Voltage | B | PK | 539 | Ignition 1 Voltage |
| C | D-BU | 2307 | Passenger Air Bag On Indicator Control | C | D-BU | 2307 | Passenger Air Bag On Indicator Control |
| D | D-GN | 2308 | Passenegr Air Bag Off Indicator Control | D | D-GN | 2308 | Passenegr Air Bag Off Indicator Control |
| E | PK | 2306 | Passenger Pressense System Signal | E | PK | 2306 | Passenger Pressense System Signal |
| F | BK/WH | 151 | Ground | F | BK/WH | 151 | Ground |
| G-H | - | - | Not Used | G-H | - | - | Not Used |
| J | RD | 1362 | Right Seat Belt Switch Signal | J | RD | 1362 | Right Seat Belt Switch Signal |
| K | BK/WH | 151 | Ground | K | BK/WH | 151 | Ground |
C313 - Front Passenger Heated Seat Harness to the Front Passenger Seat Harness (ASF w/o HEG)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | OG | 1540 | Battery Positive Voltage | A | OG | 1540 | Battery Positive Voltage |
| B | - | - | Not Used | B | - | - | Not Used |
C400 - Body Harness to the Left Tail Lamp Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | YE | 18 | Left Rear Stop/Turn Lamp Supply Voltage | A | D-BU | 18 | Left Rear Stop/Turn Lamp Supply Voltage |
| B | BN | 9 | Park Lamp Supply Voltage | B | BN | 9 | Park Lamp Supply Voltage |
| C | BK | 750 | Ground | C | BK | 750 | Ground |
| D | L-GN | 24 | Backup Lamp Switch Signal | D | L-GN | 24 | Backup Lamp Switch Signal |
| E | - | - | Not Used | E | - | - | Not Used |
| F | L-BU | 20 | Stop Lamp Switch Signal | F | L-BU | 20 | Stop Lamp Switch Signal |
C401 - Body Harness to the Right Tail Lamp Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | D-GN | 19 | Right Rear Stop/Turn Lamp Supply Voltage | A | D-BU | 19 | Right Rear Stop/Turn Lamp Supply Voltage |
| B | BN | 9 | Park Lamp Supply Voltage | B | BN | 9 | Park Lamp Supply Voltage |
| C | BK | 850 | Ground | C | BK | 850 | Ground |
| D | L-GN | 24 | Backup Lamp Switch Signal | D | L-GN | 24 | Backup Lamp Switch Signal |
| E | - | - | Not Used | E | - | - | Not Used |
| F | L-BU | 20 | Stop Lamp Switch Signal | F | L-BU | 20 | Stop Lamp Switch Signal |
C402 - Liftgate Harness to the Body Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BN | 9 | Park Lamp Supply Voltage | A | BN | 9 | Park Lamp Supply Voltage |
| B | OG | 1732 | Courtesy Lamps Supply Voltage | B | OG | 1732 | Courtesy Lamps Supply Voltage |
| C | L-BU | 20 | Stop Lamp Switch Signal | C | L-BU | 20 | Stop Lamp Switch Signal |
| D | GY | 295 | Door Lock Actuator Lock Control | D | GY | 295 | Door Lock Actuator Lock Control |
| E | TN | 294 | Door Lock Actuator Unlock Control | E | TN | 294 | Door Lock Actuator Unlock Control |
| F | YE | 143 | Accessory Voltage | F | YE | 143 | Accessory Voltage |
| G | WH | 393 | Rear Window Wiper Motor Control | G | WH | 393 | Rear Window Wiper Motor Control |
| H | BK | 650 | Ground | H | BK | 650 | Ground |
| J | GY | 157 | Courtesy Lamp Control | J | GY | 157 | Courtesy Lamp Control |
| K | RD/BK | 744 | Liftgate Ajar Switch Signal | K | RD/BK | 744 | Liftgate Ajar Switch Signal |
C403 - Liftgate Harness to the Body Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BK | 293 | Rear Defog Element Supply Voltage | A | PU | 293 | Rear Defog Element Supply Voltage |
| B | BK | 750 | Ground | B | BK | 750 | Ground |
C404 - Body Harness to the Rear WSS Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BN | 882 | RR WSS Signal | A | BN | 882 | RR WSS Signal |
| B | WH | 883 | RR WSS Low Reference | B | WH | 883 | RR WSS Low Reference |
| C | BK | 884 | LR WSS Signal | C | BK | 884 | LR WSS Signal |
| D | RD | 885 | LR WSS Low Reference | D | RD | 885 | LR WSS Low Reference |
C405 - License Lamp Harness to the Liftgate Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BK | 650 | Ground | A | BK | 650 | Ground |
| B | WH | 9 | Park Lamp Supply Voltage | B | BN | 9 | Park Lamp Supply Voltage |
C406 - Body Harness to the Fuel Tank Harness
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | GY | 120 | Fuel Pump Supply Voltage | A | GY | 120 | Fuel Pump Supply Voltage |
| B | BK | 850 | Ground | B | BK | 850 | Ground |
| C | PU | 1589 | Fuel Level Sensor Signal | C | PU | 1589 | Fuel Level Sensor Signal |
| D | - | - | Not Used (For Diagnostics) | D | D-BU | 930 | Fuel Level Sensor Signal |
| E | GY | 2709 | 5-Volt Reference | E | GY | 2709 | 5-Volt Reference |
| F | D-GN | 890 | Fuel Tank Pressure Sensor Signal | F | D-GN | 890 | Fuel Tank Pressure Sensor Signal |
| G | BK | 2759 | Low Reference | G | BK | 2759 | Low Reference |
| H | BK | 2759 | Low Reference (L61) | H | BK | 2759 | Low Reference |
| H | BN/WH | 6281 | Low Reference (L66) | ||||
| J | WH | 5291 | Ignition 1 Voltage | J | WH | 5291 | Ignition 1 Voltage |
| K | WH | 1310 | EVAP Canister Vent Solenoid Control | K | WH | 1310 | EVAP Canister Vent Solenoid Control |

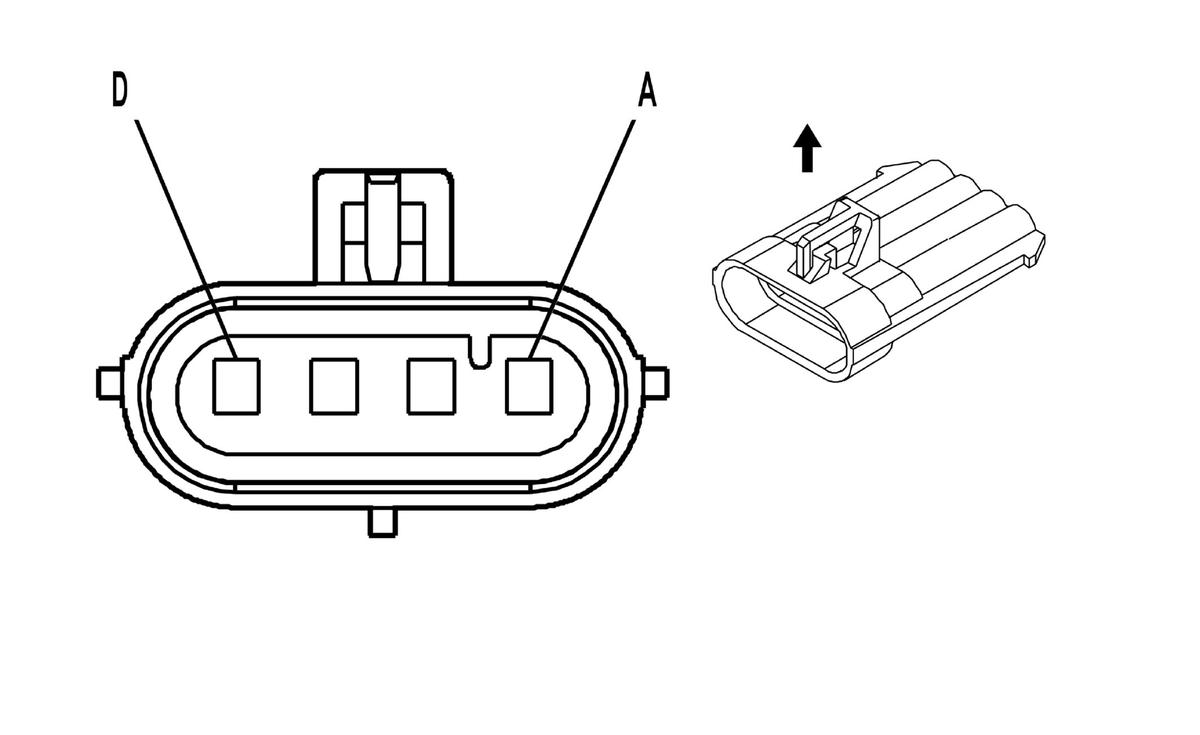

C700 - Body Harness to the LR Door
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | GY | 295 | Door Lock Actuator Lock Control | A | GY | 295 | Door Lock Actuator Lock Control |
| B | TN | 294 | Door Lock Actuator Unlock Control | B | TN | 294 | Door Lock Actuator Unlock Control |
C800 - Body Harness to the RR Door
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | GY | 295 | Door Lock Actuator Lock Control | A | GY | 295 | Door Lock Actuator Lock Control |
| B | TN | 294 | Door Lock Actuator Unlock Control | B | TN | 294 | Door Lock Actuator Unlock Control |
